1.5KE120A Overview

Product belongs to the 1.5KE series. Type: Zener Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.030900 oz Through Hole Mounting-Style This product's Termination-Style is ' Axial ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 175 C operating temperature range for diverse applications 9.5 mm length of the product DO-201AA, DO-27, Axial Operational temperature range: -55°C ~ 175°C (TJ) Through Hole mounting type Versatile General Purpose applications for maximum usability Supplier device package: DO-201 The product's 5.3 mm for precision and accuracy. Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 102V. The Voltage-Breakdown-Min is 114V. No Power-Line-Protection 1000pF @ 1MHz Capacitance-Frequency Power-off control: 1.5 kW Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Breakdown-Voltage: 114 V Clamping-Voltage: 265 V 47 A Peak Surge Current 120 V working voltage Polarity: Unidirectional

1.5KE120A Image

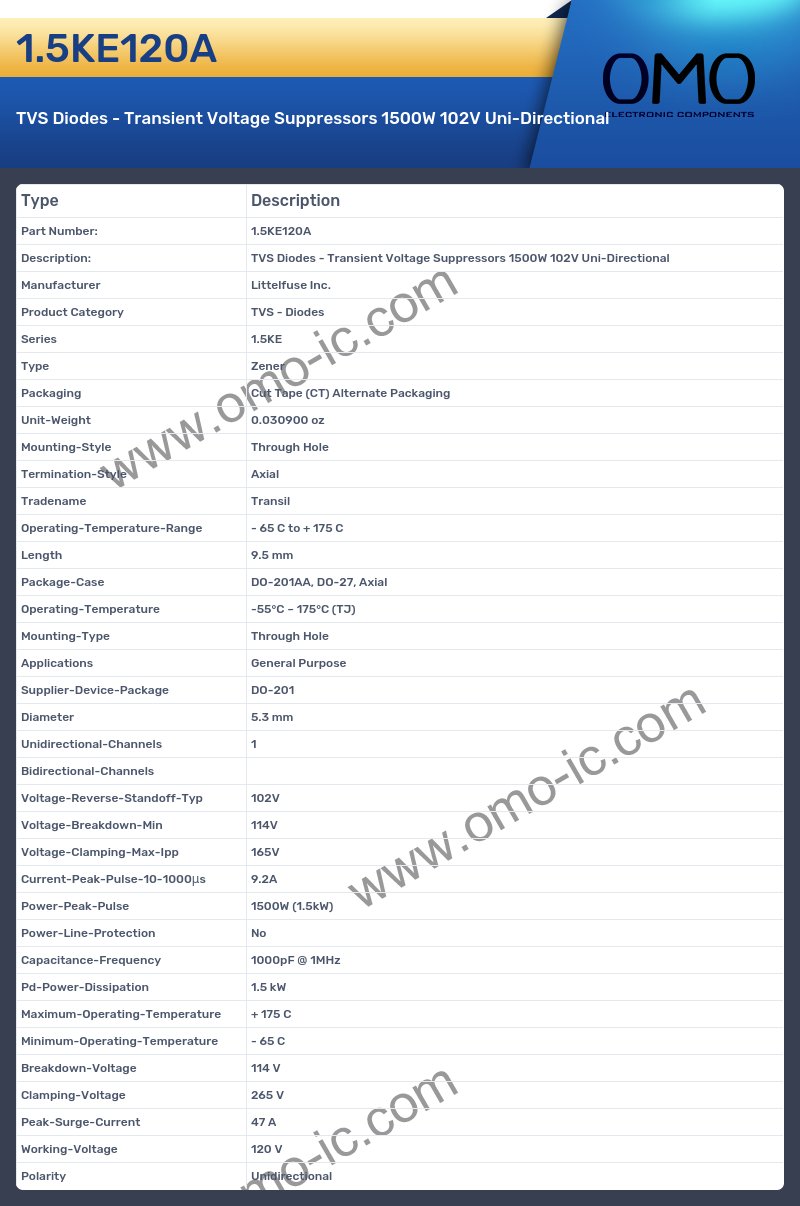

1.5KE120A Specifications

• Manufacturer Littelfuse Inc.
• Product Category TVS - Diodes
• Series 1.5KE
• Type Zener
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.030900 oz
• Mounting-Style Through Hole
• Termination-Style Axial
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 175 C
• Length 9.5 mm
• Package-Case DO-201AA, DO-27, Axial
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Through Hole
• Applications General Purpose
• Supplier-Device-Package DO-201
• Diameter 5.3 mm
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 102V
• Voltage-Breakdown-Min 114V
• Voltage-Clamping-Max-Ipp 165V
• Current-Peak-Pulse-10-1000μs 9.2A
• Power-Peak-Pulse 1500W (1.5kW)
• Power-Line-Protection No
• Capacitance-Frequency 1000pF @ 1MHz
• Pd-Power-Dissipation 1.5 kW
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 114 V
• Clamping-Voltage 265 V
• Peak-Surge-Current 47 A
• Working-Voltage 120 V
• Polarity Unidirectional
