2STN1550 Overview

Product belongs to the 500V Transistors series. Reel is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style SOT-223 Configuration Single Power-off control: 1600 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 50 V The transistor polarity is NPN. The 50 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 5 A Minimum hfe for DC collector-base gain is 100 at 3 A at 2 V 135 at 2 A at 2 V. 100 at 3 A at 2 V of 605.

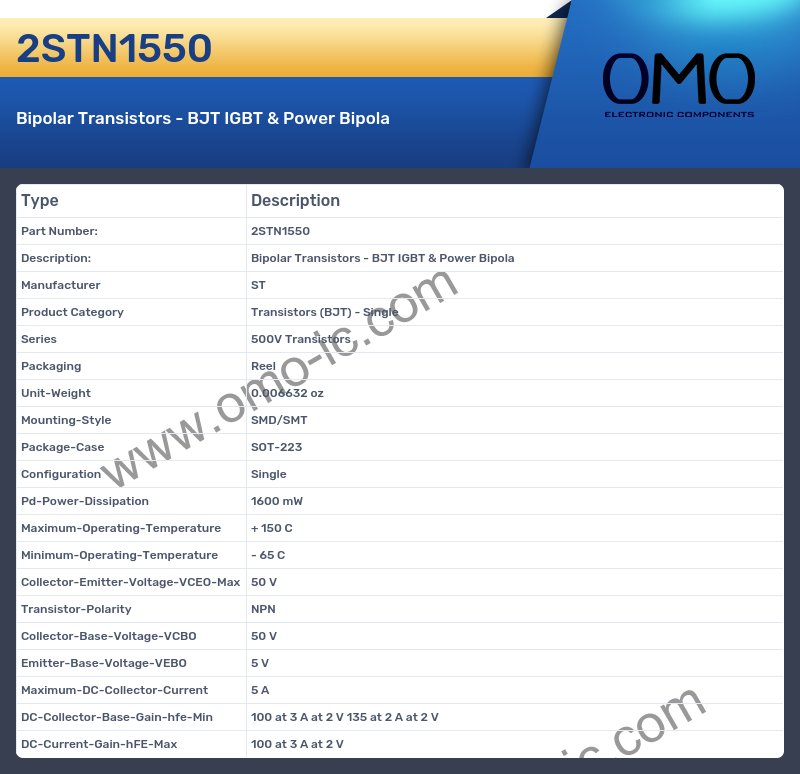

2STN1550 Image

2STN1550 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series 500V Transistors
• Packaging Reel
• Unit-Weight 0.006632 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223
• Configuration Single
• Pd-Power-Dissipation 1600 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 50 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 50 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 5 A
• DC-Collector-Base-Gain-hfe-Min 100 at 3 A at 2 V 135 at 2 A at 2 V
• DC-Current-Gain-hFE-Max 100 at 3 A at 2 V
