AD1380JD

AD1380JD Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-32 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 50 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture Internal is the reference type. The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. Bulk packaging for easy dispensing The height of the product is 5.08 mm. 5 V/10 V, +/- 2.5 V/+/- 5 V/+/- 10 V Input Voltage 43.89 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics +/- 0.1 %FSR is 0.2%. 5 V, 15 V operating supply voltage range 900 mW ADCs - Analog to Digital Converters product type 1 of 100 Data Converter ICs as subcategory

AD1380JD Image

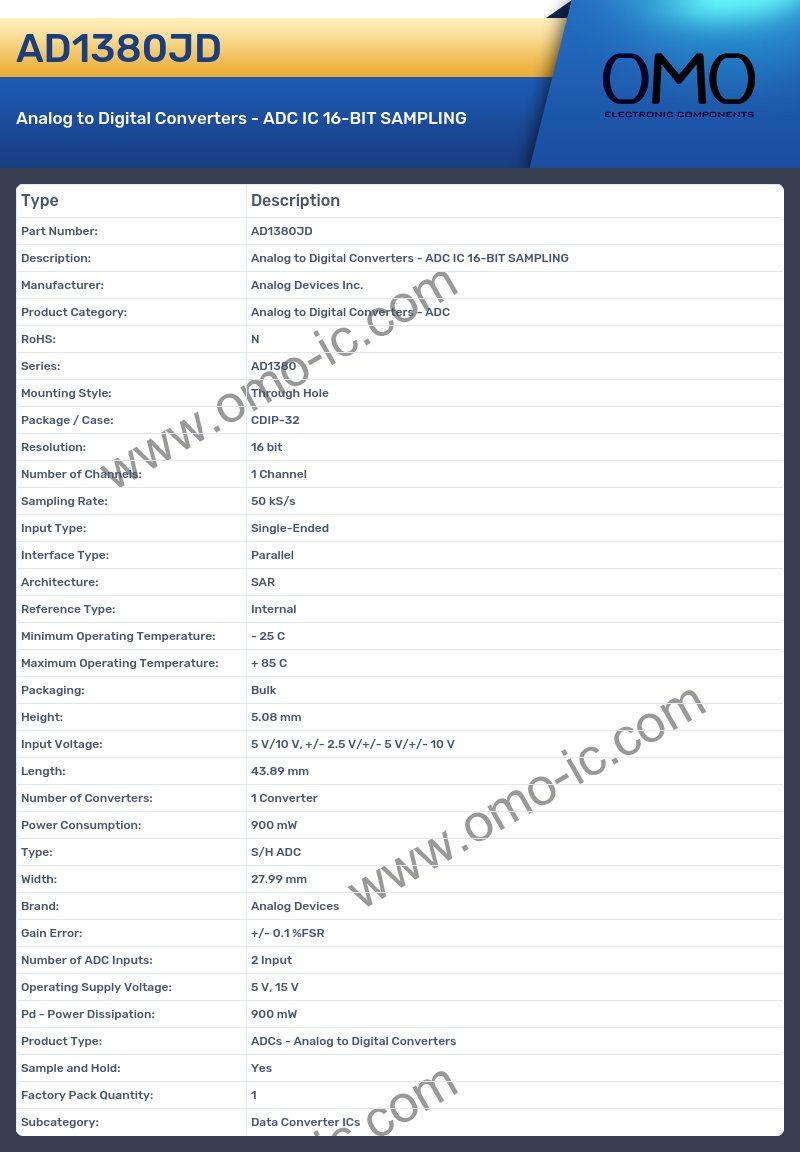

AD1380JD Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: N
• Series: AD1380
• Mounting Style: Through Hole
• Package / Case: CDIP-32
• Resolution: 16 bit
• Number of Channels: 1 Channel
• Sampling Rate: 50 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: Internal
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Packaging: Bulk
• Height: 5.08 mm
• Input Voltage: 5 V/10 V, +/- 2.5 V/+/- 5 V/+/- 10 V
• Length: 43.89 mm
• Number of Converters: 1 Converter
• Power Consumption: 900 mW
• Type: S/H ADC
• Width: 27.99 mm
• Brand: Analog Devices
• Gain Error: +/- 0.1 %FSR
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 5 V, 15 V
• Pd - Power Dissipation: 900 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 1
• Subcategory: Data Converter ICs
