AD558TD/883B

AD558TD/883B Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 200 kS/s. This product is equipped with 1 Channel for efficient performance. 5 us settling time Interface Type: Parallel Supply Voltage - Max: 15.75 V Supply Voltage - Min: 14.25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. CDIP-24 package/case type is utilized by this product. Tube packaging for easy dispensing The output type is Voltage. Digital to Analog Converters This device belongs to the Precision type. R-2R architecture Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.5 LSB 14.25 V to 15.75 V operating supply voltage range 650 mW DACs - Digital to Analog Converters product type 15 of 100 Data Converter ICs as subcategory

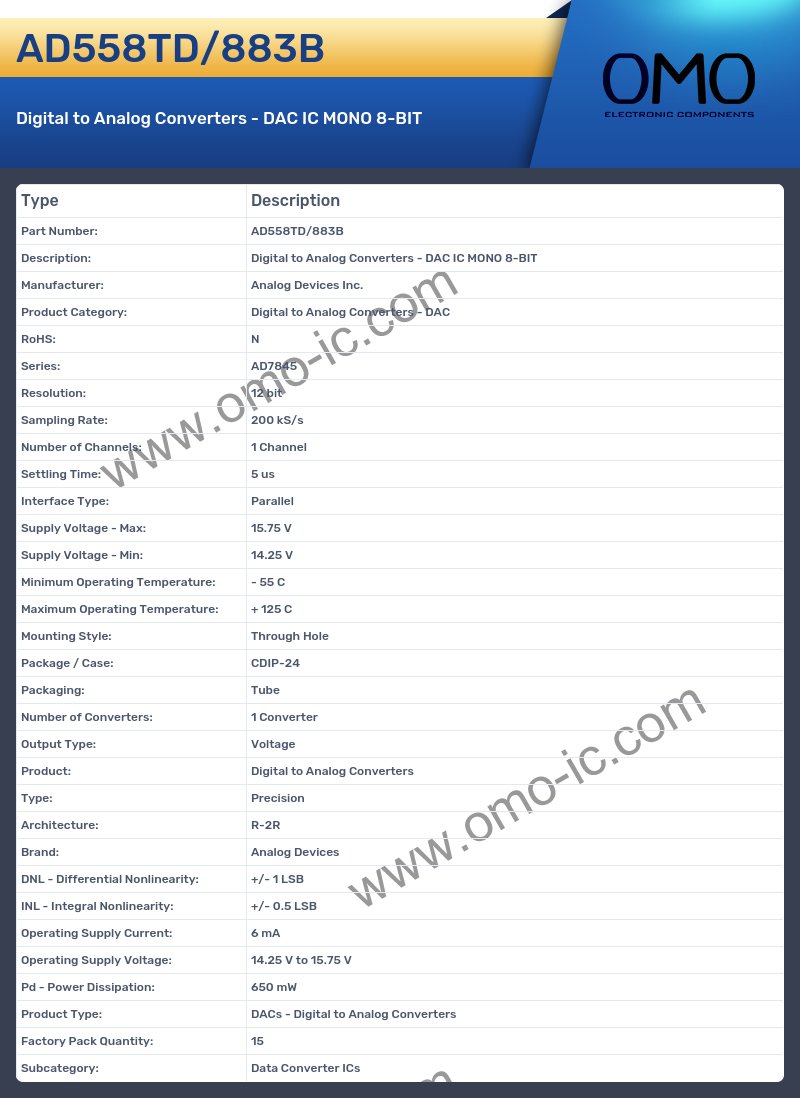

AD558TD/883B Image

AD558TD/883B Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7845
• Resolution: 12 bit
• Sampling Rate: 200 kS/s
• Number of Channels: 1 Channel
• Settling Time: 5 us
• Interface Type: Parallel
• Supply Voltage - Max: 15.75 V
• Supply Voltage - Min: 14.25 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: CDIP-24
• Packaging: Tube
• Number of Converters: 1 Converter
• Output Type: Voltage
• Product: Digital to Analog Converters
• Type: Precision
• Architecture: R-2R
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Operating Supply Current: 6 mA
• Operating Supply Voltage: 14.25 V to 15.75 V
• Pd - Power Dissipation: 650 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 15
• Subcategory: Data Converter ICs
