AD7380BCPZ-RL

AD7380BCPZ-RL Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-16 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. The sampling rate of this product is 4 MS/s. Differential input type Interface Type: Serial SAR architecture Internal is the reference type. This product requires an 3 V to 3.6 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Analog to Digital Converters This device belongs to the Simultaneous Sampling type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. EVAL-AD7380FMCZ is a versatile development platform for hardware and software The 1 LSB, ensuring accurate and precise analog-to-digital conversion. 0.002 %/FS is 0.2%. INL is within 2 LSB 10 mW ADCs - Analog to Digital Converters product type 5000 of 100 Data Converter ICs as subcategory THD is as low as - 113 dB.

AD7380BCPZ-RL Image

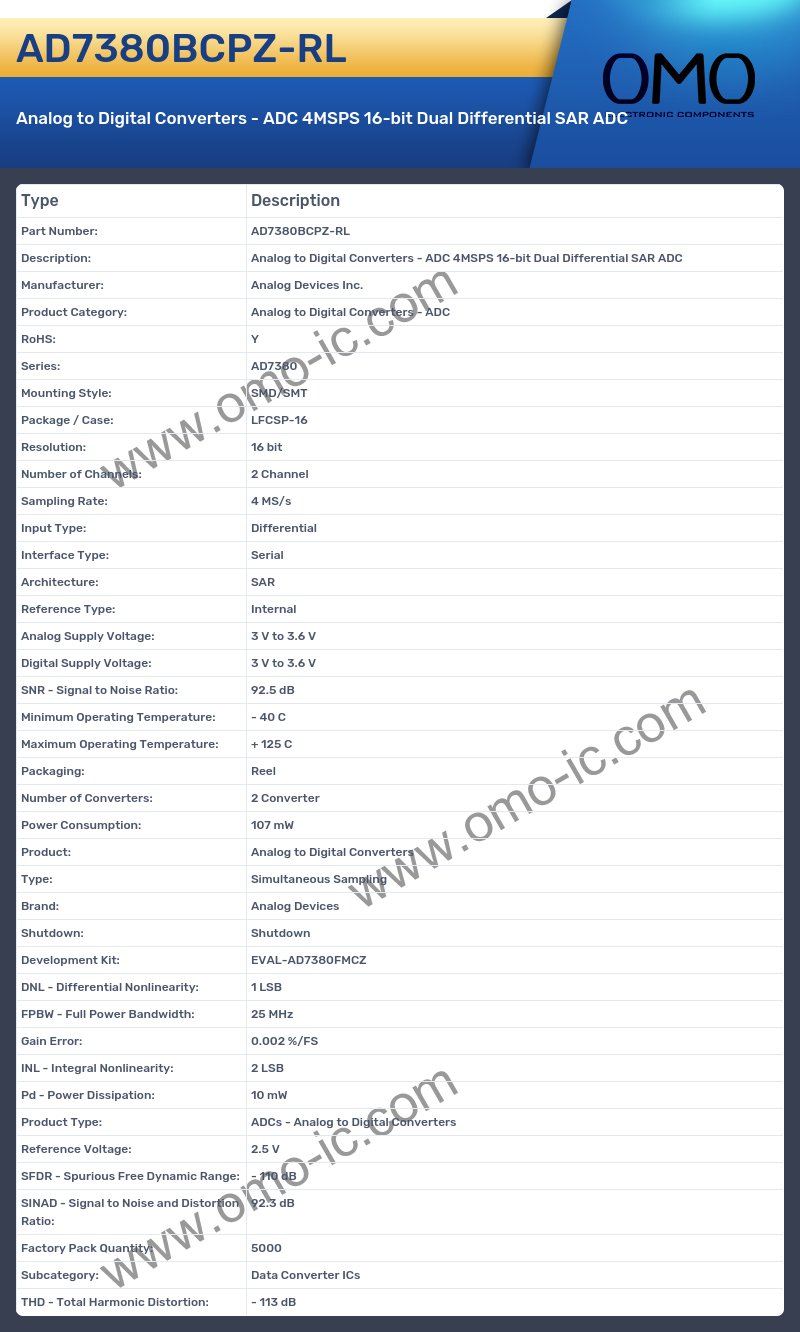

AD7380BCPZ-RL Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7380
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-16
• Resolution: 16 bit
• Number of Channels: 2 Channel
• Sampling Rate: 4 MS/s
• Input Type: Differential
• Interface Type: Serial
• Architecture: SAR
• Reference Type: Internal
• Analog Supply Voltage: 3 V to 3.6 V
• Digital Supply Voltage: 3 V to 3.6 V
• SNR - Signal to Noise Ratio: 92.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Reel
• Number of Converters: 2 Converter
• Power Consumption: 107 mW
• Product: Analog to Digital Converters
• Type: Simultaneous Sampling
• Brand: Analog Devices
• Shutdown: Shutdown
• Development Kit: EVAL-AD7380FMCZ
• DNL - Differential Nonlinearity: 1 LSB
• FPBW - Full Power Bandwidth: 25 MHz
• Gain Error: 0.002 %/FS
• INL - Integral Nonlinearity: 2 LSB
• Pd - Power Dissipation: 10 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• SFDR - Spurious Free Dynamic Range: - 110 dB
• SINAD - Signal to Noise and Distortion Ratio: 92.3 dB
• Factory Pack Quantity: 5000
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 113 dB
