AD7564BRS Overview

This product is manufactured by Analog Devices Inc.. The sampling rate of this product is 1.8 MS/s. This product is equipped with 4 Channel for efficient performance. 550 ns settling time Interface Type: Serial External is the reference type. Supply Voltage - Max: 5 V Supply Voltage - Min: 3.3 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-28 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.75 mm. 10.2 mm long The output type is Current. This device belongs to the General Purpose type. R-2R architecture Analog Devices is a trusted brand for quality electronics The +/- 0.5 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 0.5 LSB 3.3 V to 5 V operating supply voltage range 900 mW DACs - Digital to Analog Converters product type 47 of 100 Data Converter ICs as subcategory 1. 0.025045 oz of Unit Weight

AD7564BRS Image

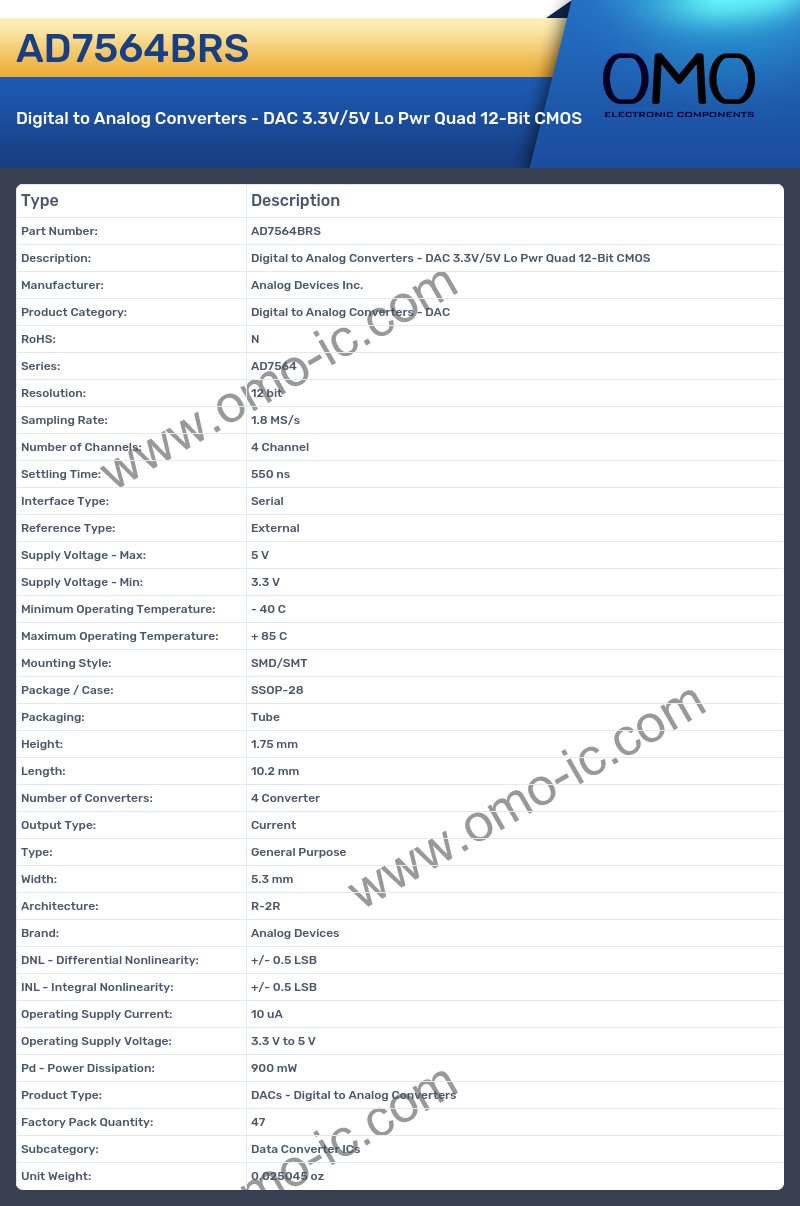

AD7564BRS Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Digital to Analog Converters - DAC
• RoHS: N
• Series: AD7564
• Resolution: 12 bit
• Sampling Rate: 1.8 MS/s
• Number of Channels: 4 Channel
• Settling Time: 550 ns
• Interface Type: Serial
• Reference Type: External
• Supply Voltage - Max: 5 V
• Supply Voltage - Min: 3.3 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-28
• Packaging: Tube
• Height: 1.75 mm
• Length: 10.2 mm
• Number of Converters: 4 Converter
• Output Type: Current
• Type: General Purpose
• Width: 5.3 mm
• Architecture: R-2R
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 0.5 LSB
• INL - Integral Nonlinearity: +/- 0.5 LSB
• Operating Supply Current: 10 uA
• Operating Supply Voltage: 3.3 V to 5 V
• Pd - Power Dissipation: 900 mW
• Product Type: DACs - Digital to Analog Converters
• Factory Pack Quantity: 47
• Subcategory: Data Converter ICs
• Unit Weight: 0.025045 oz
