AD7689ACPZ

AD7689ACPZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-20 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 250 kS/s. Differential/Pseudo-Differential/Single-Ended input type Interface Type: 3-Wire, QSPI, SPI SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 0.83 mm. 2.5 V/4.096 V, +/- 1.25 V/+/- 2.048 V Input Voltage 4 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics INL is within +/- 6 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 19.2 mW ADCs - Analog to Digital Converters product type 490 of 100 Data Converter ICs as subcategory 1. 0.063987 oz of Unit Weight

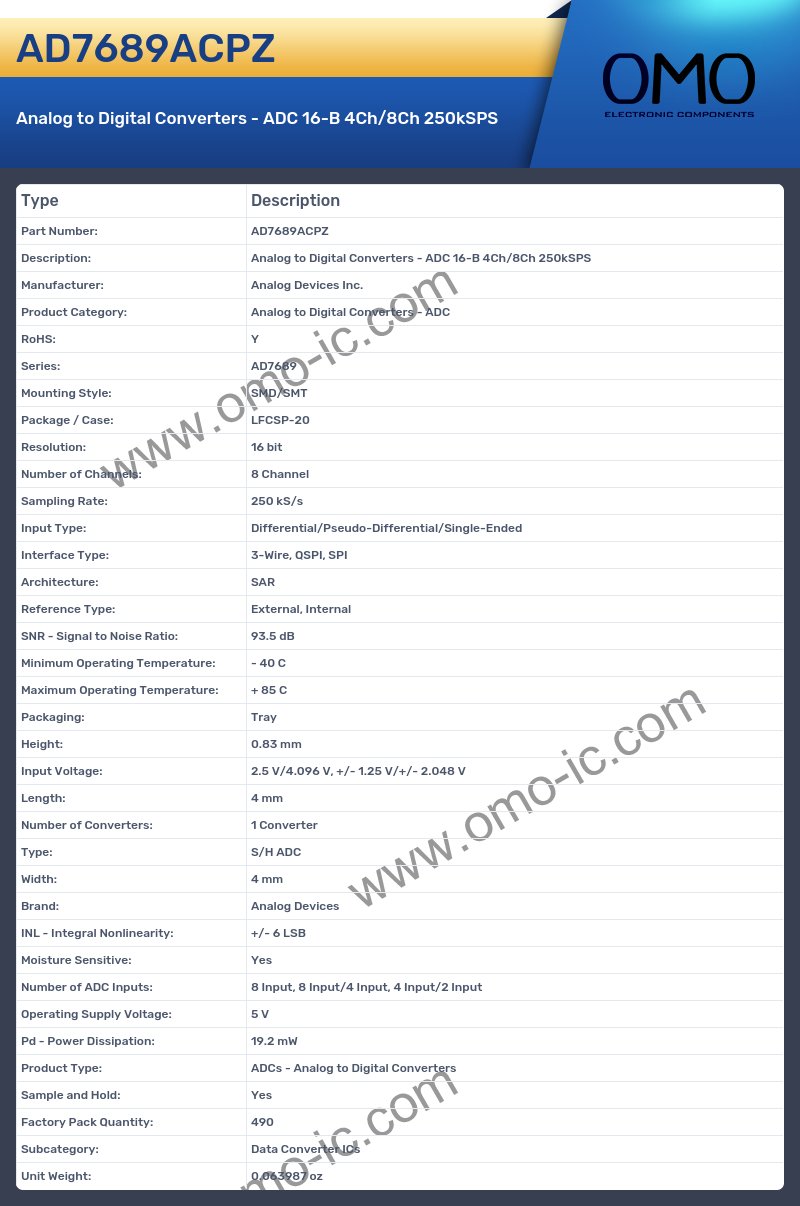

AD7689ACPZ Image

AD7689ACPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7689
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-20
• Resolution: 16 bit
• Number of Channels: 8 Channel
• Sampling Rate: 250 kS/s
• Input Type: Differential/Pseudo-Differential/Single-Ended
• Interface Type: 3-Wire, QSPI, SPI
• Architecture: SAR
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 93.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 0.83 mm
• Input Voltage: 2.5 V/4.096 V, +/- 1.25 V/+/- 2.048 V
• Length: 4 mm
• Number of Converters: 1 Converter
• Type: S/H ADC
• Width: 4 mm
• Brand: Analog Devices
• INL - Integral Nonlinearity: +/- 6 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 8 Input, 8 Input/4 Input, 4 Input/2 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 19.2 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 490
• Subcategory: Data Converter ICs
• Unit Weight: 0.063987 oz
