AD774BJNZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. PDIP-28 package/case type is utilized by this product. This product is equipped with 12 Channel for efficient performance. The sampling rate of this product is 125 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 4.95 mm. 10 V/20 V, +/- 5 V/+/- 10 V Input Voltage 39.75 mm long Analog Devices is a trusted brand for quality electronics INL is within +/- 1 LSB 5 V operating supply voltage range 825 mW ADCs - Analog to Digital Converters product type 13 of 100 Data Converter ICs as subcategory 1. 0.147798 oz of Unit Weight

AD774BJNZ Image

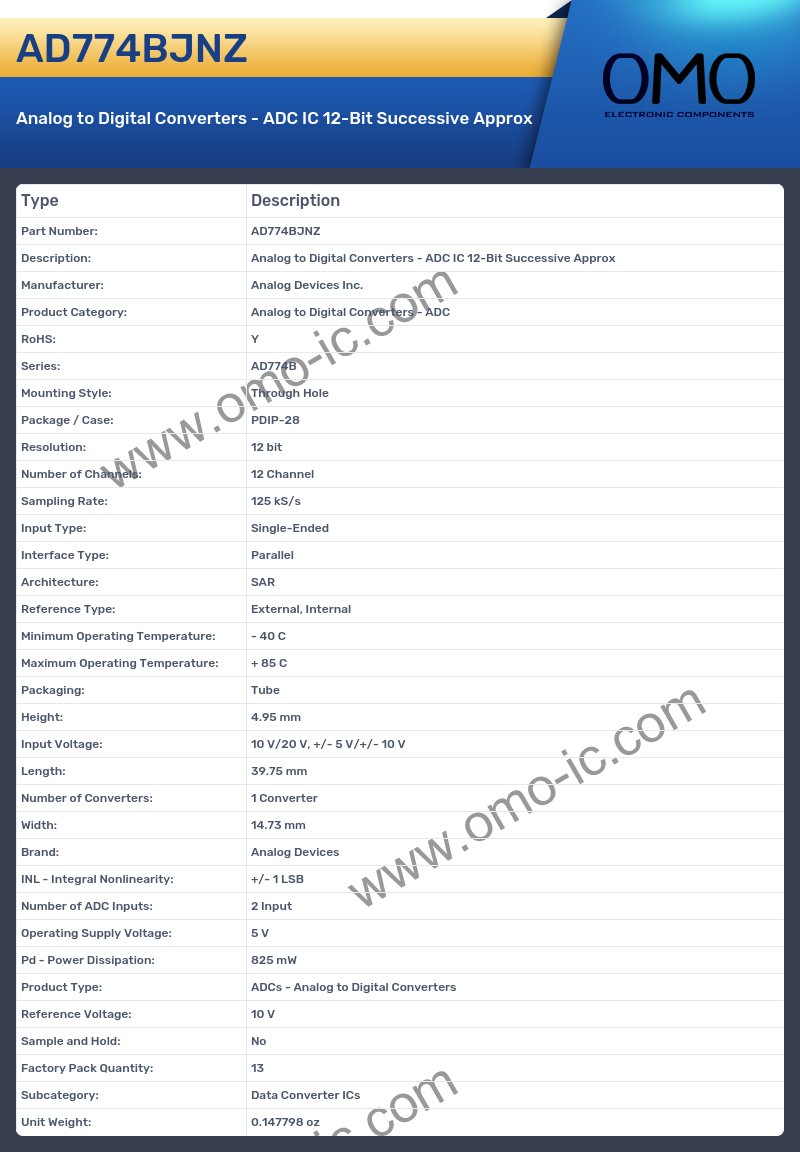

AD774BJNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD774B
• Mounting Style: Through Hole
• Package / Case: PDIP-28
• Resolution: 12 bit
• Number of Channels: 12 Channel
• Sampling Rate: 125 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External, Internal
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Height: 4.95 mm
• Input Voltage: 10 V/20 V, +/- 5 V/+/- 10 V
• Length: 39.75 mm
• Number of Converters: 1 Converter
• Width: 14.73 mm
• Brand: Analog Devices
• INL - Integral Nonlinearity: +/- 1 LSB
• Number of ADC Inputs: 2 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 825 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 10 V
• Sample and Hold: No
• Factory Pack Quantity: 13
• Subcategory: Data Converter ICs
• Unit Weight: 0.147798 oz
