AD7771BCPZ

AD7771BCPZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. LFCSP-64 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 128 kS/s. Differential/Pseudo-Differential/Single-Ended input type Interface Type: SPI Sigma-Delta architecture External, Internal is the reference type. This product requires an 3 V to 3.6 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tray packaging for easy dispensing This device belongs to the Simultaneous Sampling ADC type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. The - 0.99 LSB, ensuring accurate and precise analog-to-digital conversion. 0.1 % FS is 0.2%. INL is within 1.5 LSB Yes regarding Moisture Sensitivity 153 mW ADCs - Analog to Digital Converters product type 260 of 100 Data Converter ICs as subcategory THD is as low as - 109 dB.

AD7771BCPZ Image

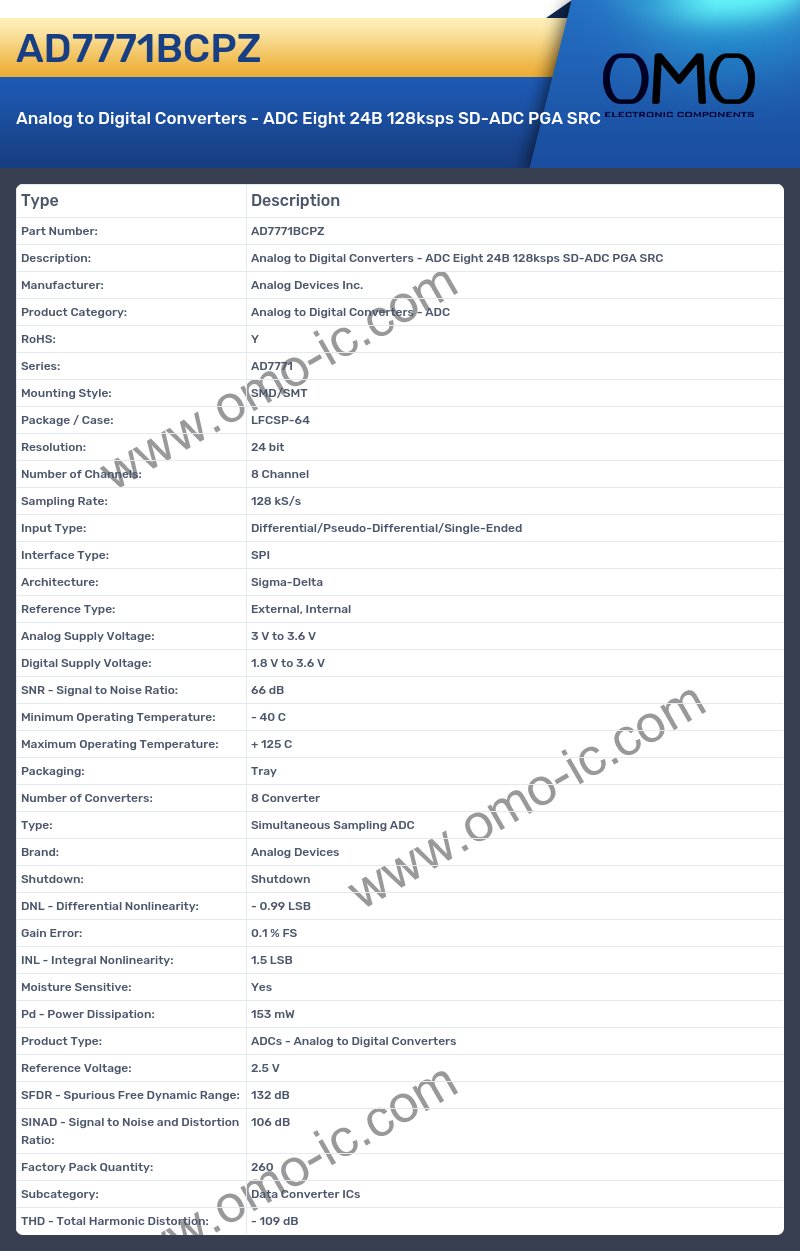

AD7771BCPZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD7771
• Mounting Style: SMD/SMT
• Package / Case: LFCSP-64
• Resolution: 24 bit
• Number of Channels: 8 Channel
• Sampling Rate: 128 kS/s
• Input Type: Differential/Pseudo-Differential/Single-Ended
• Interface Type: SPI
• Architecture: Sigma-Delta
• Reference Type: External, Internal
• Analog Supply Voltage: 3 V to 3.6 V
• Digital Supply Voltage: 1.8 V to 3.6 V
• SNR - Signal to Noise Ratio: 66 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tray
• Number of Converters: 8 Converter
• Type: Simultaneous Sampling ADC
• Brand: Analog Devices
• Shutdown: Shutdown
• DNL - Differential Nonlinearity: - 0.99 LSB
• Gain Error: 0.1 % FS
• INL - Integral Nonlinearity: 1.5 LSB
• Moisture Sensitive: Yes
• Pd - Power Dissipation: 153 mW
• Product Type: ADCs - Analog to Digital Converters
• Reference Voltage: 2.5 V
• SFDR - Spurious Free Dynamic Range: 132 dB
• SINAD - Signal to Noise and Distortion Ratio: 106 dB
• Factory Pack Quantity: 260
• Subcategory: Data Converter ICs
• THD - Total Harmonic Distortion: - 109 dB
