AD809BRZ Overview

This product is manufactured by Analog Devices Inc.. This device belongs to the Integer-N type. This product has 1 circuit. The product's Maximum Input Frequency is 19.44 MHz. The product's Output Frequency Range is 9.72 MHz. The product's Output Frequency Range is 155.52 MHz. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.5 mm (Max). 10 mm (Max) long Analog Devices is a trusted brand for quality electronics - 5.2 V, + 5 V operating supply voltage range PLLs - Phase Locked Loops product type 48 of 100 Wireless & RF Integrated Circuits as subcategory 1. 0.023492 oz of Unit Weight

AD809BRZ Image

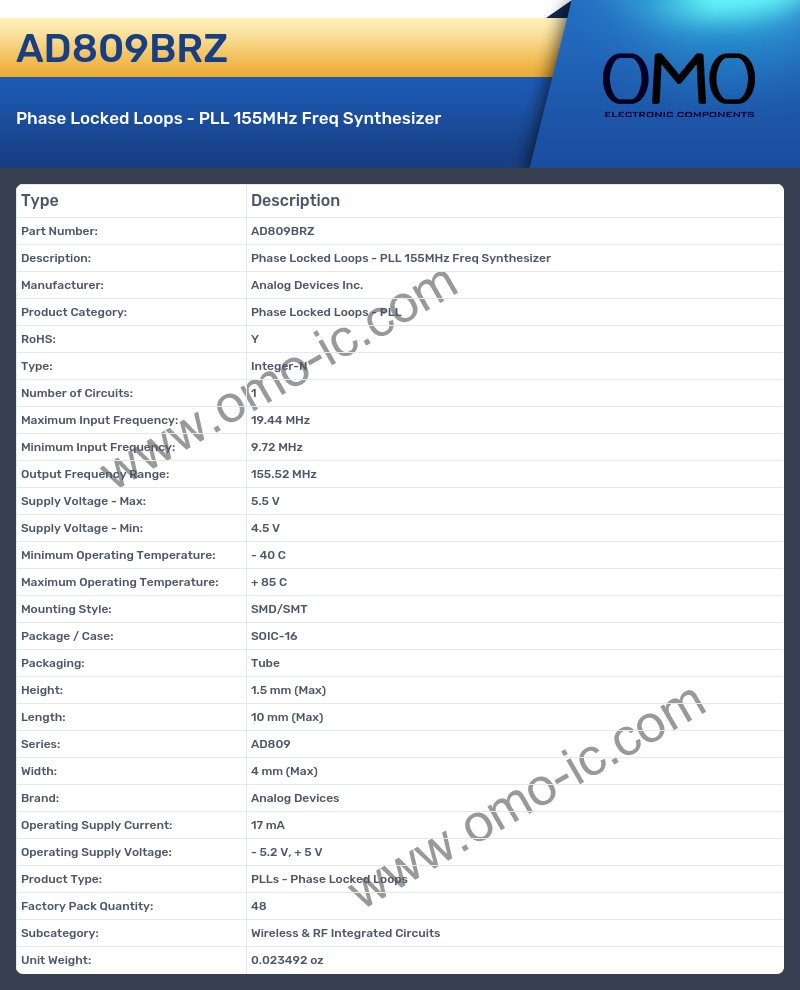

AD809BRZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Phase Locked Loops - PLL
• RoHS: Y
• Type: Integer-N
• Number of Circuits: 1
• Maximum Input Frequency: 19.44 MHz
• Minimum Input Frequency: 9.72 MHz
• Output Frequency Range: 155.52 MHz
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Height: 1.5 mm (Max)
• Length: 10 mm (Max)
• Series: AD809
• Width: 4 mm (Max)
• Brand: Analog Devices
• Operating Supply Current: 17 mA
• Operating Supply Voltage: - 5.2 V, + 5 V
• Product Type: PLLs - Phase Locked Loops
• Factory Pack Quantity: 48
• Subcategory: Wireless & RF Integrated Circuits
• Unit Weight: 0.023492 oz
