AD829SQ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. Bandwidth at -3 dB is 600 MHz This product has an 7 uA of 5 uA for precise signal processing. The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. CDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Voltage Feedback. The height of the product is 3.56 mm (Max). No input type 10.29 mm (Max) long The output type is No. Video Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 100 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V operating supply voltage range 1300 mW Video Amplifiers product type This product has a 98 dB of 50 dB, providing reliable power supply noise rejection. 48 of 100 Amplifier ICs as subcategory

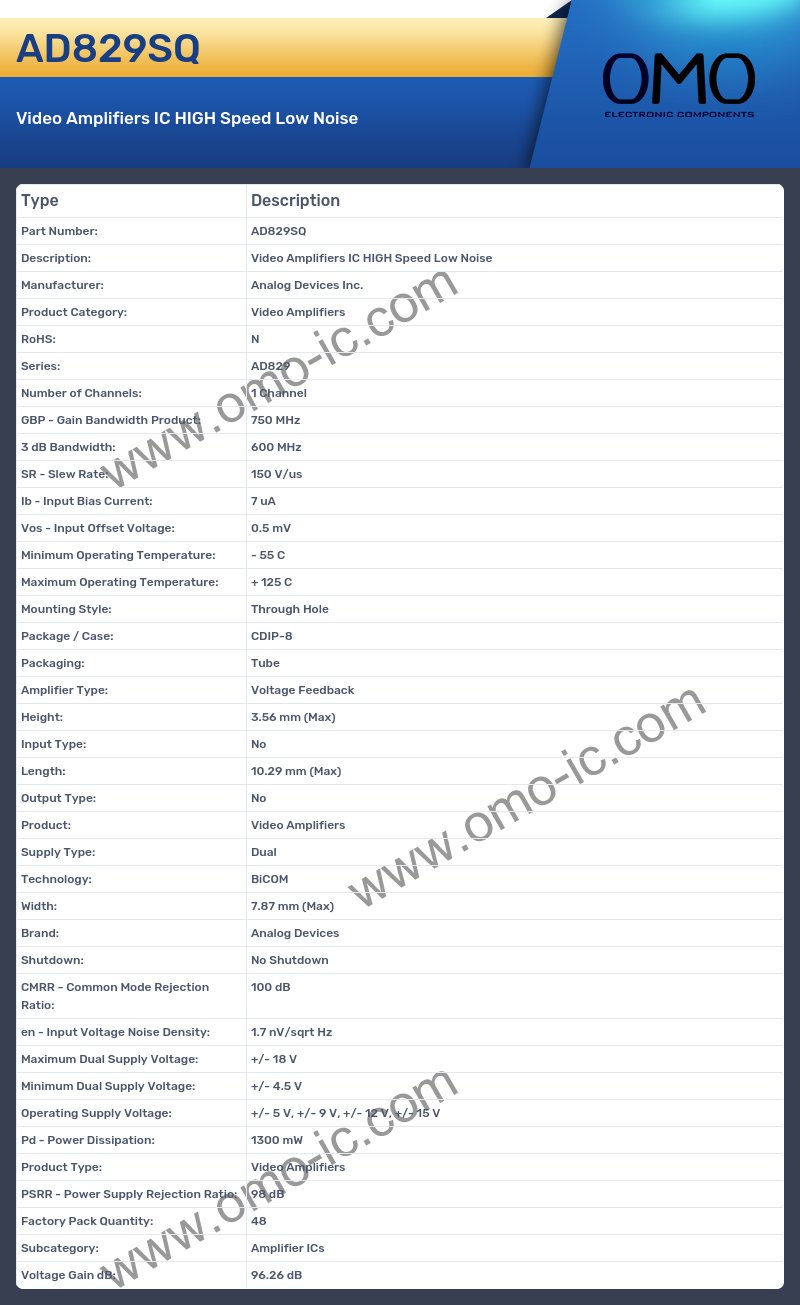

AD829SQ Image

AD829SQ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Video Amplifiers
• RoHS: N
• Series: AD829
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 750 MHz
• 3 dB Bandwidth: 600 MHz
• SR - Slew Rate: 150 V/us
• Ib - Input Bias Current: 7 uA
• Vos - Input Offset Voltage: 0.5 mV
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: CDIP-8
• Packaging: Tube
• Amplifier Type: Voltage Feedback
• Height: 3.56 mm (Max)
• Input Type: No
• Length: 10.29 mm (Max)
• Output Type: No
• Product: Video Amplifiers
• Supply Type: Dual
• Technology: BiCOM
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 100 dB
• en - Input Voltage Noise Density: 1.7 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• Pd - Power Dissipation: 1300 mW
• Product Type: Video Amplifiers
• PSRR - Power Supply Rejection Ratio: 98 dB
• Factory Pack Quantity: 48
• Subcategory: Amplifier ICs
• Voltage Gain dB: 96.26 dB
