AD8684ARUZ

AD8684ARUZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 4 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 125 pA of 5 uA for precise signal processing. Supply Voltage - Max: 18 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1 mm. 5 mm long Precision Amplifiers This device belongs to the General Purpose Amplifier type. Analog Devices is a trusted brand for quality electronics Maximum input voltage range of 15 V 1. The maximum dual supply voltage is +/- 18 V. +/- 4.5 V minimum dual supply voltage 4.5 V to 18 V operating supply voltage range Precision Amplifiers product type This product has a 114 dB of 50 dB, providing reliable power supply noise rejection. 96 of 100 Amplifier ICs as subcategory 1. 0.004949 oz of Unit Weight

AD8684ARUZ Image

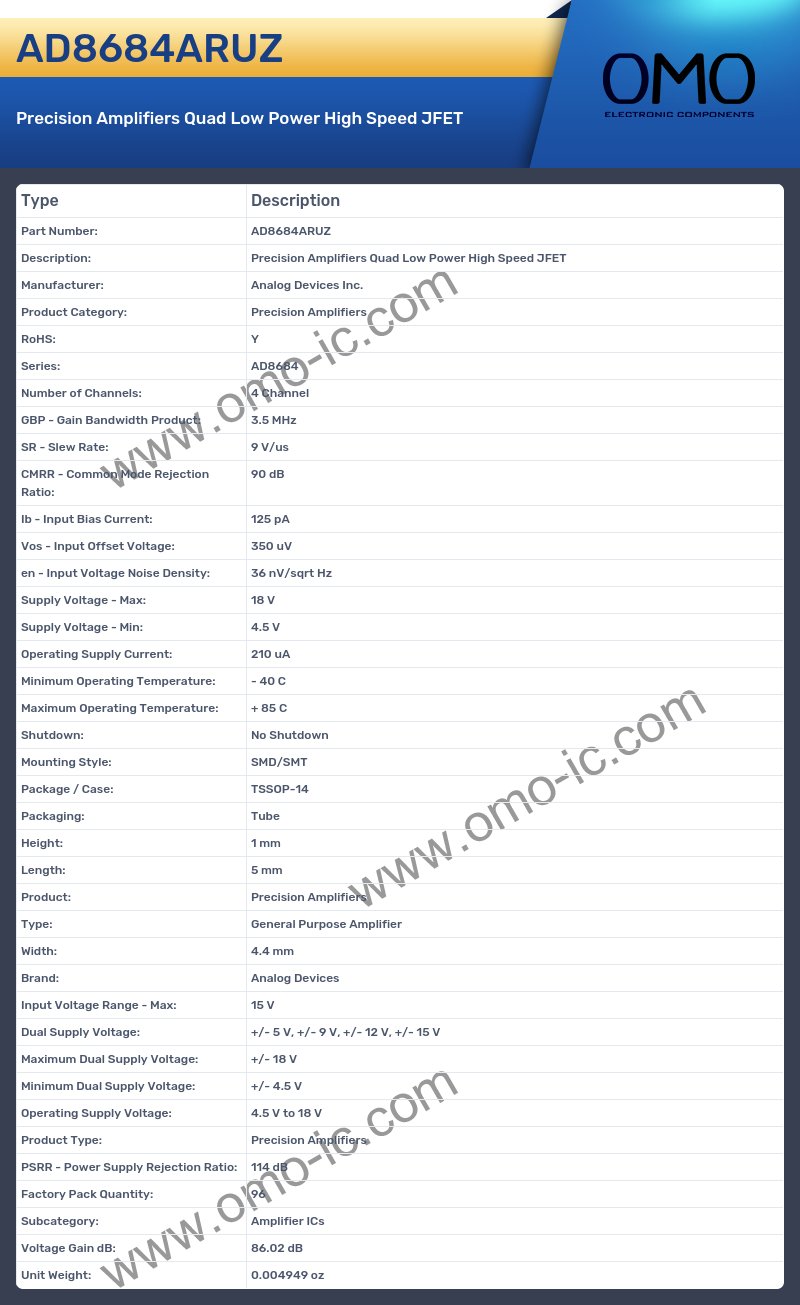

AD8684ARUZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: AD8684
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 3.5 MHz
• SR - Slew Rate: 9 V/us
• CMRR - Common Mode Rejection Ratio: 90 dB
• Ib - Input Bias Current: 125 pA
• Vos - Input Offset Voltage: 350 uV
• en - Input Voltage Noise Density: 36 nV/sqrt Hz
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 210 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Tube
• Height: 1 mm
• Length: 5 mm
• Product: Precision Amplifiers
• Type: General Purpose Amplifier
• Width: 4.4 mm
• Brand: Analog Devices
• Input Voltage Range - Max: 15 V
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: 4.5 V to 18 V
• Product Type: Precision Amplifiers
• PSRR - Power Supply Rejection Ratio: 114 dB
• Factory Pack Quantity: 96
• Subcategory: Amplifier ICs
• Voltage Gain dB: 86.02 dB
• Unit Weight: 0.004949 oz
