AD9432BSVZ-80

AD9432BSVZ-80 Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. TQFP-48 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 80 MS/s. Differential input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tray packaging for easy dispensing The height of the product is 1 mm. 2 Vp-p Input Voltage 10 mm long This device belongs to the S/H ADC type. Analog Devices is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. - 5 %FSR/7 %FSR is 0.2%. INL is within +/- 1.5 LSB Yes regarding Moisture Sensitivity 3.3 V, 5 V operating supply voltage range 1.1 W ADCs - Analog to Digital Converters product type 160 of 100 Data Converter ICs as subcategory 1. 0.319998 oz of Unit Weight

AD9432BSVZ-80 Image

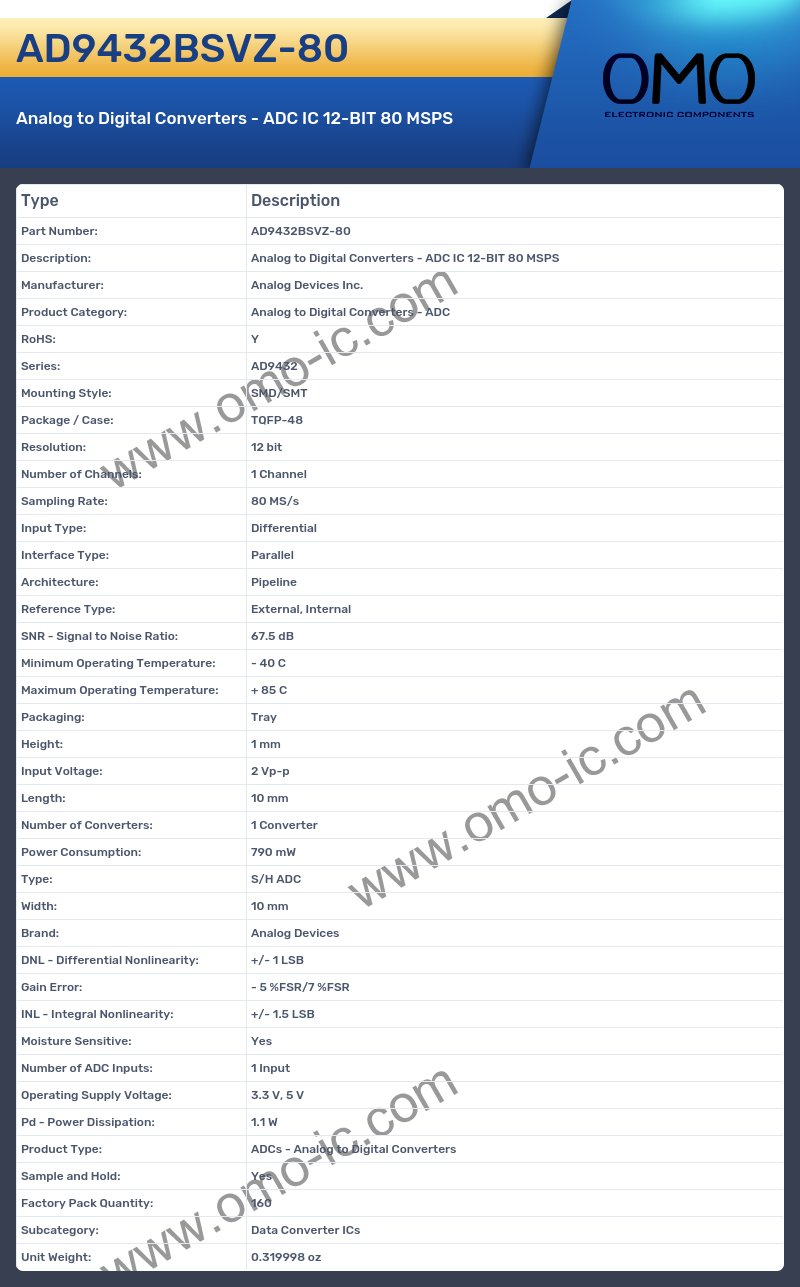

AD9432BSVZ-80 Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: AD9432
• Mounting Style: SMD/SMT
• Package / Case: TQFP-48
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 80 MS/s
• Input Type: Differential
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• SNR - Signal to Noise Ratio: 67.5 dB
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tray
• Height: 1 mm
• Input Voltage: 2 Vp-p
• Length: 10 mm
• Number of Converters: 1 Converter
• Power Consumption: 790 mW
• Type: S/H ADC
• Width: 10 mm
• Brand: Analog Devices
• DNL - Differential Nonlinearity: +/- 1 LSB
• Gain Error: - 5 %FSR/7 %FSR
• INL - Integral Nonlinearity: +/- 1.5 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 1 Input
• Operating Supply Voltage: 3.3 V, 5 V
• Pd - Power Dissipation: 1.1 W
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 160
• Subcategory: Data Converter ICs
• Unit Weight: 0.319998 oz
