AD9631ANZ

AD9631ANZ Overview

This product is manufactured by Analog Devices Inc.. This product is equipped with 1 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 7 uA of 5 uA for precise signal processing. Supply Voltage - Max: 12 V Supply Voltage - Min: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Voltage Feedback. The height of the product is 3.43 mm. 9.27 mm long Operational Amplifiers Supply Type: Dual Analog Devices is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Voltage Feedback Topology 1. The maximum dual supply voltage is +/- 6 V. +/- 3 V minimum dual supply voltage 6 V to 12 V operating supply voltage range 1300 mW Op Amps - High Speed Operational Amplifiers product type This product has a 60 dB of 50 dB, providing reliable power supply noise rejection. 16 ns settling time 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

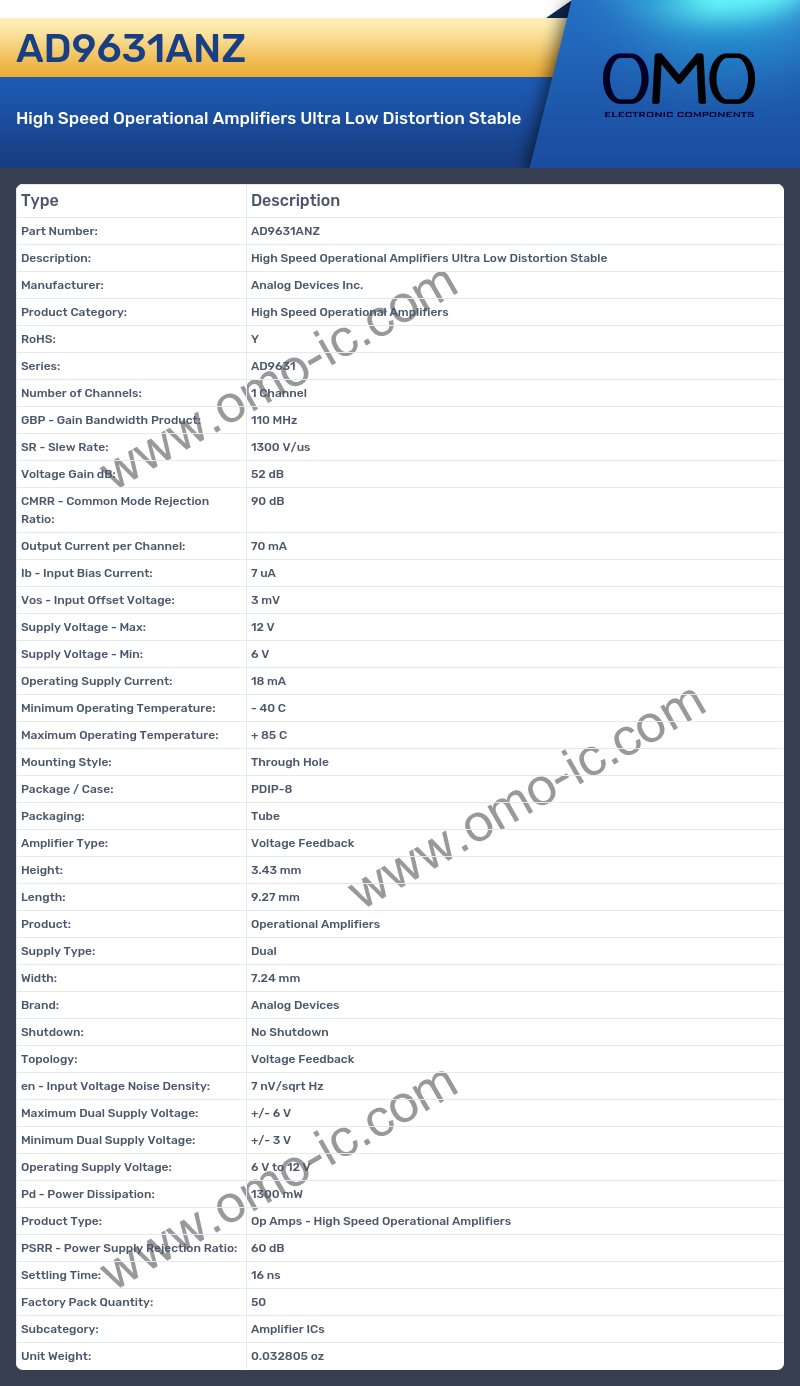

AD9631ANZ Image

AD9631ANZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: High Speed Operational Amplifiers
• RoHS: Y
• Series: AD9631
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 110 MHz
• SR - Slew Rate: 1300 V/us
• Voltage Gain dB: 52 dB
• CMRR - Common Mode Rejection Ratio: 90 dB
• Output Current per Channel: 70 mA
• Ib - Input Bias Current: 7 uA
• Vos - Input Offset Voltage: 3 mV
• Supply Voltage - Max: 12 V
• Supply Voltage - Min: 6 V
• Operating Supply Current: 18 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Voltage Feedback
• Height: 3.43 mm
• Length: 9.27 mm
• Product: Operational Amplifiers
• Supply Type: Dual
• Width: 7.24 mm
• Brand: Analog Devices
• Shutdown: No Shutdown
• Topology: Voltage Feedback
• en - Input Voltage Noise Density: 7 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 6 V
• Minimum Dual Supply Voltage: +/- 3 V
• Operating Supply Voltage: 6 V to 12 V
• Pd - Power Dissipation: 1300 mW
• Product Type: Op Amps - High Speed Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 60 dB
• Settling Time: 16 ns
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Unit Weight: 0.032805 oz
