ADC0809CCVX/NOPB

ADC0809CCVX/NOPB Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PLCC-28 package/case type is utilized by this product. This product is equipped with 8 Channel for efficient performance. The sampling rate of this product is 10 kS/s. Single-Ended input type Interface Type: Parallel SAR architecture External is the reference type. This product requires an 5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 3.68 mm. 5 V Input Voltage 11.43 mm long The output type is TTL. This device belongs to the S/H ADC type. Texas Instruments is a trusted brand for quality electronics INL is within 0.5 LSB Yes regarding Moisture Sensitivity 5 V operating supply voltage range 875 mW ADCs - Analog to Digital Converters product type 750 of 100 Data Converter ICs as subcategory 1. 0.045856 oz of Unit Weight

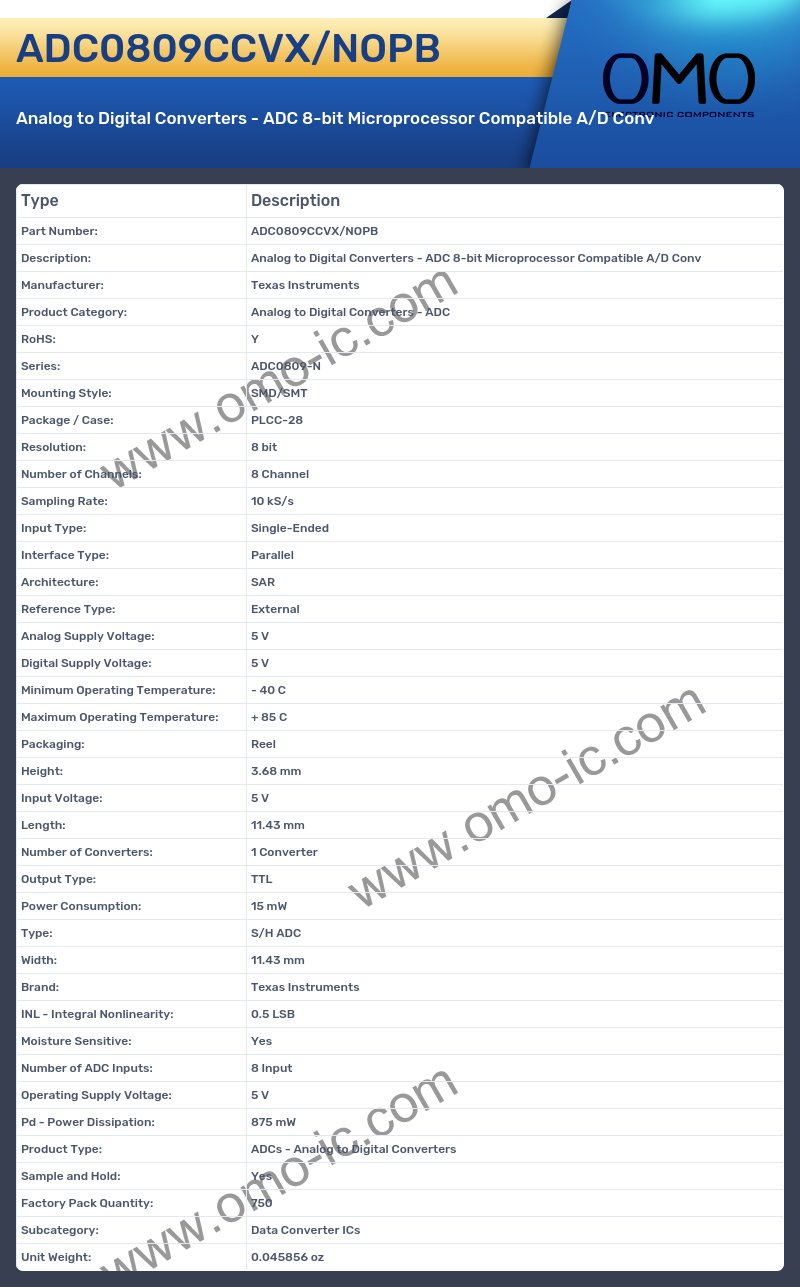

ADC0809CCVX/NOPB Image

ADC0809CCVX/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: ADC0809-N
• Mounting Style: SMD/SMT
• Package / Case: PLCC-28
• Resolution: 8 bit
• Number of Channels: 8 Channel
• Sampling Rate: 10 kS/s
• Input Type: Single-Ended
• Interface Type: Parallel
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 5 V
• Digital Supply Voltage: 5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 3.68 mm
• Input Voltage: 5 V
• Length: 11.43 mm
• Number of Converters: 1 Converter
• Output Type: TTL
• Power Consumption: 15 mW
• Type: S/H ADC
• Width: 11.43 mm
• Brand: Texas Instruments
• INL - Integral Nonlinearity: 0.5 LSB
• Moisture Sensitive: Yes
• Number of ADC Inputs: 8 Input
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 875 mW
• Product Type: ADCs - Analog to Digital Converters
• Sample and Hold: Yes
• Factory Pack Quantity: 750
• Subcategory: Data Converter ICs
• Unit Weight: 0.045856 oz
