ADG419BNZ

ADG419BNZ Overview

This product is manufactured by Analog Devices Inc.. Our product has a 1 Switch number of switches. This product has a 1 x SPDT configuration. Maximum switch voltage is 15 V Our product has a maximum 160 ns. Our product has a maximum 160 ns. 12 V operating supply voltage range The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 3.43 mm. 9.27 mm long Supply Type: Single Supply, Dual Supply Analog Devices is a trusted brand for quality electronics Maximum supply current: 1 uA 1. The maximum dual supply voltage is +/- 16.5 V. +/- 13.5 V minimum dual supply voltage 35 uW Analog Switch ICs product type 50 of 100 Switch ICs as subcategory Supply Voltage - Max: 13.2 V Supply Voltage - Min: 5 V Maximum continuous current: 30 mA 1. 0.032805 oz of Unit Weight

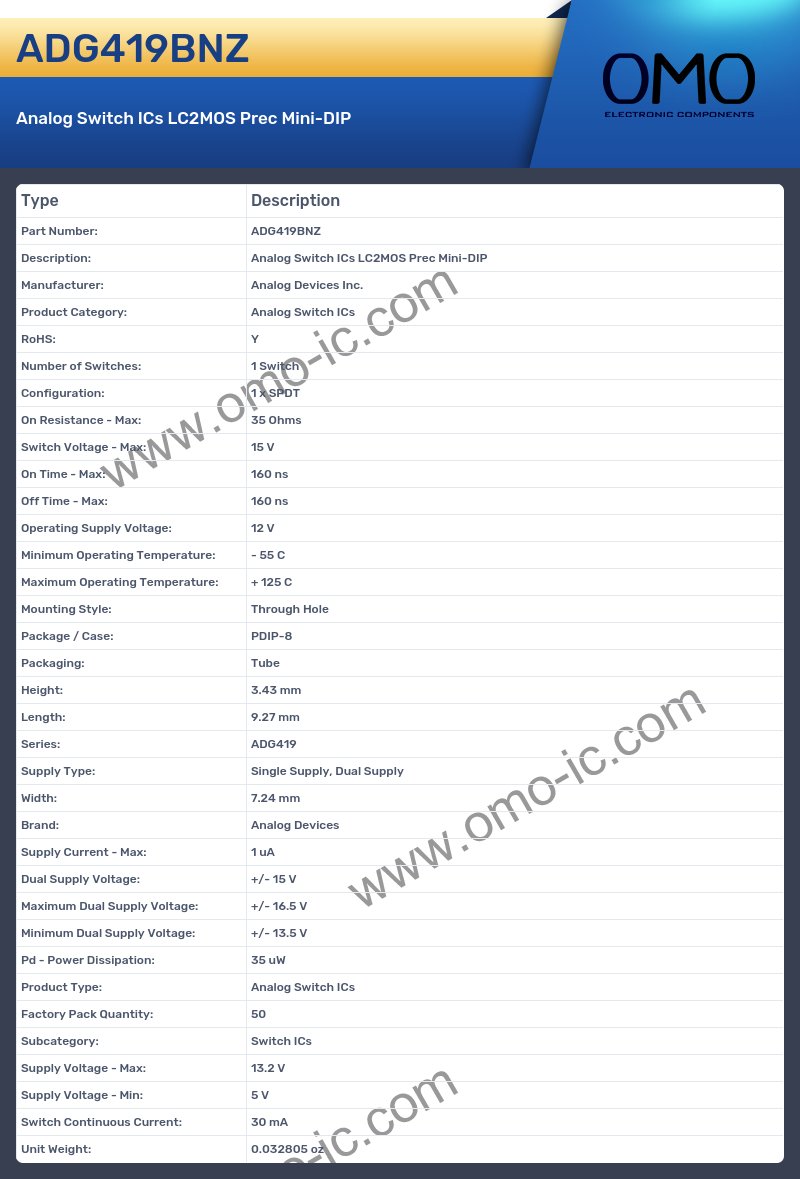

ADG419BNZ Image

ADG419BNZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog Switch ICs
• RoHS: Y
• Number of Switches: 1 Switch
• Configuration: 1 x SPDT
• On Resistance - Max: 35 Ohms
• Switch Voltage - Max: 15 V
• On Time - Max: 160 ns
• Off Time - Max: 160 ns
• Operating Supply Voltage: 12 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Height: 3.43 mm
• Length: 9.27 mm
• Series: ADG419
• Supply Type: Single Supply, Dual Supply
• Width: 7.24 mm
• Brand: Analog Devices
• Supply Current - Max: 1 uA
• Dual Supply Voltage: +/- 15 V
• Maximum Dual Supply Voltage: +/- 16.5 V
• Minimum Dual Supply Voltage: +/- 13.5 V
• Pd - Power Dissipation: 35 uW
• Product Type: Analog Switch ICs
• Factory Pack Quantity: 50
• Subcategory: Switch ICs
• Supply Voltage - Max: 13.2 V
• Supply Voltage - Min: 5 V
• Switch Continuous Current: 30 mA
• Unit Weight: 0.032805 oz
