BAT54SWFILM

BAT54SWFILM Overview

This product is manufactured by STMicroelectronics. Schottky Diodes The product can operate at a maximum temperature of SMD/SMT. SOT-323 package/case type is utilized by this product. 300 mA is the If-Forward Current; Vrrm - Repetitive Reverse Voltage of 40 V The Vf - Forward Voltage of the product is 0.9 V. Ifsm - Forward Surge Current: 1 A This product has a Dual Series configuration. 1 uA at 30 V of Ir - Reverse Current The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 150 C. Reel packaging for easy dispensing The height of the product is 1.1 mm. 2 mm long SMD/SMT Termination Style This device belongs to the Small Signal Schottky Diode type. STMicroelectronics is a trusted brand for quality electronics Schottky Diodes & Rectifiers product type 3000 of 100 Diodes & Rectifiers as subcategory 5 ns trr - Reverse Recovery Time 1. 0.002116 oz of Unit Weight

BAT54SWFILM Image

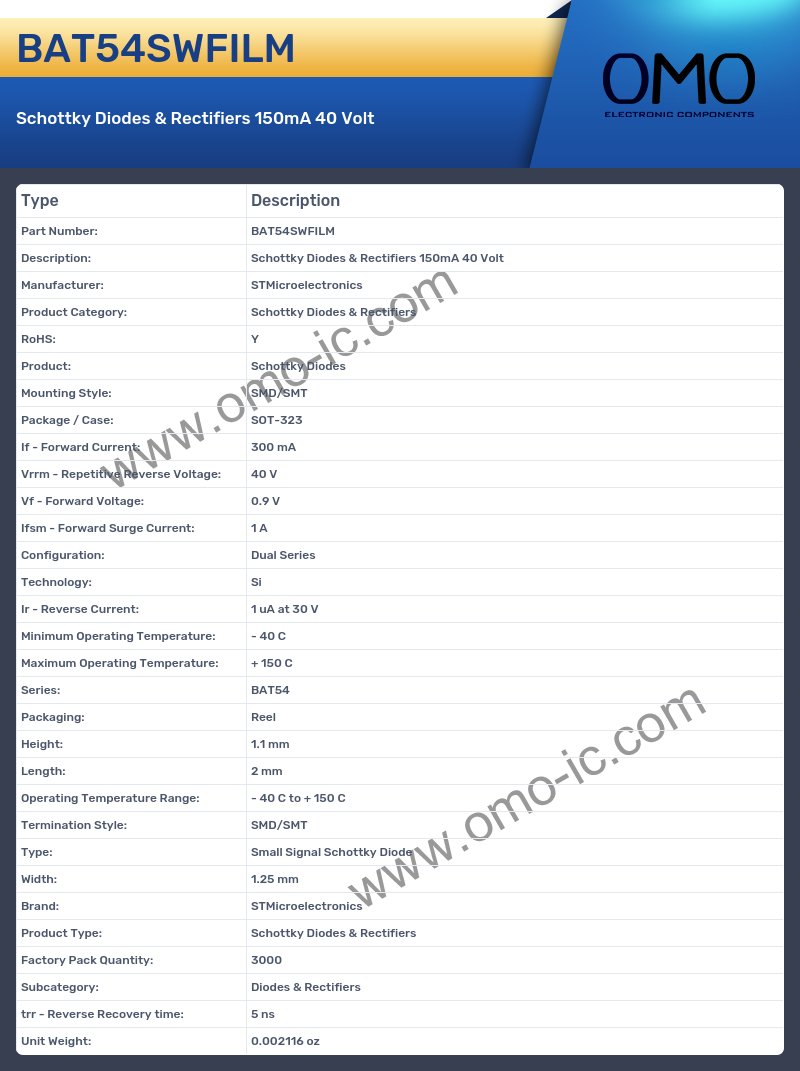

BAT54SWFILM Specifications

• Manufacturer: STMicroelectronics
• Product Category: Schottky Diodes & Rectifiers
• RoHS: Y
• Product: Schottky Diodes
• Mounting Style: SMD/SMT
• Package / Case: SOT-323
• If - Forward Current: 300 mA
• Vrrm - Repetitive Reverse Voltage: 40 V
• Vf - Forward Voltage: 0.9 V
• Ifsm - Forward Surge Current: 1 A
• Configuration: Dual Series
• Technology: Si
• Ir - Reverse Current: 1 uA at 30 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 150 C
• Series: BAT54
• Packaging: Reel
• Height: 1.1 mm
• Length: 2 mm
• Operating Temperature Range: - 40 C to + 150 C
• Termination Style: SMD/SMT
• Type: Small Signal Schottky Diode
• Width: 1.25 mm
• Brand: STMicroelectronics
• Product Type: Schottky Diodes & Rectifiers
• Factory Pack Quantity: 3000
• Subcategory: Diodes & Rectifiers
• trr - Reverse Recovery time: 5 ns
• Unit Weight: 0.002116 oz
