CD4048BPW

CD4048BPW Overview

This product is manufactured by Texas Instruments. Configurable Multiple-Function Gate AND, AND/NOR, AND/OR, NAND, NOR, OR, OR/AND, OR/NAND logic function The product uses the CD4000 logic family. The product boasts a whopping 1 Gate gates for unparalleled processing power. This product has a - 6.8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 6.8 mA The propagation delay time is 120 ns at 15 V. Supply Voltage - Max: 18 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Multi Function The height of the product is 1.15 mm. CMOS input type 5 mm long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics CMOS. Number of bits: 8 bit 10 V operating supply voltage range 500 mW (1/2 W) Logic Gates product type 90 of 100 Logic ICs as subcategory 1. 0.002183 oz of Unit Weight

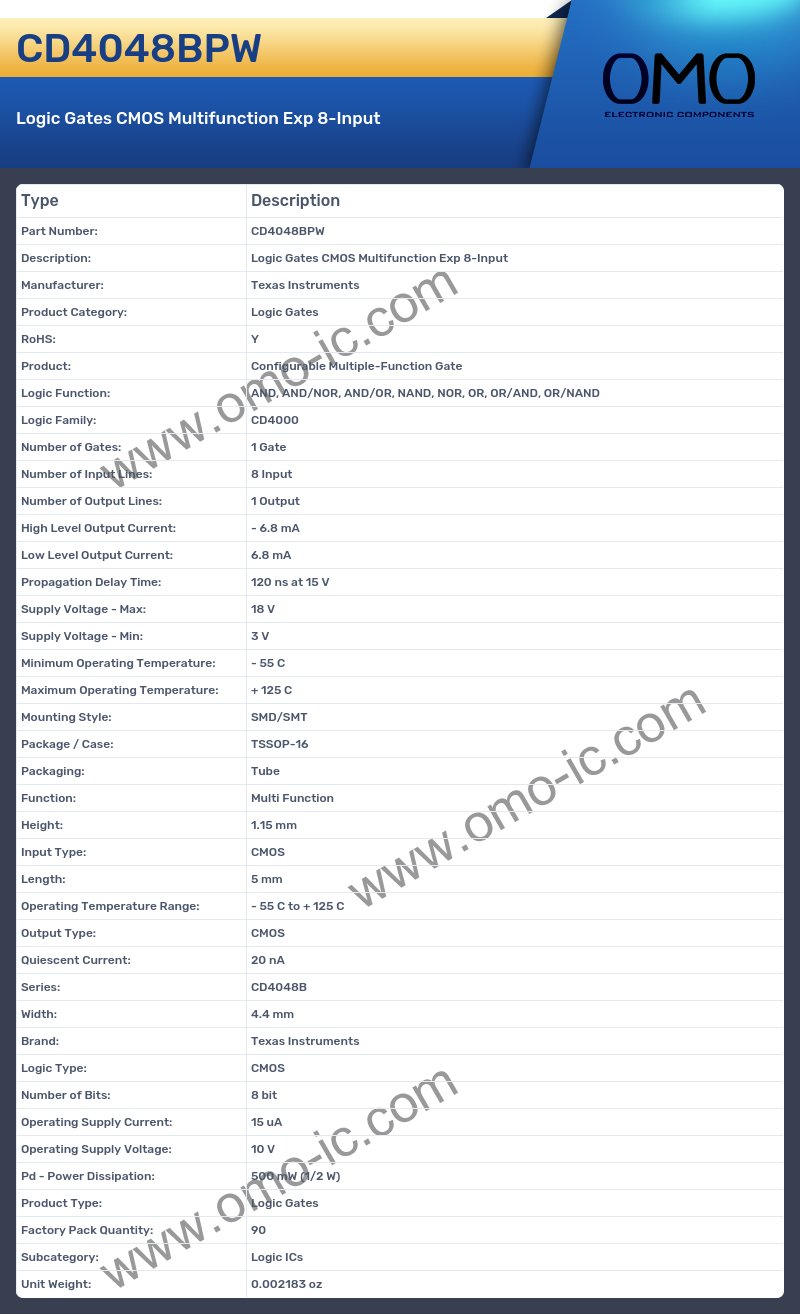

CD4048BPW Image

CD4048BPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Configurable Multiple-Function Gate
• Logic Function: AND, AND/NOR, AND/OR, NAND, NOR, OR, OR/AND, OR/NAND
• Logic Family: CD4000
• Number of Gates: 1 Gate
• Number of Input Lines: 8 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 6.8 mA
• Low Level Output Current: 6.8 mA
• Propagation Delay Time: 120 ns at 15 V
• Supply Voltage - Max: 18 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-16
• Packaging: Tube
• Function: Multi Function
• Height: 1.15 mm
• Input Type: CMOS
• Length: 5 mm
• Operating Temperature Range: - 55 C to + 125 C
• Output Type: CMOS
• Quiescent Current: 20 nA
• Series: CD4048B
• Width: 4.4 mm
• Brand: Texas Instruments
• Logic Type: CMOS
• Number of Bits: 8 bit
• Operating Supply Current: 15 uA
• Operating Supply Voltage: 10 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Logic Gates
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002183 oz
