CSD17585F5 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PICOSTAR-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 5.9 A continuous drain current Rds On value of 27 mOhms Gate-Source Threshold Voltage Range: 900 mV Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.4 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 0.35 mm. 1.53 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 7 S 11 ns fall time MOSFET product type Rise Time is 4 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 31 ns. The typical turn-on delay time is 4 ns. 1. 0.000025 oz of Unit Weight

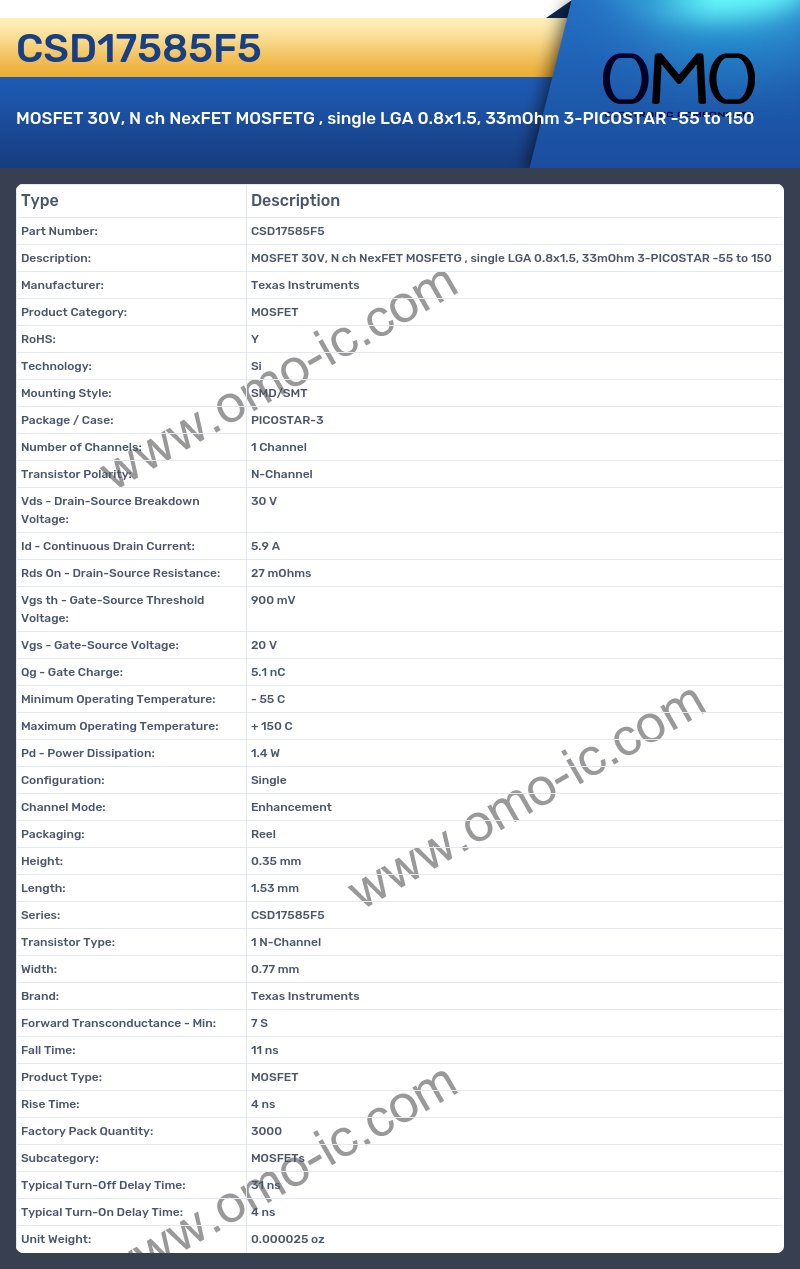

CSD17585F5 Image

CSD17585F5 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PICOSTAR-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 5.9 A
• Rds On - Drain-Source Resistance: 27 mOhms
• Vgs th - Gate-Source Threshold Voltage: 900 mV
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 5.1 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.4 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 0.35 mm
• Length: 1.53 mm
• Series: CSD17585F5
• Transistor Type: 1 N-Channel
• Width: 0.77 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 7 S
• Fall Time: 11 ns
• Product Type: MOSFET
• Rise Time: 4 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 31 ns
• Typical Turn-On Delay Time: 4 ns
• Unit Weight: 0.000025 oz
