CSD18541F5

CSD18541F5 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PICOSTAR-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 60 V 2.2 A continuous drain current Rds On value of 65 mOhms Gate-Source Threshold Voltage Range: 1.75 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 500 mW (1/2 W) This product has a Single configuration. The Channel Mode is set to Enhancement. The product's PicoStar is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.35 mm. 1.53 mm long The Transistor Type is 1 N-Channel. Texas Instruments is a trusted brand for quality electronics 496 ns fall time MOSFET product type Rise Time is 540 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 1076 ns. The typical turn-on delay time is 572 ns. 1. 0.000025 oz of Unit Weight

CSD18541F5 Image

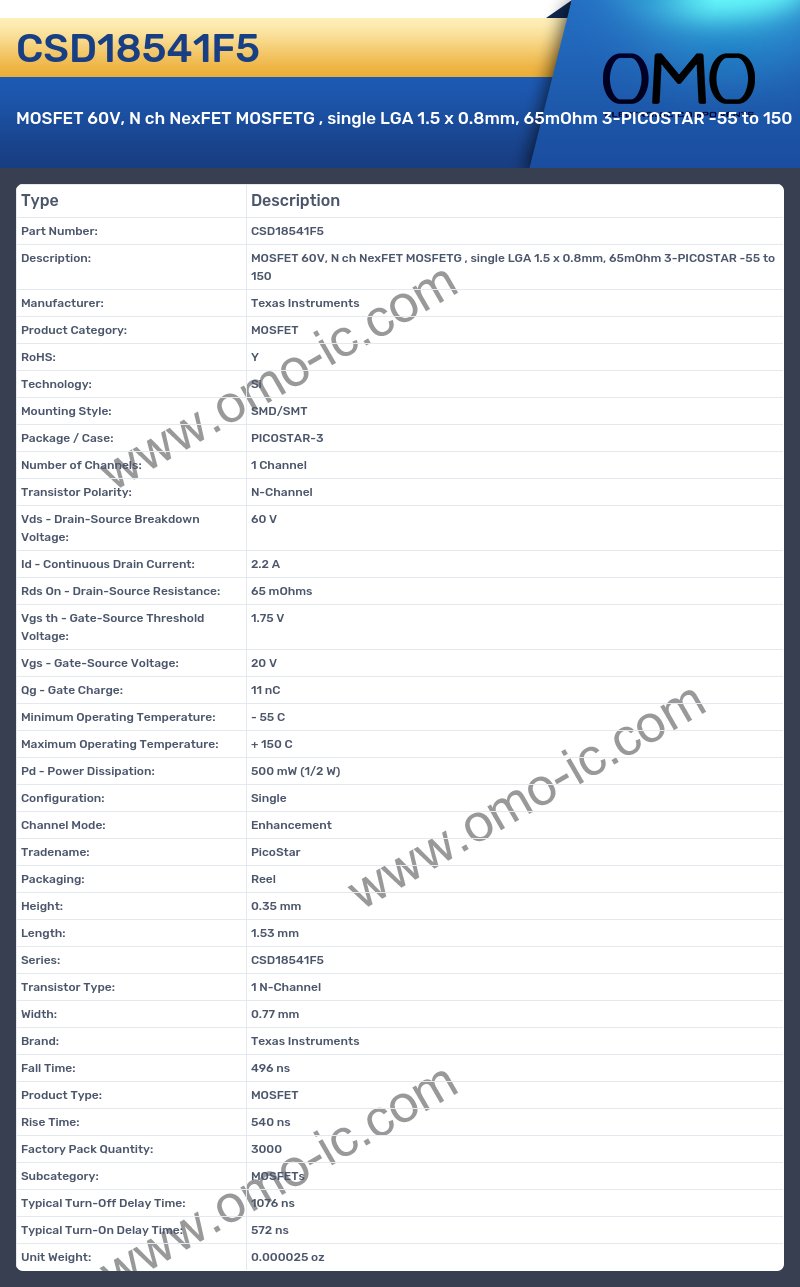

CSD18541F5 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PICOSTAR-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 2.2 A
• Rds On - Drain-Source Resistance: 65 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.75 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 11 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 500 mW (1/2 W)
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: PicoStar
• Packaging: Reel
• Height: 0.35 mm
• Length: 1.53 mm
• Series: CSD18541F5
• Transistor Type: 1 N-Channel
• Width: 0.77 mm
• Brand: Texas Instruments
• Fall Time: 496 ns
• Product Type: MOSFET
• Rise Time: 540 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 1076 ns
• Typical Turn-On Delay Time: 572 ns
• Unit Weight: 0.000025 oz
