CSD22202W15 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-9 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 8 V 5 A continuous drain current Rds On value of 17.4 mOhms Gate-Source Threshold Voltage Range: 800 mV Gate-Source Voltage: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.5 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.62 mm. 1.5 mm long The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics 38 ns fall time MOSFET product type Rise Time is 8.4 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 109 ns. The typical turn-on delay time is 10.4 ns. 1. 0.000088 oz of Unit Weight

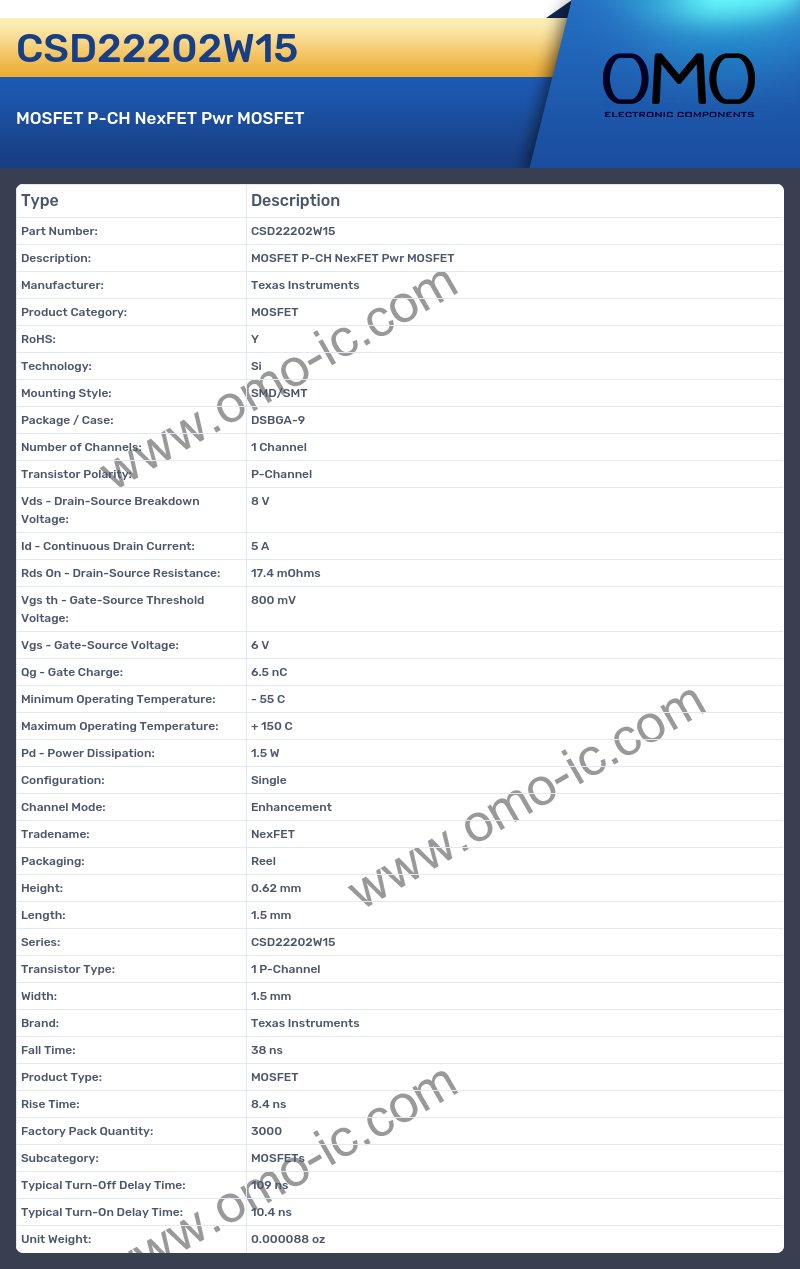

CSD22202W15 Image

CSD22202W15 Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-9
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 8 V
• Id - Continuous Drain Current: 5 A
• Rds On - Drain-Source Resistance: 17.4 mOhms
• Vgs th - Gate-Source Threshold Voltage: 800 mV
• Vgs - Gate-Source Voltage: 6 V
• Qg - Gate Charge: 6.5 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.5 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.62 mm
• Length: 1.5 mm
• Series: CSD22202W15
• Transistor Type: 1 P-Channel
• Width: 1.5 mm
• Brand: Texas Instruments
• Fall Time: 38 ns
• Product Type: MOSFET
• Rise Time: 8.4 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 109 ns
• Typical Turn-On Delay Time: 10.4 ns
• Unit Weight: 0.000088 oz
