CSD85312Q3E

CSD85312Q3E Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSON-8 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 20 V 12 A continuous drain current Rds On value of 14 mOhms Gate-Source Threshold Voltage Range: 1.1 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 2.5 W This product has a Dual configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 1 mm. 3.3 mm long The Transistor Type is 2 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 99 S 6 ns fall time MOSFET product type Rise Time is 27 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 24 ns. The typical turn-on delay time is 11 ns. 1. 0.001129 oz of Unit Weight

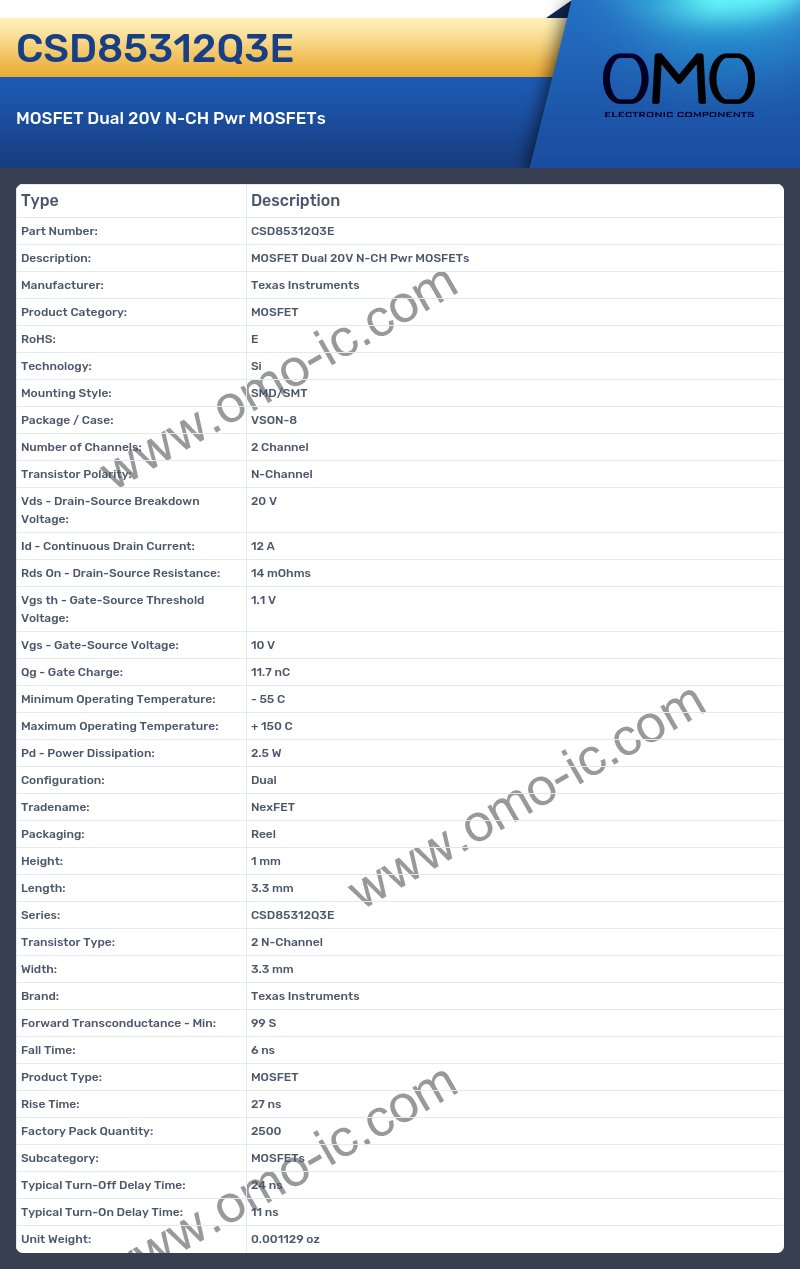

CSD85312Q3E Image

CSD85312Q3E Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: E
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSON-8
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 20 V
• Id - Continuous Drain Current: 12 A
• Rds On - Drain-Source Resistance: 14 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.1 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 11.7 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 2.5 W
• Configuration: Dual
• Tradename: NexFET
• Packaging: Reel
• Height: 1 mm
• Length: 3.3 mm
• Series: CSD85312Q3E
• Transistor Type: 2 N-Channel
• Width: 3.3 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 99 S
• Fall Time: 6 ns
• Product Type: MOSFET
• Rise Time: 27 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 24 ns
• Typical Turn-On Delay Time: 11 ns
• Unit Weight: 0.001129 oz
