CSD87503Q3ET

CSD87503Q3ET Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. VSON-8 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 30 V 10 A continuous drain current Rds On value of 17.3 mOhms Gate-Source Threshold Voltage Range: 1.3 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 15.6 W This product has a Dual configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 2 N-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 24 S, 24 S 8 ns, 8 ns fall time MOSFET product type Rise Time is 40 ns, 40 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 25 ns, 25 ns. The typical turn-on delay time is 10 ns, 10 ns.

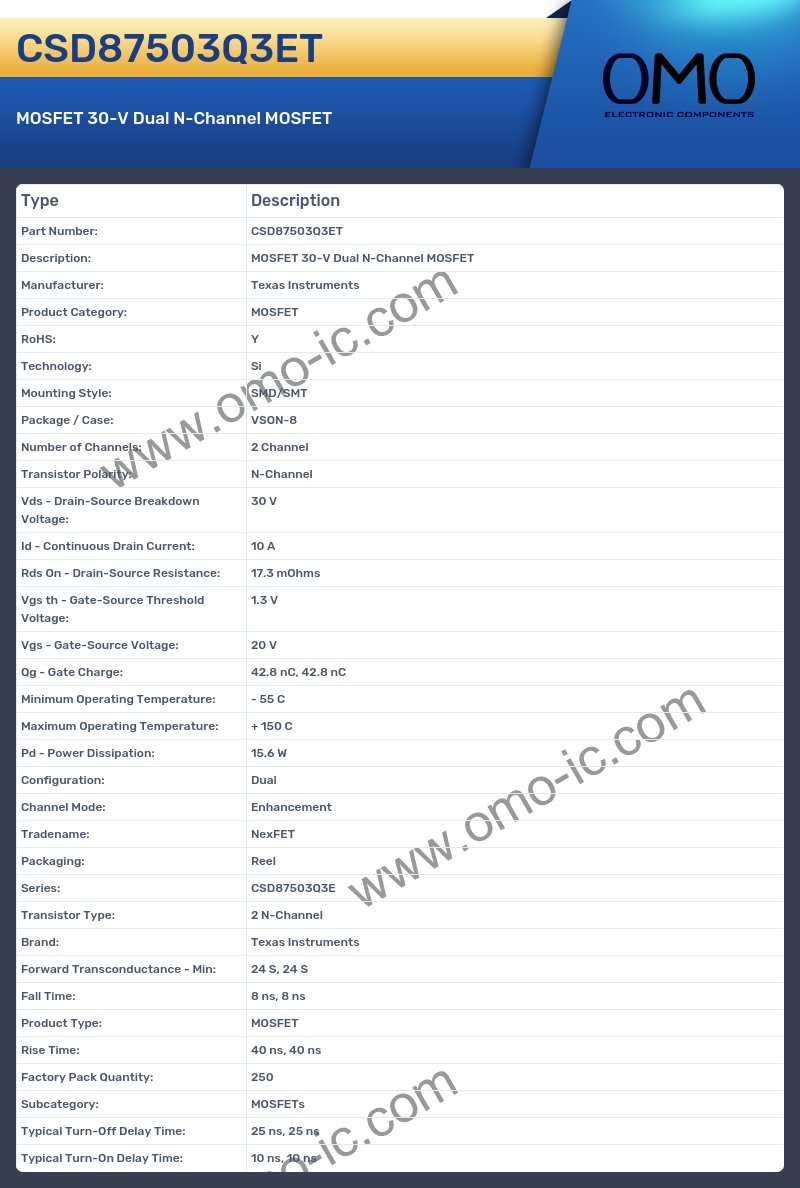

CSD87503Q3ET Image

CSD87503Q3ET Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: VSON-8
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 10 A
• Rds On - Drain-Source Resistance: 17.3 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.3 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 42.8 nC, 42.8 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 15.6 W
• Configuration: Dual
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Series: CSD87503Q3E
• Transistor Type: 2 N-Channel
• Brand: Texas Instruments
• Forward Transconductance - Min: 24 S, 24 S
• Fall Time: 8 ns, 8 ns
• Product Type: MOSFET
• Rise Time: 40 ns, 40 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 25 ns, 25 ns
• Typical Turn-On Delay Time: 10 ns, 10 ns
