INA101HPG4 Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 106 dB of 50 dB, ensuring reliable signal acquisition. This product has an 30 nA of 5 uA for precise signal processing. Supply Voltage - Max: 40 V Supply Voltage - Min: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. PDIP-14 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Instrumentation Amplifier. This product has a 300 kHz of 2.7 GHz to 3.5 GHz. The height of the product is 4.57 mm. 19.3 mm long Instrumentation Amplifiers Texas Instruments is a trusted brand for quality electronics Bandwidth at -3 dB is 25 kHz 0.002 % is 0.2%. Gain ratio is 1 V/V to 1000 V/V. INL is within 0.002 % 10 V to 40 V operating supply voltage range 600 mW Instrumentation Amplifiers product type 25 of 100 Amplifier ICs as subcategory 1. 0.057144 oz of Unit Weight

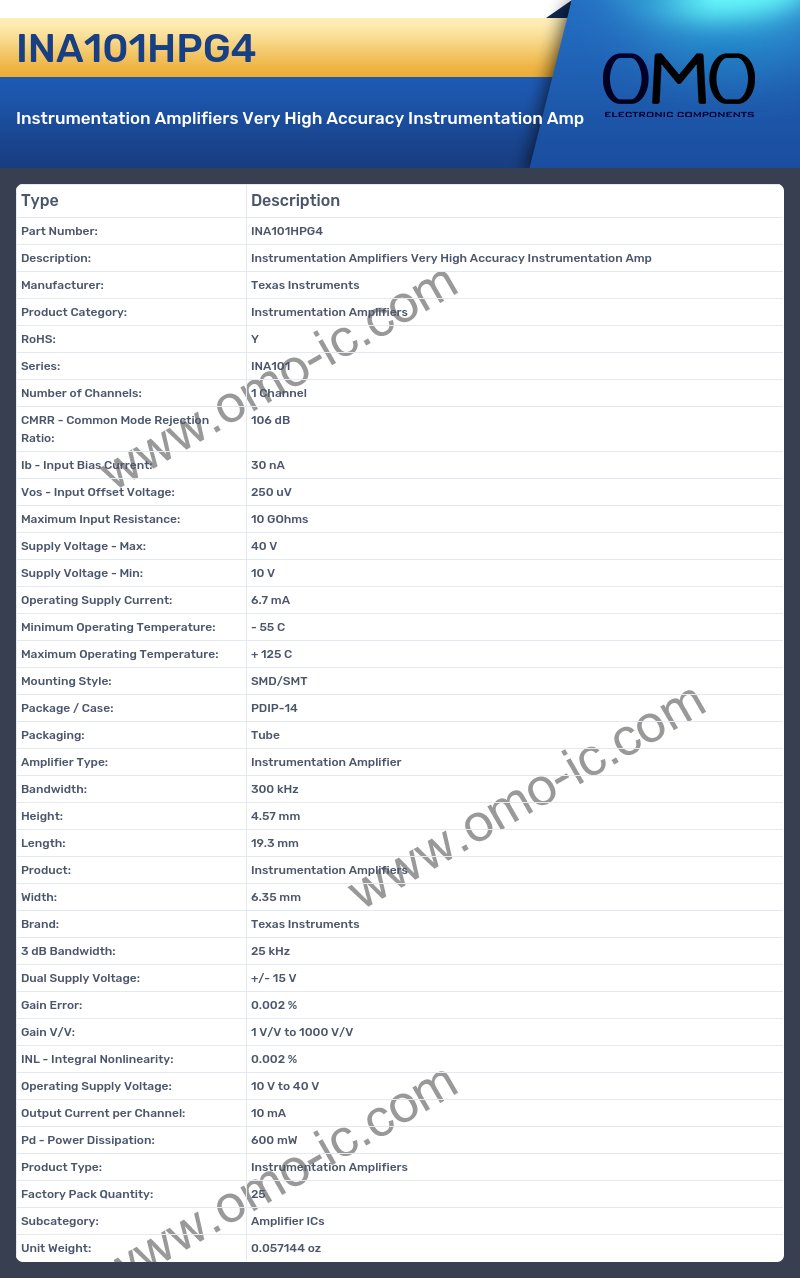

INA101HPG4 Image

INA101HPG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: INA101
• Number of Channels: 1 Channel
• CMRR - Common Mode Rejection Ratio: 106 dB
• Ib - Input Bias Current: 30 nA
• Vos - Input Offset Voltage: 250 uV
• Maximum Input Resistance: 10 GOhms
• Supply Voltage - Max: 40 V
• Supply Voltage - Min: 10 V
• Operating Supply Current: 6.7 mA
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: PDIP-14
• Packaging: Tube
• Amplifier Type: Instrumentation Amplifier
• Bandwidth: 300 kHz
• Height: 4.57 mm
• Length: 19.3 mm
• Product: Instrumentation Amplifiers
• Width: 6.35 mm
• Brand: Texas Instruments
• 3 dB Bandwidth: 25 kHz
• Dual Supply Voltage: +/- 15 V
• Gain Error: 0.002 %
• Gain V/V: 1 V/V to 1000 V/V
• INL - Integral Nonlinearity: 0.002 %
• Operating Supply Voltage: 10 V to 40 V
• Output Current per Channel: 10 mA
• Pd - Power Dissipation: 600 mW
• Product Type: Instrumentation Amplifiers
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Unit Weight: 0.057144 oz
