INA240A1D

INA240A1D Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 120 dB of 50 dB, ensuring reliable signal acquisition. This product has an 90 uA of 5 uA for precise signal processing. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Tube packaging for easy dispensing The accuracy of this product is 0.02 %. The amplifier type is High Side, Low Side. The output type is Voltage. Current Sense Amplifiers Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Zero-Drift Topology Bandwidth at -3 dB is 400 kHz INA240EVM is a versatile development platform for hardware and software 0.05 % is 0.2%. Gain ratio is 20 V/V. Yes regarding Moisture Sensitivity Current Sense Amplifiers product type 75 of 100 Amplifier ICs as subcategory 1. 0.003947 oz of Unit Weight

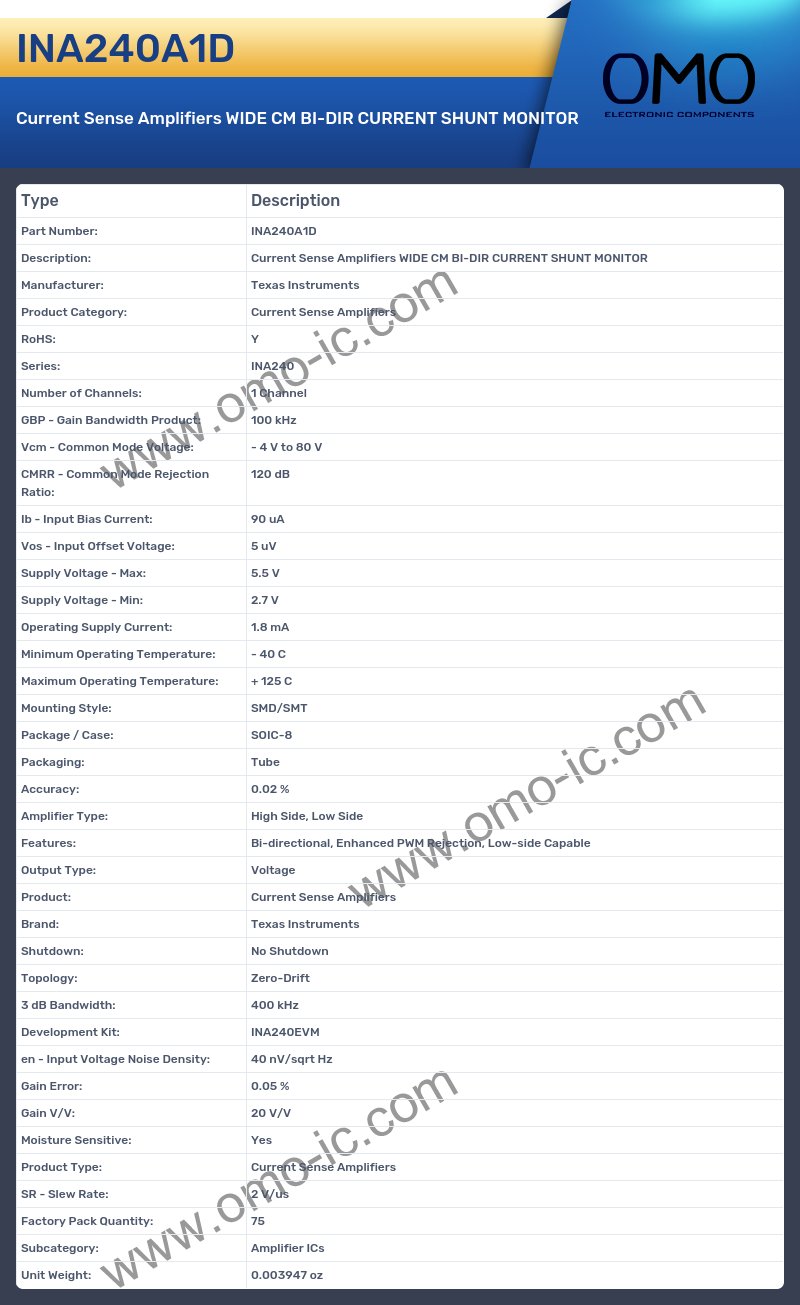

INA240A1D Image

INA240A1D Specifications

• Manufacturer: Texas Instruments
• Product Category: Current Sense Amplifiers
• RoHS: Y
• Series: INA240
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 100 kHz
• Vcm - Common Mode Voltage: - 4 V to 80 V
• CMRR - Common Mode Rejection Ratio: 120 dB
• Ib - Input Bias Current: 90 uA
• Vos - Input Offset Voltage: 5 uV
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Operating Supply Current: 1.8 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Packaging: Tube
• Accuracy: 0.02 %
• Amplifier Type: High Side, Low Side
• Features: Bi-directional, Enhanced PWM Rejection, Low-side Capable
• Output Type: Voltage
• Product: Current Sense Amplifiers
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Topology: Zero-Drift
• 3 dB Bandwidth: 400 kHz
• Development Kit: INA240EVM
• en - Input Voltage Noise Density: 40 nV/sqrt Hz
• Gain Error: 0.05 %
• Gain V/V: 20 V/V
• Moisture Sensitive: Yes
• Product Type: Current Sense Amplifiers
• SR - Slew Rate: 2 V/us
• Factory Pack Quantity: 75
• Subcategory: Amplifier ICs
• Unit Weight: 0.003947 oz
