LM5101BSDX

LM5101BSDX Overview

This product is manufactured by Texas Instruments. This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. LLP-10 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 2 A Rise Time is 570 ns. 430 ns fall time Supply Voltage - Min: 9 V Supply Voltage - Max: 14 V Maximum propagation delay: 26 ns The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 0.8 mm. 4 mm long Texas Instruments is a trusted brand for quality electronics TTL. 4 ns maximum turn-off delay time The 4 ns. Gate Drivers product type 4500 of 100 PMIC - Power Management ICs as subcategory

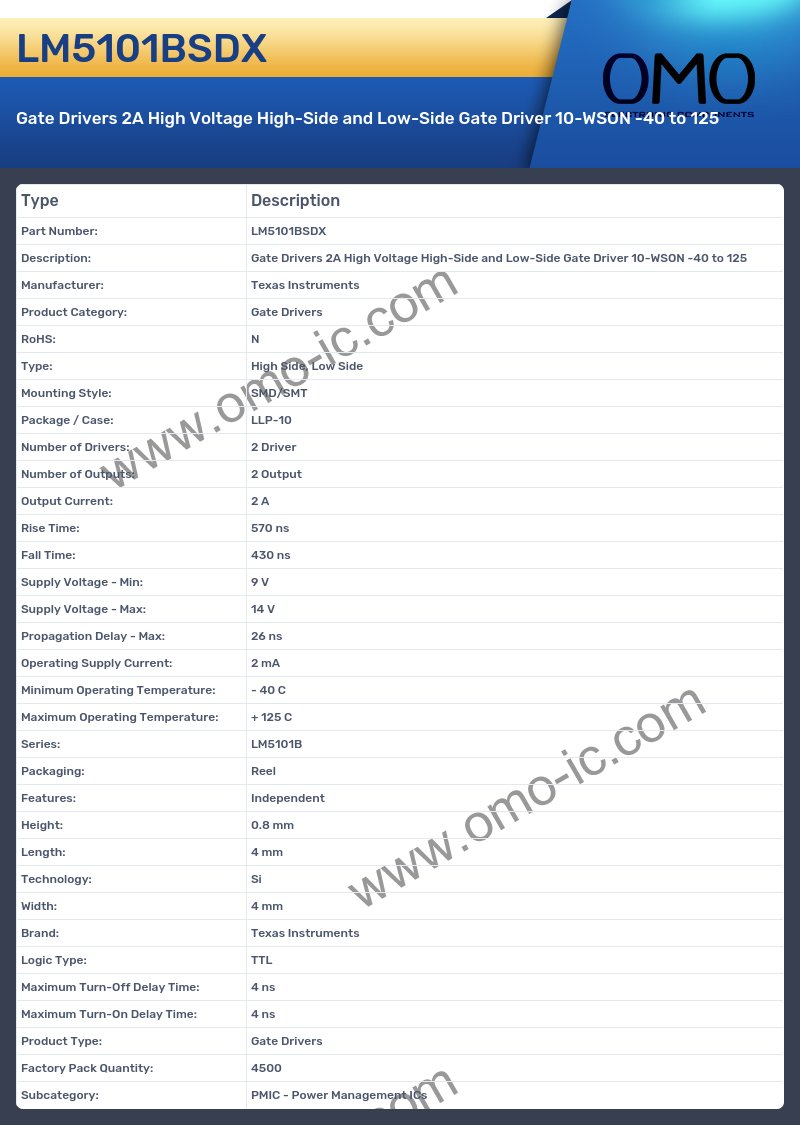

LM5101BSDX Image

LM5101BSDX Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: N
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: LLP-10
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 2 A
• Rise Time: 570 ns
• Fall Time: 430 ns
• Supply Voltage - Min: 9 V
• Supply Voltage - Max: 14 V
• Propagation Delay - Max: 26 ns
• Operating Supply Current: 2 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: LM5101B
• Packaging: Reel
• Features: Independent
• Height: 0.8 mm
• Length: 4 mm
• Technology: Si
• Width: 4 mm
• Brand: Texas Instruments
• Logic Type: TTL
• Maximum Turn-Off Delay Time: 4 ns
• Maximum Turn-On Delay Time: 4 ns
• Product Type: Gate Drivers
• Factory Pack Quantity: 4500
• Subcategory: PMIC - Power Management ICs
