LM5106MM

LM5106MM Overview

This product is manufactured by Texas Instruments. This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. MSOP-10 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 1.8 A Rise Time is 15 ns. 10 ns fall time Supply Voltage - Min: 8 V Supply Voltage - Max: 14 V Maximum propagation delay: 56 ns The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing The height of the product is 0.86 mm. 3 mm long Texas Instruments is a trusted brand for quality electronics TTL. 7.6 V to 14 V operating supply voltage range Gate Drivers product type 1000 of 100 PMIC - Power Management ICs as subcategory

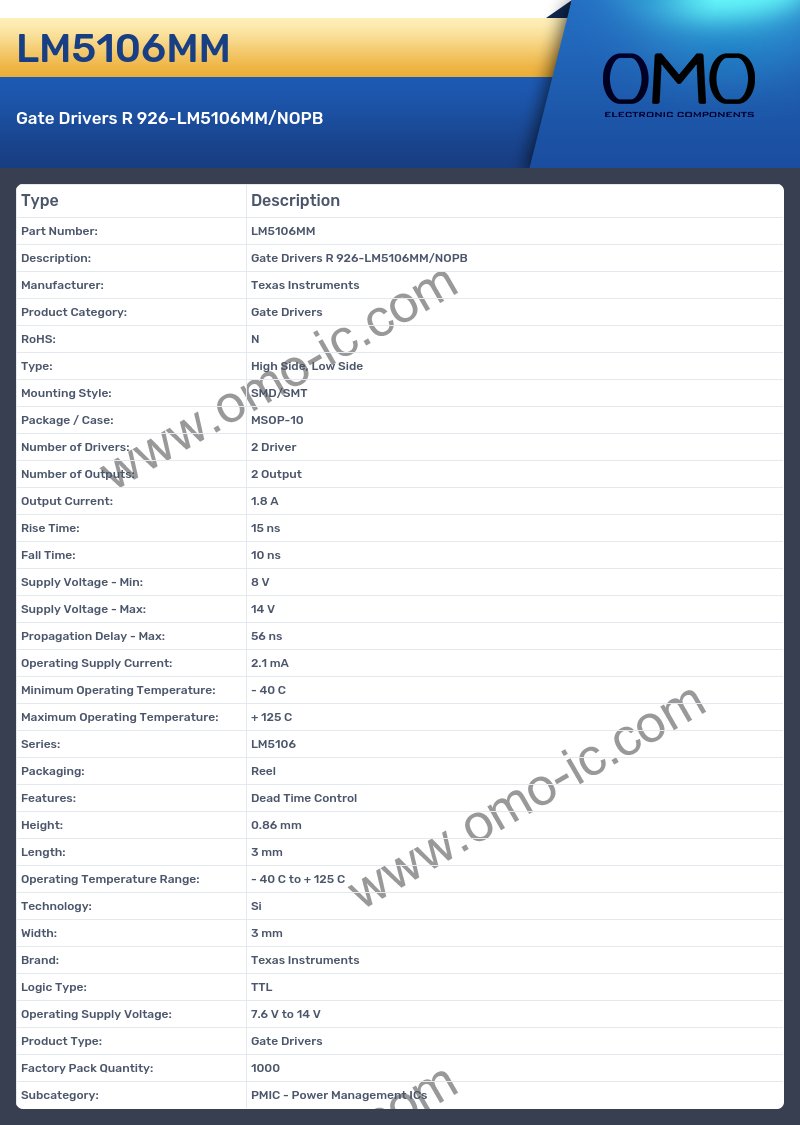

LM5106MM Image

LM5106MM Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: N
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: MSOP-10
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 1.8 A
• Rise Time: 15 ns
• Fall Time: 10 ns
• Supply Voltage - Min: 8 V
• Supply Voltage - Max: 14 V
• Propagation Delay - Max: 56 ns
• Operating Supply Current: 2.1 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: LM5106
• Packaging: Reel
• Features: Dead Time Control
• Height: 0.86 mm
• Length: 3 mm
• Operating Temperature Range: - 40 C to + 125 C
• Technology: Si
• Width: 3 mm
• Brand: Texas Instruments
• Logic Type: TTL
• Operating Supply Voltage: 7.6 V to 14 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
