NE5534AD

NE5534AD Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. Supply Voltage - Max: 30 V This product is equipped with 1 Channel for efficient performance. This product has a 70 dB to 100 dB of 50 dB, ensuring reliable signal acquisition. This product has an 1.5 uA of 5 uA for precise signal processing. Supply Voltage - Min: 10 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Low Noise Operational Amplifiers. The height of the product is 1.58 mm. 4.9 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 1.5 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is 15 V. 5 V minimum dual supply voltage Yes regarding Moisture Sensitivity 5 V to 15 V operating supply voltage range Op Amps - Operational Amplifiers product type 75 of 100 Amplifier ICs as subcategory 1. 0.002561 oz of Unit Weight

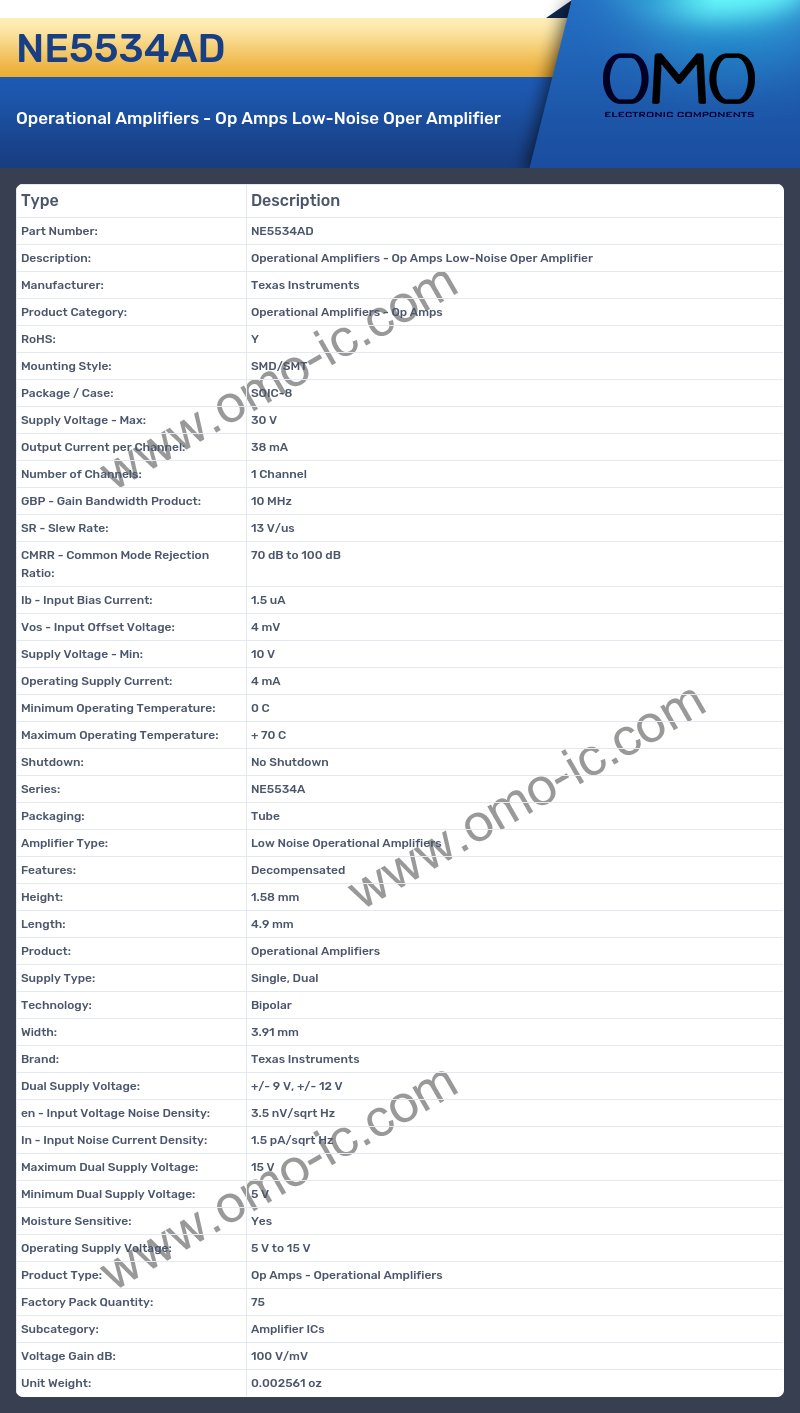

NE5534AD Image

NE5534AD Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Supply Voltage - Max: 30 V
• Output Current per Channel: 38 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 10 MHz
• SR - Slew Rate: 13 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB to 100 dB
• Ib - Input Bias Current: 1.5 uA
• Vos - Input Offset Voltage: 4 mV
• Supply Voltage - Min: 10 V
• Operating Supply Current: 4 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Shutdown: No Shutdown
• Series: NE5534A
• Packaging: Tube
• Amplifier Type: Low Noise Operational Amplifiers
• Features: Decompensated
• Height: 1.58 mm
• Length: 4.9 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 9 V, +/- 12 V
• en - Input Voltage Noise Density: 3.5 nV/sqrt Hz
• In - Input Noise Current Density: 1.5 pA/sqrt Hz
• Maximum Dual Supply Voltage: 15 V
• Minimum Dual Supply Voltage: 5 V
• Moisture Sensitive: Yes
• Operating Supply Voltage: 5 V to 15 V
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 75
• Subcategory: Amplifier ICs
• Voltage Gain dB: 100 V/mV
• Unit Weight: 0.002561 oz
