OPA2241PAG4

OPA2241PAG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Supply Voltage - Max: 36 V This product is equipped with 2 Channel for efficient performance. This product has a 100 dB to 124 dB of 50 dB, ensuring reliable signal acquisition. This product has an 20 nA of 5 uA for precise signal processing. Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a No Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Low Offset Voltage Amplifier. The height of the product is 4.57 mm. Rail-to-Rail input type 9.81 mm long The output type is Rail-to-Rail. Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.04 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 18 V. +/- 1.35 V minimum dual supply voltage 2.7 V to 36 V, +/- 1.35 V to +/- 18 V operating supply voltage range Op Amps - Operational Amplifiers product type This product has a 110.46 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.018646 oz of Unit Weight

OPA2241PAG4 Image

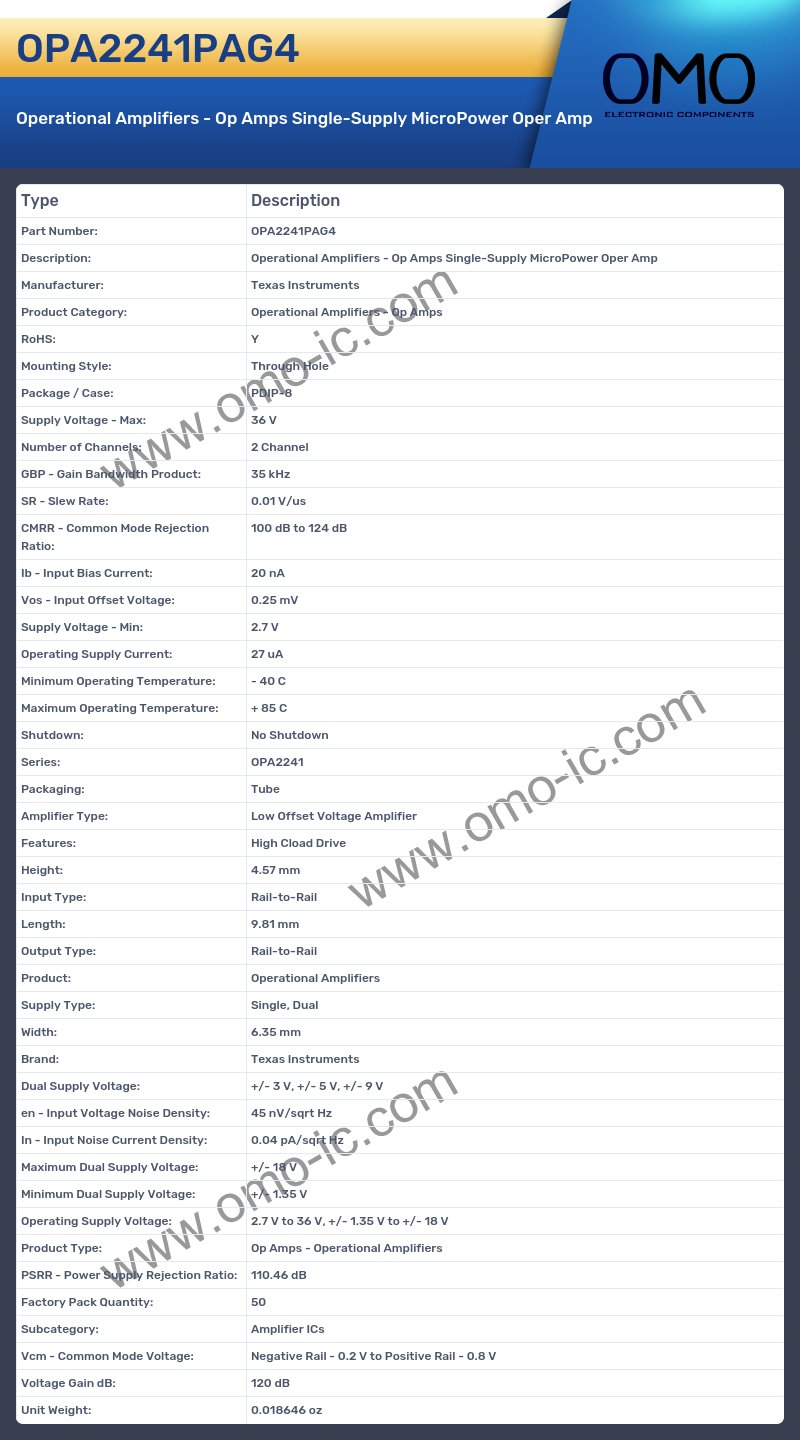

OPA2241PAG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Supply Voltage - Max: 36 V
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 35 kHz
• SR - Slew Rate: 0.01 V/us
• CMRR - Common Mode Rejection Ratio: 100 dB to 124 dB
• Ib - Input Bias Current: 20 nA
• Vos - Input Offset Voltage: 0.25 mV
• Supply Voltage - Min: 2.7 V
• Operating Supply Current: 27 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: No Shutdown
• Series: OPA2241
• Packaging: Tube
• Amplifier Type: Low Offset Voltage Amplifier
• Features: High Cload Drive
• Height: 4.57 mm
• Input Type: Rail-to-Rail
• Length: 9.81 mm
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 6.35 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
• en - Input Voltage Noise Density: 45 nV/sqrt Hz
• In - Input Noise Current Density: 0.04 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 1.35 V
• Operating Supply Voltage: 2.7 V to 36 V, +/- 1.35 V to +/- 18 V
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 110.46 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail - 0.2 V to Positive Rail - 0.8 V
• Voltage Gain dB: 120 dB
• Unit Weight: 0.018646 oz
