PCM1702P-JG4

PCM1702P-JG4 Overview

This product is manufactured by Texas Instruments. Interface Type: Serial The sampling rate of this product is 768 kS/s. 5.25 V operating supply voltage range The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 4.57 mm. 19.3 mm long The output type is Current. Audio DACs Supply Type: Dual Sign-Magnitude architecture Texas Instruments is a trusted brand for quality electronics This product is equipped with 2 Channel for efficient performance. +/- 3 % FSR is 0.2%. INL is within +/- 0.5 dB 250 mW Polarity type: Bipolar Audio D/A Converter ICs product type 25 of 100 Audio ICs as subcategory Supply Voltage - Max: +/- 5.25 V Supply Voltage - Min: +/- 4.75 V 1. 0.037038 oz of Unit Weight

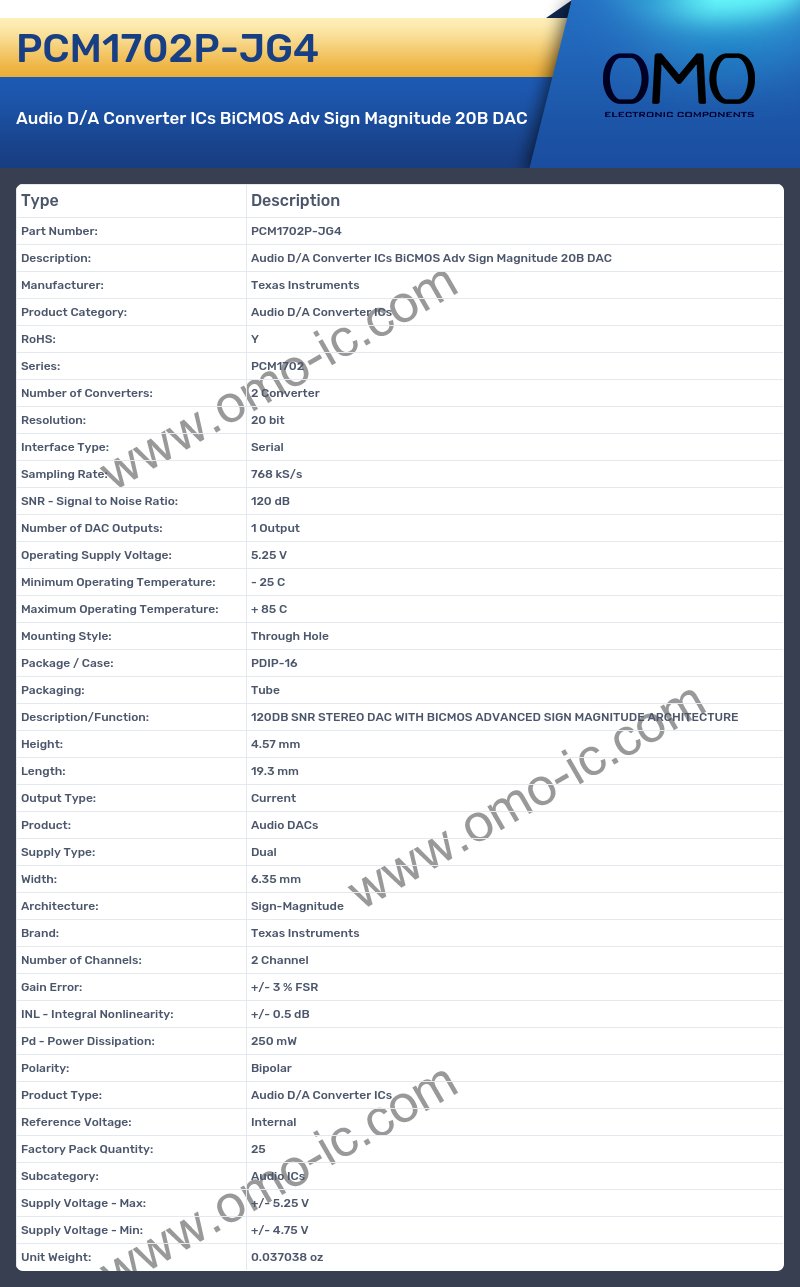

PCM1702P-JG4 Image

PCM1702P-JG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Audio D/A Converter ICs
• RoHS: Y
• Series: PCM1702
• Number of Converters: 2 Converter
• Resolution: 20 bit
• Interface Type: Serial
• Sampling Rate: 768 kS/s
• SNR - Signal to Noise Ratio: 120 dB
• Number of DAC Outputs: 1 Output
• Operating Supply Voltage: 5.25 V
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Description/Function: 120DB SNR STEREO DAC WITH BICMOS ADVANCED SIGN MAGNITUDE ARCHITECTURE
• Height: 4.57 mm
• Length: 19.3 mm
• Output Type: Current
• Product: Audio DACs
• Supply Type: Dual
• Width: 6.35 mm
• Architecture: Sign-Magnitude
• Brand: Texas Instruments
• Number of Channels: 2 Channel
• Gain Error: +/- 3 % FSR
• INL - Integral Nonlinearity: +/- 0.5 dB
• Pd - Power Dissipation: 250 mW
• Polarity: Bipolar
• Product Type: Audio D/A Converter ICs
• Reference Voltage: Internal
• Factory Pack Quantity: 25
• Subcategory: Audio ICs
• Supply Voltage - Max: +/- 5.25 V
• Supply Voltage - Min: +/- 4.75 V
• Unit Weight: 0.037038 oz
