SN74ABT863DW

SN74ABT863DW Overview

This product is manufactured by Texas Instruments. The product uses the ABT logic family. The product's TTL input level ensures compatibility with a wide range of devices. TTL Output Level for flexible output configuration The output type is 3-State. This product has a - 32 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 64 mA The propagation delay time is 5.7 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Bus Transceiver The height of the product is 2.35 mm. 15.4 mm long This product has 1 circuit. Standard Transceiver Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 9 for efficient performance. Maximum supply current: 30 mA 4.5 V to 5.5 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 25 of 100 Logic ICs as subcategory 1. 0.022025 oz of Unit Weight

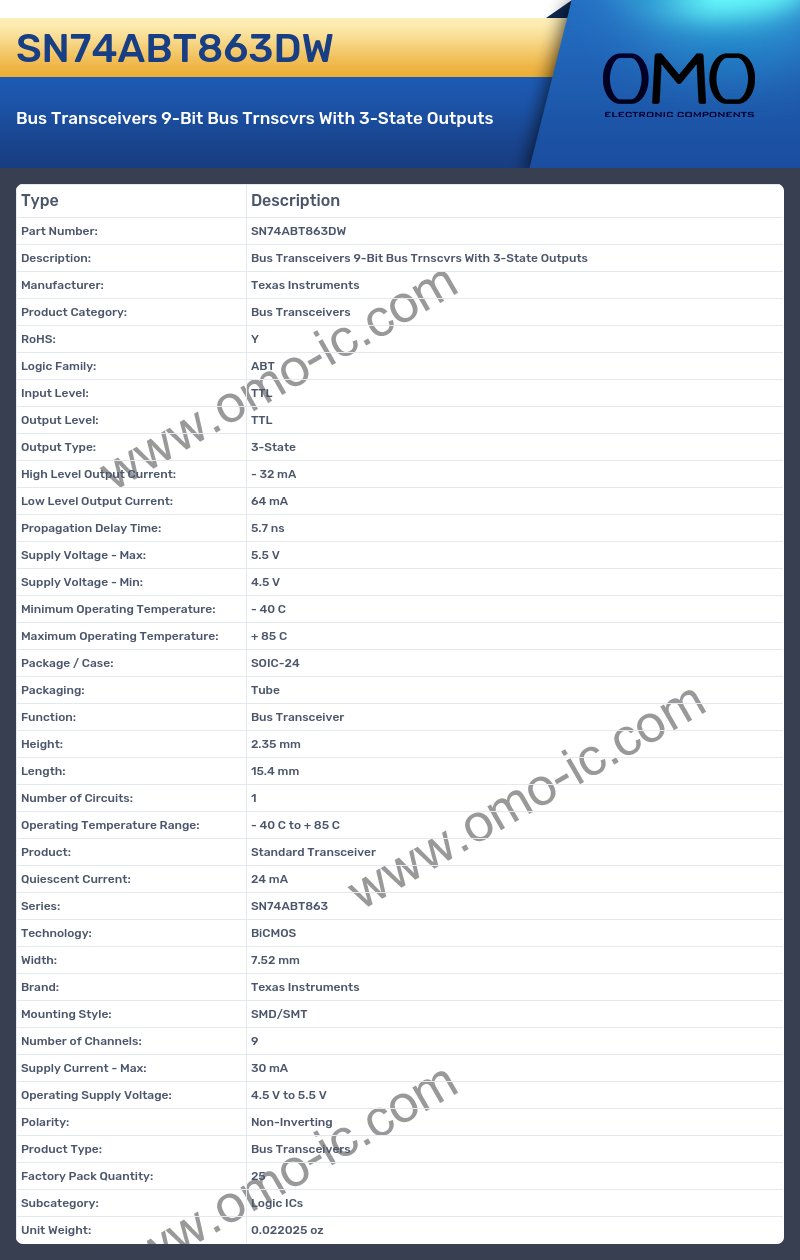

SN74ABT863DW Image

SN74ABT863DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: ABT
• Input Level: TTL
• Output Level: TTL
• Output Type: 3-State
• High Level Output Current: - 32 mA
• Low Level Output Current: 64 mA
• Propagation Delay Time: 5.7 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: SOIC-24
• Packaging: Tube
• Function: Bus Transceiver
• Height: 2.35 mm
• Length: 15.4 mm
• Number of Circuits: 1
• Operating Temperature Range: - 40 C to + 85 C
• Product: Standard Transceiver
• Quiescent Current: 24 mA
• Series: SN74ABT863
• Technology: BiCMOS
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 9
• Supply Current - Max: 30 mA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 25
• Subcategory: Logic ICs
• Unit Weight: 0.022025 oz
