SN74ACT74DG4

SN74ACT74DG4 Overview

This product is manufactured by Texas Instruments. This product has 2 circuit. The product uses the ACT logic family. D-Type Flip-Flop. Polarity type: Inverting/Non-Inverting TTL input type The output type is CMOS. The propagation delay time is 11 ns. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a D-Type The height of the product is 1.58 mm. 8.65 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 2 for efficient performance. 5 V operating supply voltage range Flip Flops product type Set, Reset Reset Type 50 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

SN74ACT74DG4 Image

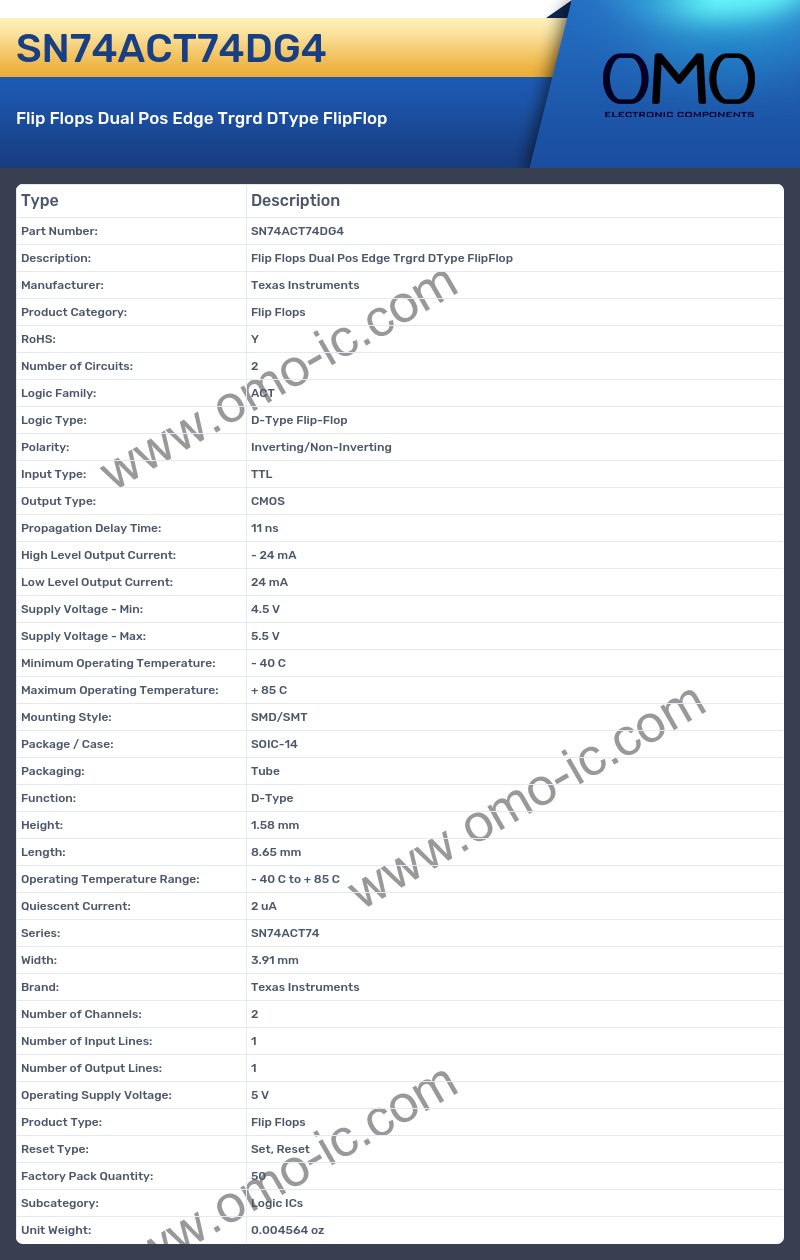

SN74ACT74DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 2
• Logic Family: ACT
• Logic Type: D-Type Flip-Flop
• Polarity: Inverting/Non-Inverting
• Input Type: TTL
• Output Type: CMOS
• Propagation Delay Time: 11 ns
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Tube
• Function: D-Type
• Height: 1.58 mm
• Length: 8.65 mm
• Operating Temperature Range: - 40 C to + 85 C
• Quiescent Current: 2 uA
• Series: SN74ACT74
• Width: 3.91 mm
• Brand: Texas Instruments
• Number of Channels: 2
• Number of Input Lines: 1
• Number of Output Lines: 1
• Operating Supply Voltage: 5 V
• Product Type: Flip Flops
• Reset Type: Set, Reset
• Factory Pack Quantity: 50
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
