SN74ACT86DG4 Overview

This product is manufactured by Texas Instruments. Single-Function Gate XOR logic function The product uses the ACT logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The propagation delay time is 10 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a XOR The height of the product is 1.58 mm. TTL input type 8.65 mm long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics CMOS. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 50 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

SN74ACT86DG4 Image

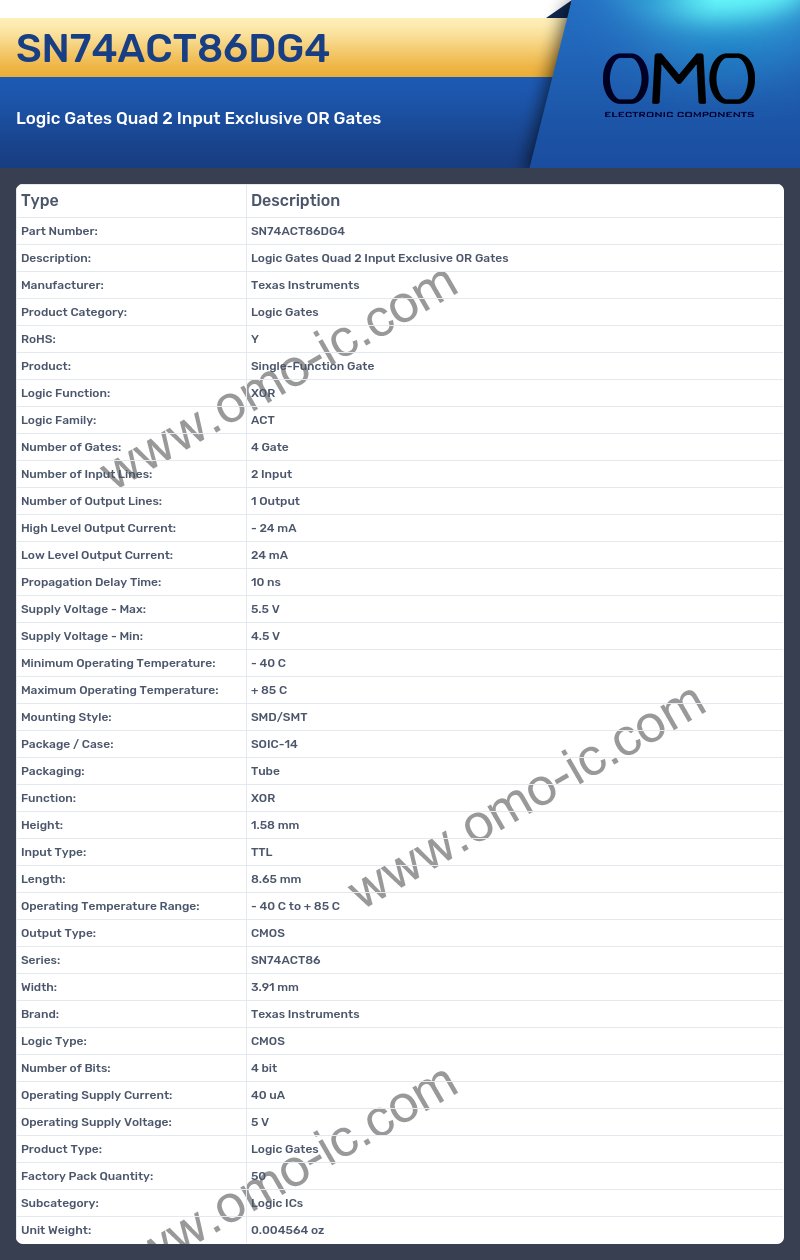

SN74ACT86DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: XOR
• Logic Family: ACT
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Propagation Delay Time: 10 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Tube
• Function: XOR
• Height: 1.58 mm
• Input Type: TTL
• Length: 8.65 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: CMOS
• Series: SN74ACT86
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: CMOS
• Number of Bits: 4 bit
• Operating Supply Current: 40 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 50
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
