SN74AHC158DBR

SN74AHC158DBR Overview

This product is manufactured by Texas Instruments. Selectors / Multiplexers The product uses the AHC logic family. Number of bits: 4 bit The propagation delay time is 11.5 ns. Supply Voltage - Min: 2 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Multiplexer The height of the product is 1.95 mm. 6.2 mm long This product has Quad circuit. Texas Instruments is a trusted brand for quality electronics Data Selectors/Multiplexers. This product has a - 8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA The Maximum Clock Frequency of this product is 110 MHz. 2 V to 5.5 V operating supply voltage range 300 mW Encoders, Decoders, Multiplexers & Demultiplexers product type 2000 of 100 Logic ICs as subcategory 1. 0.004536 oz of Unit Weight

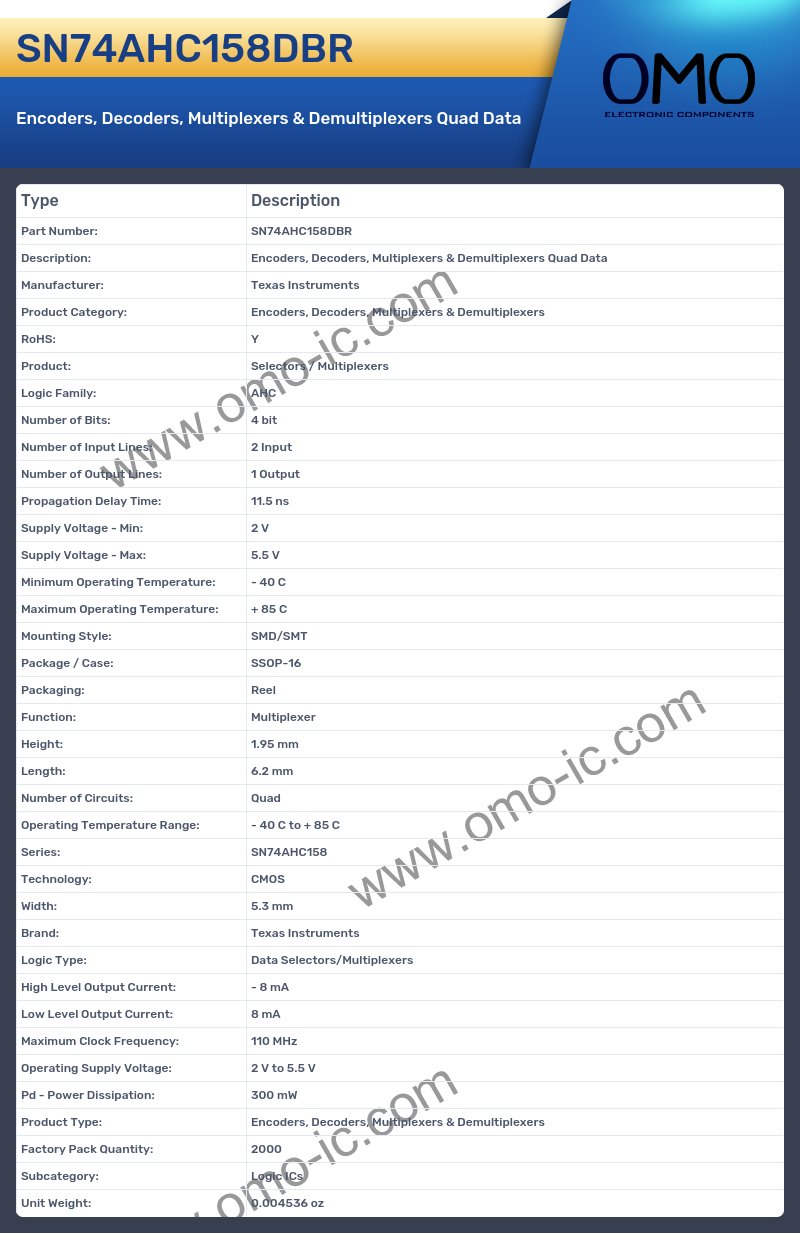

SN74AHC158DBR Image

SN74AHC158DBR Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Selectors / Multiplexers
• Logic Family: AHC
• Number of Bits: 4 bit
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• Propagation Delay Time: 11.5 ns
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-16
• Packaging: Reel
• Function: Multiplexer
• Height: 1.95 mm
• Length: 6.2 mm
• Number of Circuits: Quad
• Operating Temperature Range: - 40 C to + 85 C
• Series: SN74AHC158
• Technology: CMOS
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Type: Data Selectors/Multiplexers
• High Level Output Current: - 8 mA
• Low Level Output Current: 8 mA
• Maximum Clock Frequency: 110 MHz
• Operating Supply Voltage: 2 V to 5.5 V
• Pd - Power Dissipation: 300 mW
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.004536 oz
