SN74ALS580BDWE4

SN74ALS580BDWE4 Overview

This product is manufactured by Texas Instruments. This product has 8 Circuit circuit. D-Type Transparent Latch. The product uses the ALS logic family. Polarity type: Inverting This product has a - 2.6 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 18 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. SOIC-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Transparent The height of the product is 2.35 mm. 12.8 mm long The output type is 3-State. This device belongs to the D-Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 Channels for efficient performance. 5 V operating supply voltage range Latches product type No Reset Reset Type 1 of 100 Logic ICs as subcategory 1. 0.019048 oz of Unit Weight

SN74ALS580BDWE4 Image

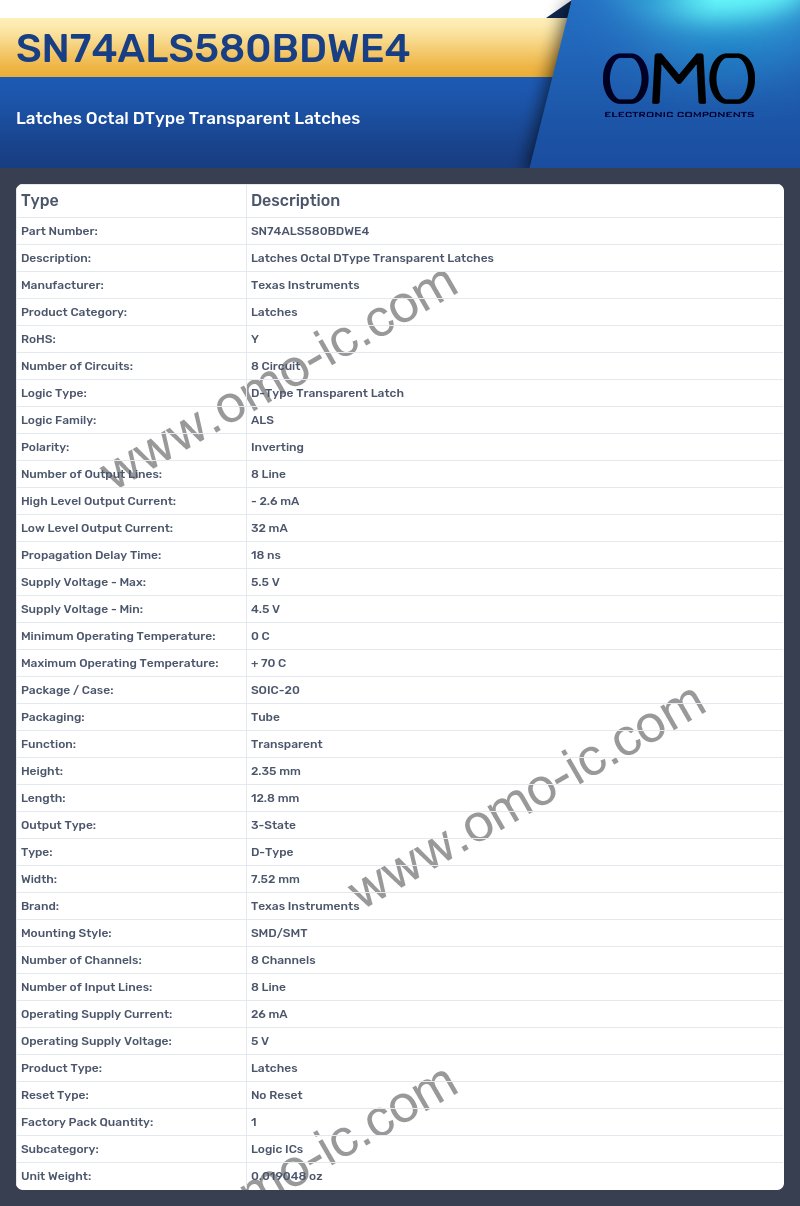

SN74ALS580BDWE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 8 Circuit
• Logic Type: D-Type Transparent Latch
• Logic Family: ALS
• Polarity: Inverting
• Number of Output Lines: 8 Line
• High Level Output Current: - 2.6 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 18 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: SOIC-20
• Packaging: Tube
• Function: Transparent
• Height: 2.35 mm
• Length: 12.8 mm
• Output Type: 3-State
• Type: D-Type
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8 Channels
• Number of Input Lines: 8 Line
• Operating Supply Current: 26 mA
• Operating Supply Voltage: 5 V
• Product Type: Latches
• Reset Type: No Reset
• Factory Pack Quantity: 1
• Subcategory: Logic ICs
• Unit Weight: 0.019048 oz
