SN74HCT74PW Overview

This product is manufactured by Texas Instruments. This product has 2 circuit. The product uses the HCT logic family. D-Type Edge Triggered Flip-Flop. Polarity type: Inverting/Non-Inverting TTL input type The output type is CMOS. The propagation delay time is 28 ns. This product has a - 4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 4 mA Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Tube packaging for easy dispensing t's a D-Type The height of the product is 1.15 mm. 5 mm long Texas Instruments is a trusted brand for quality electronics This product is equipped with 2 for efficient performance. 5 V operating supply voltage range Flip Flops product type Set, Reset Reset Type 90 of 100 Logic ICs as subcategory 1. 0.002018 oz of Unit Weight

SN74HCT74PW Image

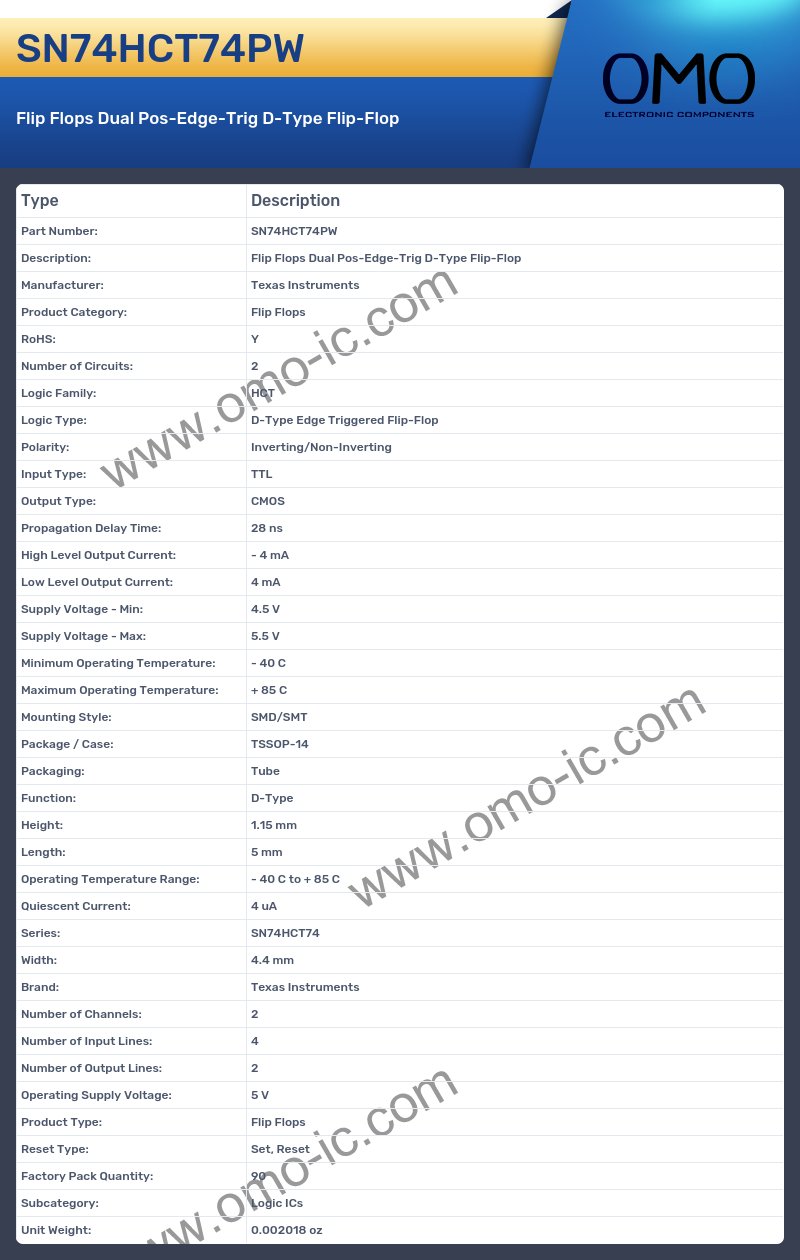

SN74HCT74PW Specifications

• Manufacturer: Texas Instruments
• Product Category: Flip Flops
• RoHS: Y
• Number of Circuits: 2
• Logic Family: HCT
• Logic Type: D-Type Edge Triggered Flip-Flop
• Polarity: Inverting/Non-Inverting
• Input Type: TTL
• Output Type: CMOS
• Propagation Delay Time: 28 ns
• High Level Output Current: - 4 mA
• Low Level Output Current: 4 mA
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Tube
• Function: D-Type
• Height: 1.15 mm
• Length: 5 mm
• Operating Temperature Range: - 40 C to + 85 C
• Quiescent Current: 4 uA
• Series: SN74HCT74
• Width: 4.4 mm
• Brand: Texas Instruments
• Number of Channels: 2
• Number of Input Lines: 4
• Number of Output Lines: 2
• Operating Supply Voltage: 5 V
• Product Type: Flip Flops
• Reset Type: Set, Reset
• Factory Pack Quantity: 90
• Subcategory: Logic ICs
• Unit Weight: 0.002018 oz
