SN74LS243DR

SN74LS243DR Overview

This product is manufactured by Texas Instruments. The product uses the LS logic family. The product's TTL input level ensures compatibility with a wide range of devices. TTL Output Level for flexible output configuration The output type is 3-State. This product has a - 15 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The propagation delay time is 18 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Bus Transceiver The height of the product is 1.58 mm. 8.65 mm long This product has 4 circuit. Standard Transceiver Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 4 for efficient performance. 4.75 V to 5.25 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 2500 of 100 Logic ICs as subcategory 1. 0.004564 oz of Unit Weight

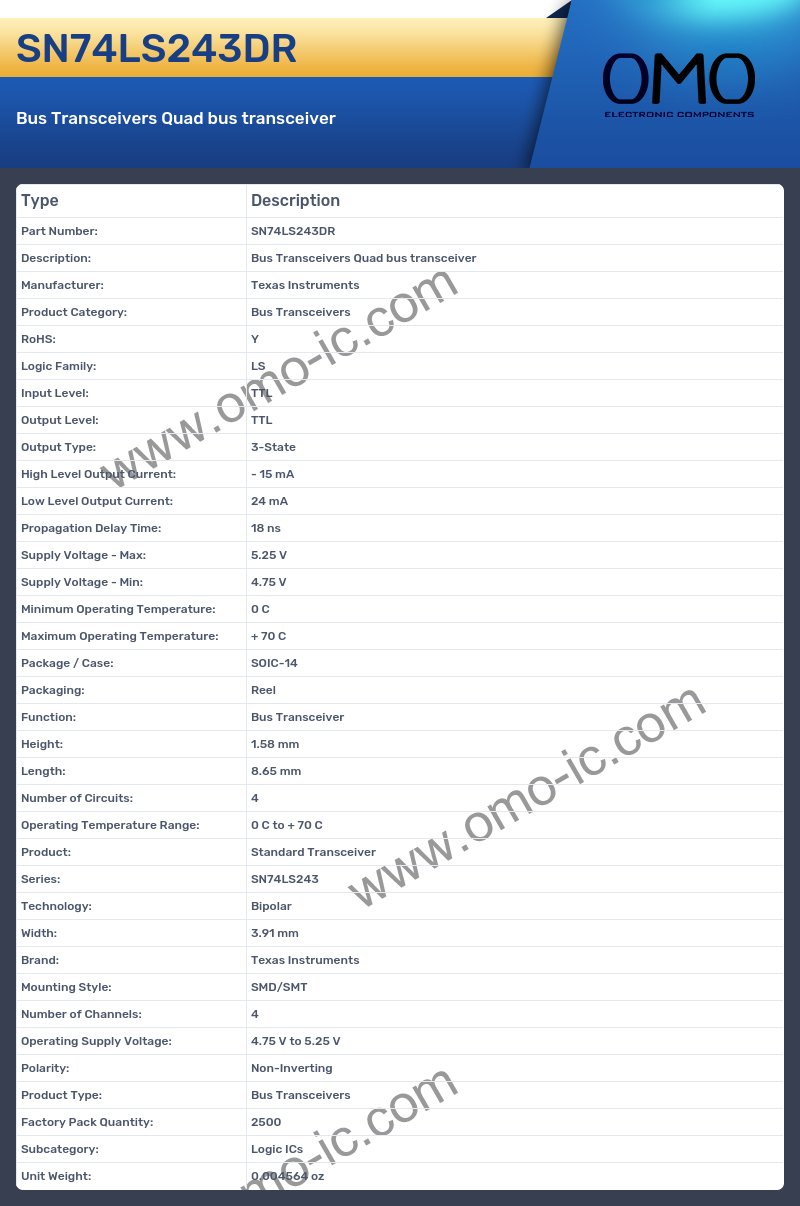

SN74LS243DR Image

SN74LS243DR Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: LS
• Input Level: TTL
• Output Level: TTL
• Output Type: 3-State
• High Level Output Current: - 15 mA
• Low Level Output Current: 24 mA
• Propagation Delay Time: 18 ns
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: SOIC-14
• Packaging: Reel
• Function: Bus Transceiver
• Height: 1.58 mm
• Length: 8.65 mm
• Number of Circuits: 4
• Operating Temperature Range: 0 C to + 70 C
• Product: Standard Transceiver
• Series: SN74LS243
• Technology: Bipolar
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 4
• Operating Supply Voltage: 4.75 V to 5.25 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.004564 oz
