SN74LV138ATDBR Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the LV-AT logic family. The propagation delay time is 13 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SSOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Decoder and Demux The height of the product is 1.95 mm. 6.2 mm long This product has 1 Circuit circuit. Texas Instruments is a trusted brand for quality electronics Decoders/Demultiplexers. Maximum supply current: 0.002 mA This product has a - 12 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 12 mA The Maximum Clock Frequency of this product is 70 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 2000 of 100 Logic ICs as subcategory 1. 0.004536 oz of Unit Weight

SN74LV138ATDBR Image

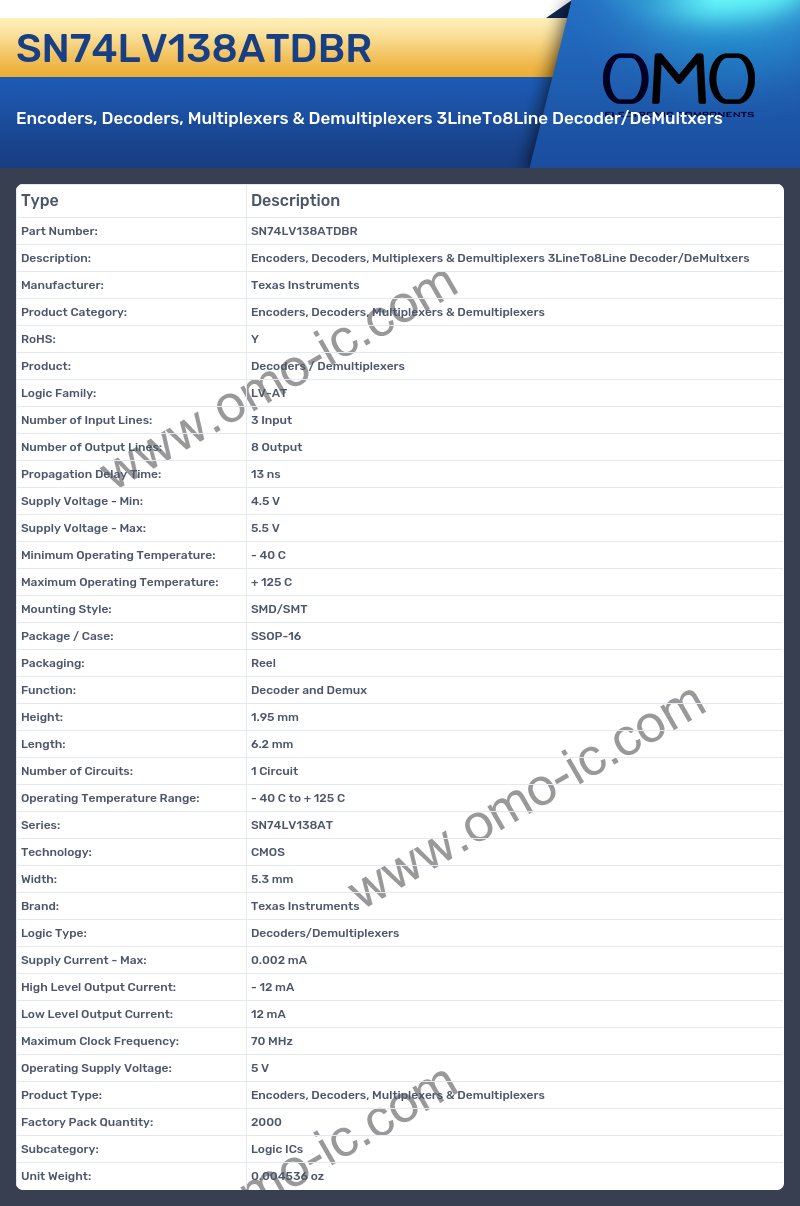

SN74LV138ATDBR Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: LV-AT
• Number of Input Lines: 3 Input
• Number of Output Lines: 8 Output
• Propagation Delay Time: 13 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SSOP-16
• Packaging: Reel
• Function: Decoder and Demux
• Height: 1.95 mm
• Length: 6.2 mm
• Number of Circuits: 1 Circuit
• Operating Temperature Range: - 40 C to + 125 C
• Series: SN74LV138AT
• Technology: CMOS
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Type: Decoders/Demultiplexers
• Supply Current - Max: 0.002 mA
• High Level Output Current: - 12 mA
• Low Level Output Current: 12 mA
• Maximum Clock Frequency: 70 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.004536 oz
