SN75138D Overview

This product is manufactured by Texas Instruments. The product's TTL input level ensures compatibility with a wide range of devices. TTL Output Level for flexible output configuration The output type is Open Collector. This product has a - 400 uA, ensuring reliable performance in demanding applications. Low Level Output Current is 100 mA The propagation delay time is 24 ns. Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Bus Transceiver The height of the product is 1.58 mm. 9.9 mm long This product has 1 circuit. Standard Transceiver Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 4 for efficient performance. 5 V operating supply voltage range 950 mW Polarity type: Non-Inverting Bus Transceivers product type 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

SN75138D Image

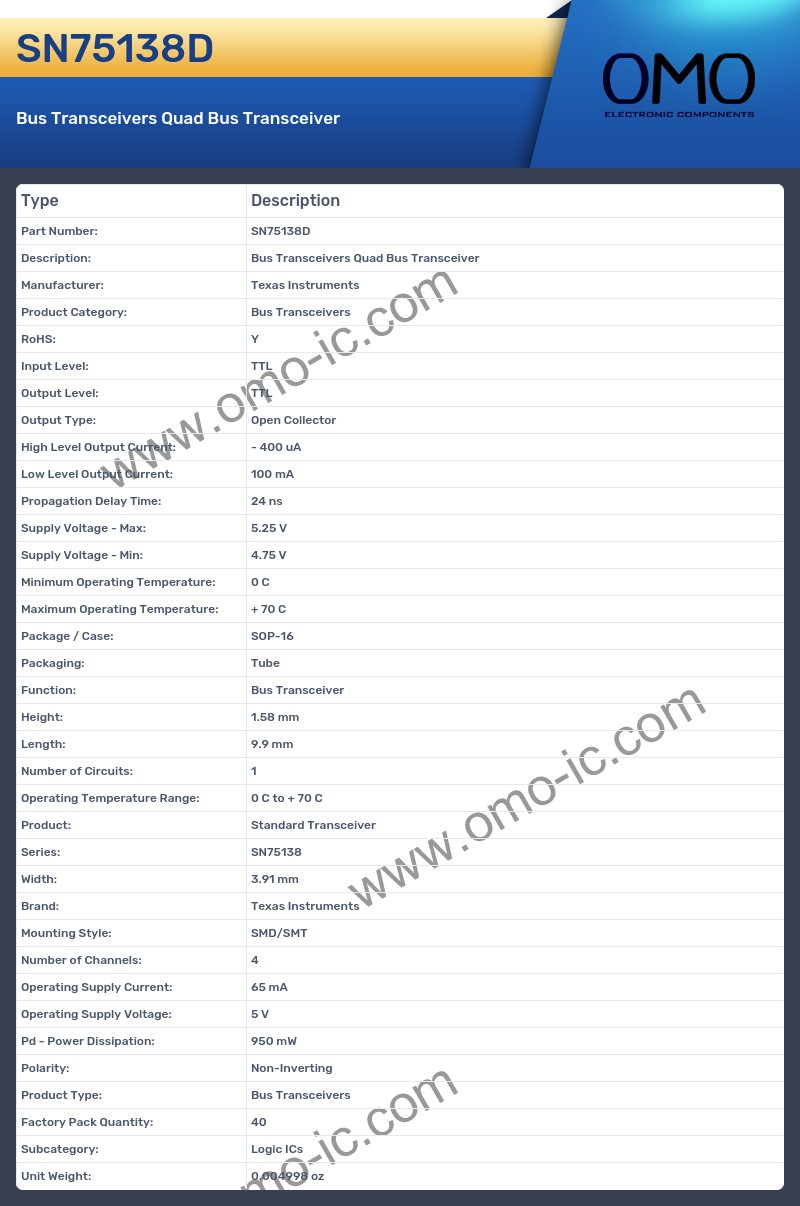

SN75138D Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Input Level: TTL
• Output Level: TTL
• Output Type: Open Collector
• High Level Output Current: - 400 uA
• Low Level Output Current: 100 mA
• Propagation Delay Time: 24 ns
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: SOP-16
• Packaging: Tube
• Function: Bus Transceiver
• Height: 1.58 mm
• Length: 9.9 mm
• Number of Circuits: 1
• Operating Temperature Range: 0 C to + 70 C
• Product: Standard Transceiver
• Series: SN75138
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 4
• Operating Supply Current: 65 mA
• Operating Supply Voltage: 5 V
• Pd - Power Dissipation: 950 mW
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
