STD25NF20

STD25NF20 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 200 V 18 A continuous drain current Rds On value of 125 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 110 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The Transistor Type is 1 N-Channel Power MOSFET. STMicroelectronics is a trusted brand for quality electronics 10 ns fall time MOSFET product type Rise Time is 30 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 40 ns. The typical turn-on delay time is 15 ns. 1. 0.139332 oz of Unit Weight

STD25NF20 Image

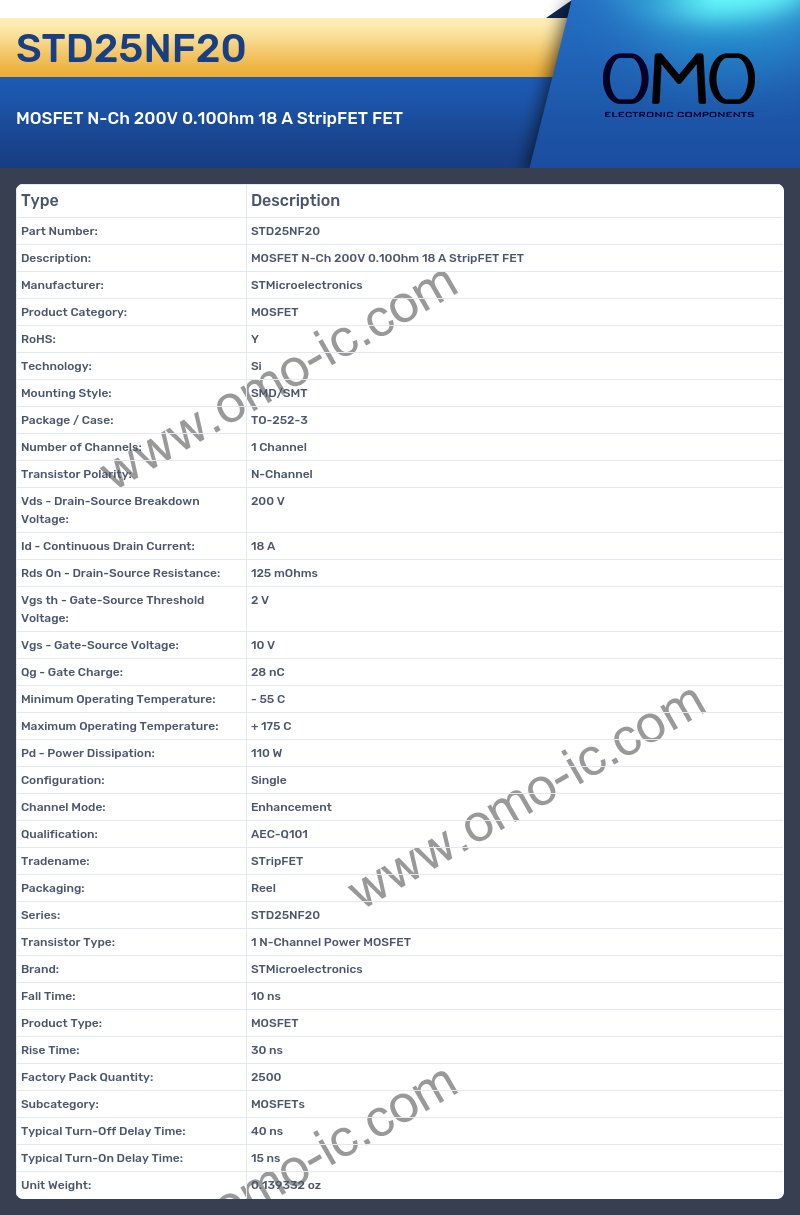

STD25NF20 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 200 V
• Id - Continuous Drain Current: 18 A
• Rds On - Drain-Source Resistance: 125 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 28 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 110 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: STripFET
• Packaging: Reel
• Series: STD25NF20
• Transistor Type: 1 N-Channel Power MOSFET
• Brand: STMicroelectronics
• Fall Time: 10 ns
• Product Type: MOSFET
• Rise Time: 30 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 40 ns
• Typical Turn-On Delay Time: 15 ns
• Unit Weight: 0.139332 oz
