STD2NK100Z Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 1 kV 1.85 A continuous drain current Rds On value of 8.5 Ohms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 70 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's SuperMESH is Blue Gecko. Reel packaging for easy dispensing The height of the product is 2.4 mm. 6.6 mm long The Transistor Type is 1 N-Channel Power MOSFET. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 2.4 S 32.5 ns fall time MOSFET product type Rise Time is 6.5 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 41.5 ns. The typical turn-on delay time is 7.2 ns. 1. 0.139332 oz of Unit Weight

STD2NK100Z Image

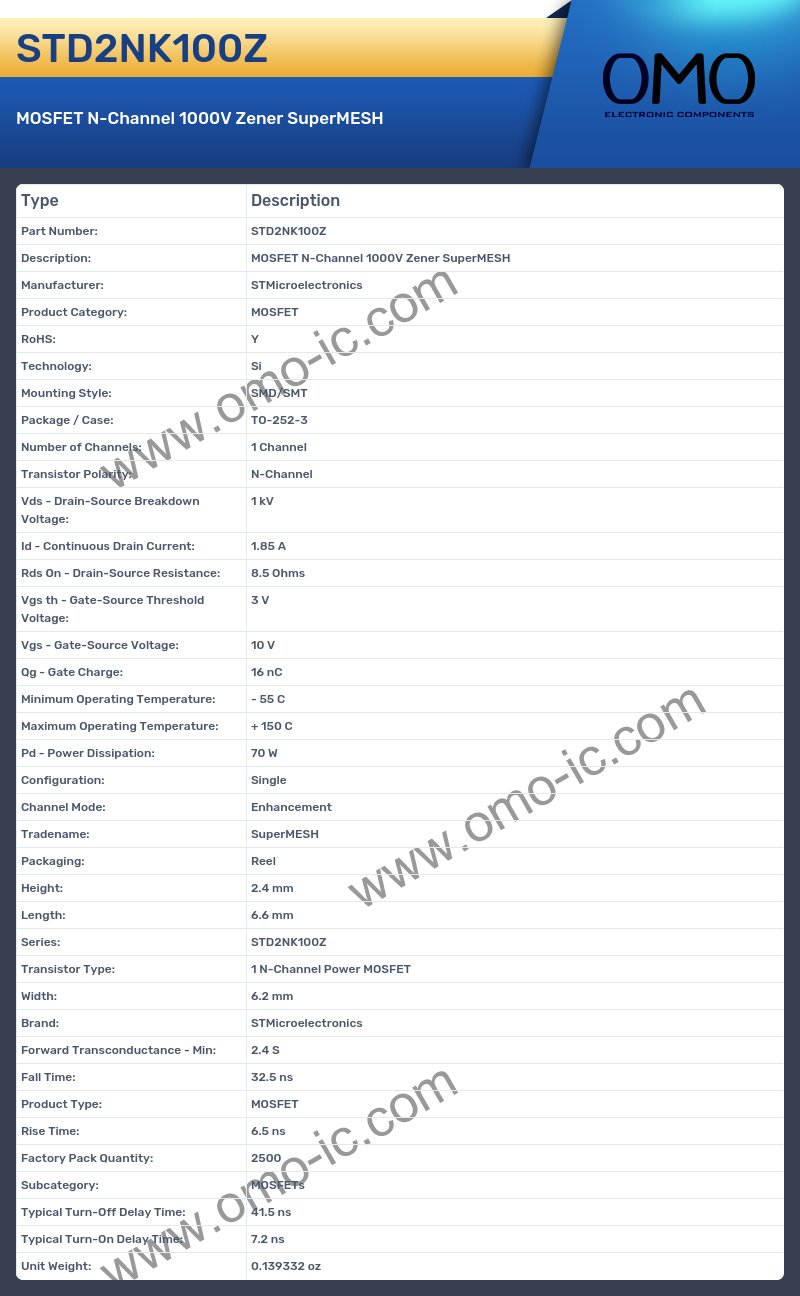

STD2NK100Z Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 1 kV
• Id - Continuous Drain Current: 1.85 A
• Rds On - Drain-Source Resistance: 8.5 Ohms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 16 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 70 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: SuperMESH
• Packaging: Reel
• Height: 2.4 mm
• Length: 6.6 mm
• Series: STD2NK100Z
• Transistor Type: 1 N-Channel Power MOSFET
• Width: 6.2 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 2.4 S
• Fall Time: 32.5 ns
• Product Type: MOSFET
• Rise Time: 6.5 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 41.5 ns
• Typical Turn-On Delay Time: 7.2 ns
• Unit Weight: 0.139332 oz
