STL120N8F7

STL120N8F7 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. PowerFLAT-5x6-8 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 80 V 120 A continuous drain current Rds On value of 4.4 mOhms Gate-Source Threshold Voltage Range: 4 V Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 140 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. The height of the product is 1 mm. 6.15 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 15.4 ns fall time MOSFET product type Rise Time is 16.8 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 60 ns. The typical turn-on delay time is 34.5 ns.

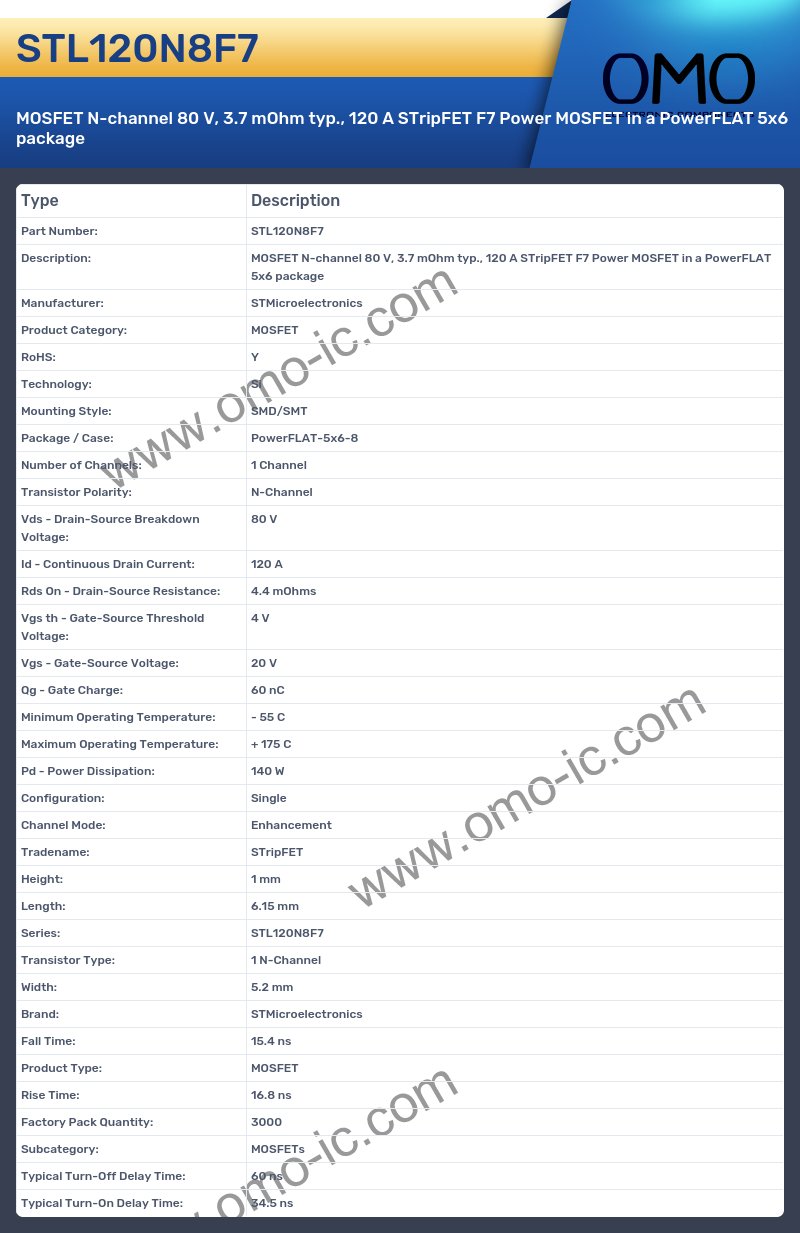

STL120N8F7 Image

STL120N8F7 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PowerFLAT-5x6-8
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 80 V
• Id - Continuous Drain Current: 120 A
• Rds On - Drain-Source Resistance: 4.4 mOhms
• Vgs th - Gate-Source Threshold Voltage: 4 V
• Vgs - Gate-Source Voltage: 20 V
• Qg - Gate Charge: 60 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 140 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Height: 1 mm
• Length: 6.15 mm
• Series: STL120N8F7
• Transistor Type: 1 N-Channel
• Width: 5.2 mm
• Brand: STMicroelectronics
• Fall Time: 15.4 ns
• Product Type: MOSFET
• Rise Time: 16.8 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 60 ns
• Typical Turn-On Delay Time: 34.5 ns
