STP20NK50Z

STP20NK50Z Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 500 V 17 A continuous drain current Rds On value of 270 mOhms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 10 V The product can operate at a maximum temperature of + 150 C. 190 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's SuperMESH is Blue Gecko. Tube packaging for easy dispensing The height of the product is 9.15 mm. 10.4 mm long The Transistor Type is 1 N-Channel Power MOSFET. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics 15 ns fall time MOSFET product type Rise Time is 20 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 70 ns. The typical turn-on delay time is 28 ns. 1. 0.050717 oz of Unit Weight

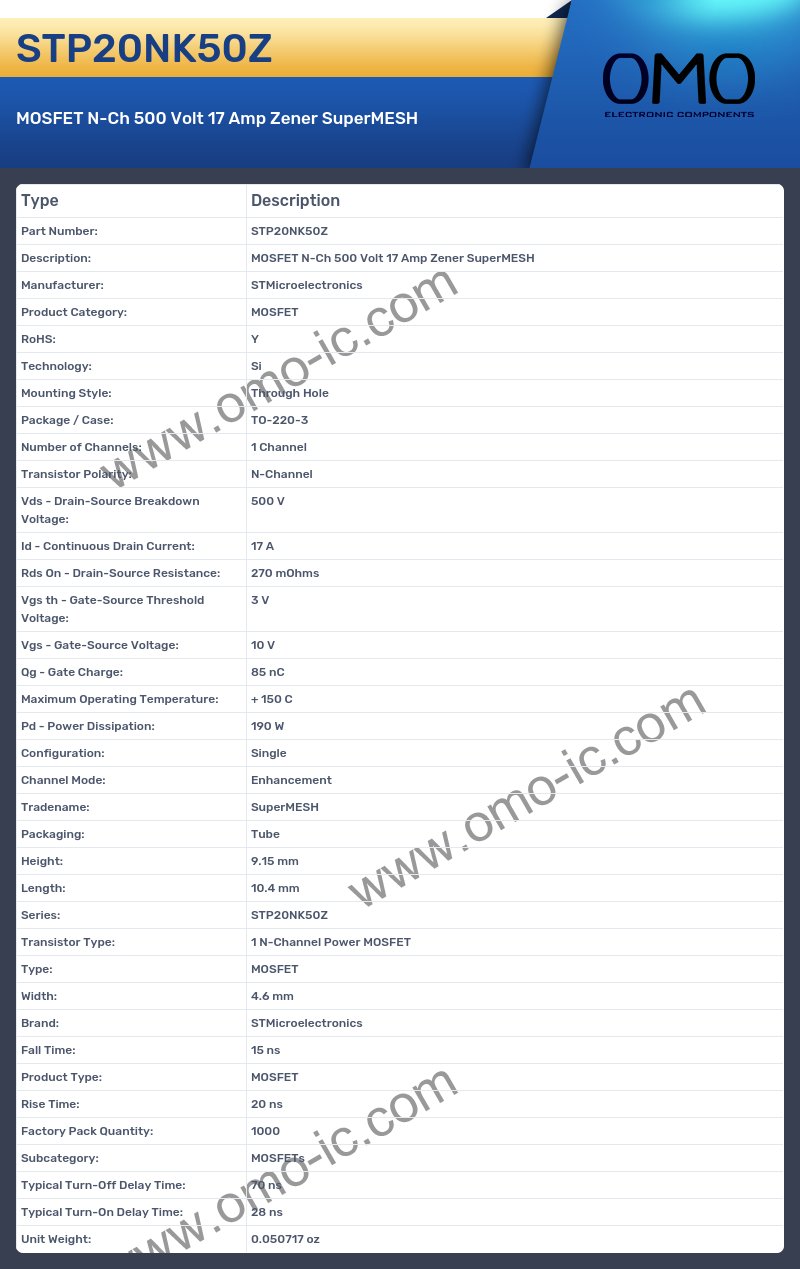

STP20NK50Z Image

STP20NK50Z Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 500 V
• Id - Continuous Drain Current: 17 A
• Rds On - Drain-Source Resistance: 270 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 85 nC
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 190 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: SuperMESH
• Packaging: Tube
• Height: 9.15 mm
• Length: 10.4 mm
• Series: STP20NK50Z
• Transistor Type: 1 N-Channel Power MOSFET
• Type: MOSFET
• Width: 4.6 mm
• Brand: STMicroelectronics
• Fall Time: 15 ns
• Product Type: MOSFET
• Rise Time: 20 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 70 ns
• Typical Turn-On Delay Time: 28 ns
• Unit Weight: 0.050717 oz
