STP80NF55-06FP

STP80NF55-06FP Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220FP-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 55 V 60 A continuous drain current Rds On value of 6.5 mOhms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 45 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Tube packaging for easy dispensing The height of the product is 9.3 mm. 10.4 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 65 ns fall time MOSFET product type Rise Time is 155 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 125 ns. The typical turn-on delay time is 27 ns. 1. 0.011640 oz of Unit Weight

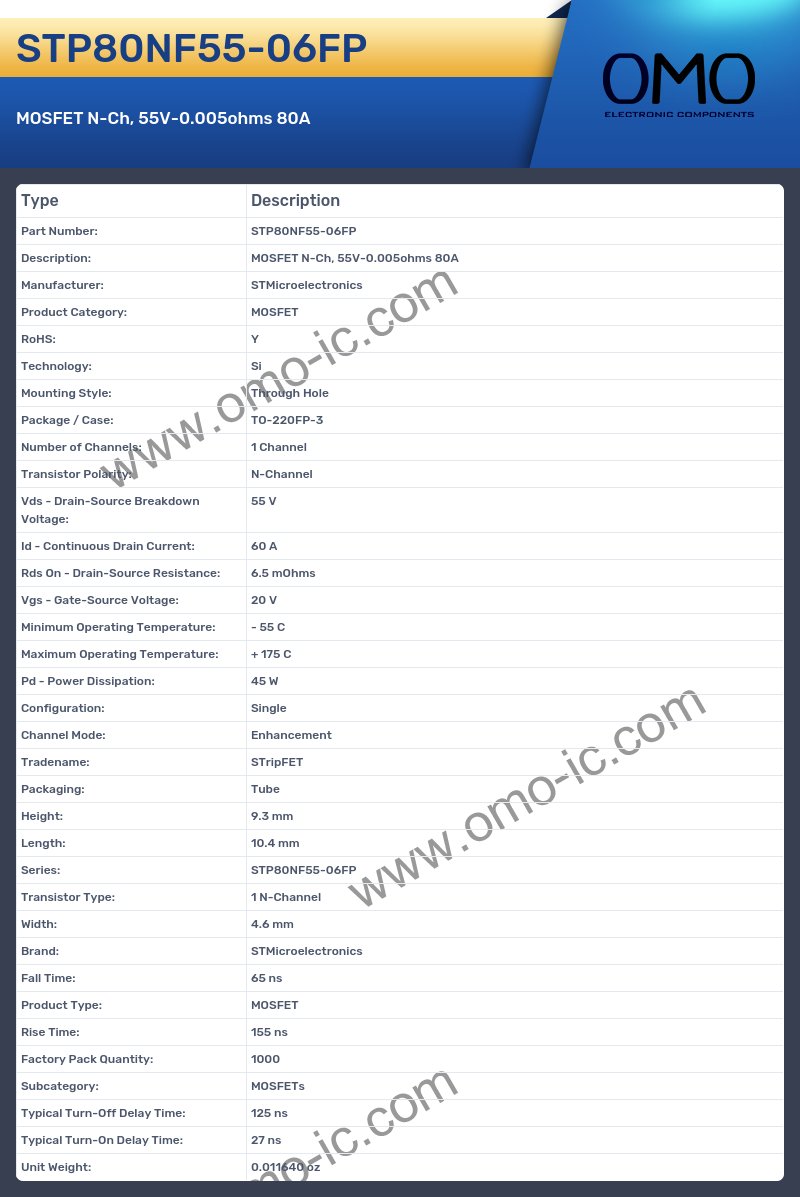

STP80NF55-06FP Image

STP80NF55-06FP Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220FP-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 55 V
• Id - Continuous Drain Current: 60 A
• Rds On - Drain-Source Resistance: 6.5 mOhms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 45 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Tube
• Height: 9.3 mm
• Length: 10.4 mm
• Series: STP80NF55-06FP
• Transistor Type: 1 N-Channel
• Width: 4.6 mm
• Brand: STMicroelectronics
• Fall Time: 65 ns
• Product Type: MOSFET
• Rise Time: 155 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 125 ns
• Typical Turn-On Delay Time: 27 ns
• Unit Weight: 0.011640 oz
