STP80NF70

STP80NF70 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 68 V 98 A continuous drain current Rds On value of 9.8 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 190 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Tube packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 75 ns fall time MOSFET product type Rise Time is 60 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 90 ns. The typical turn-on delay time is 17 ns. 1. 0.011640 oz of Unit Weight

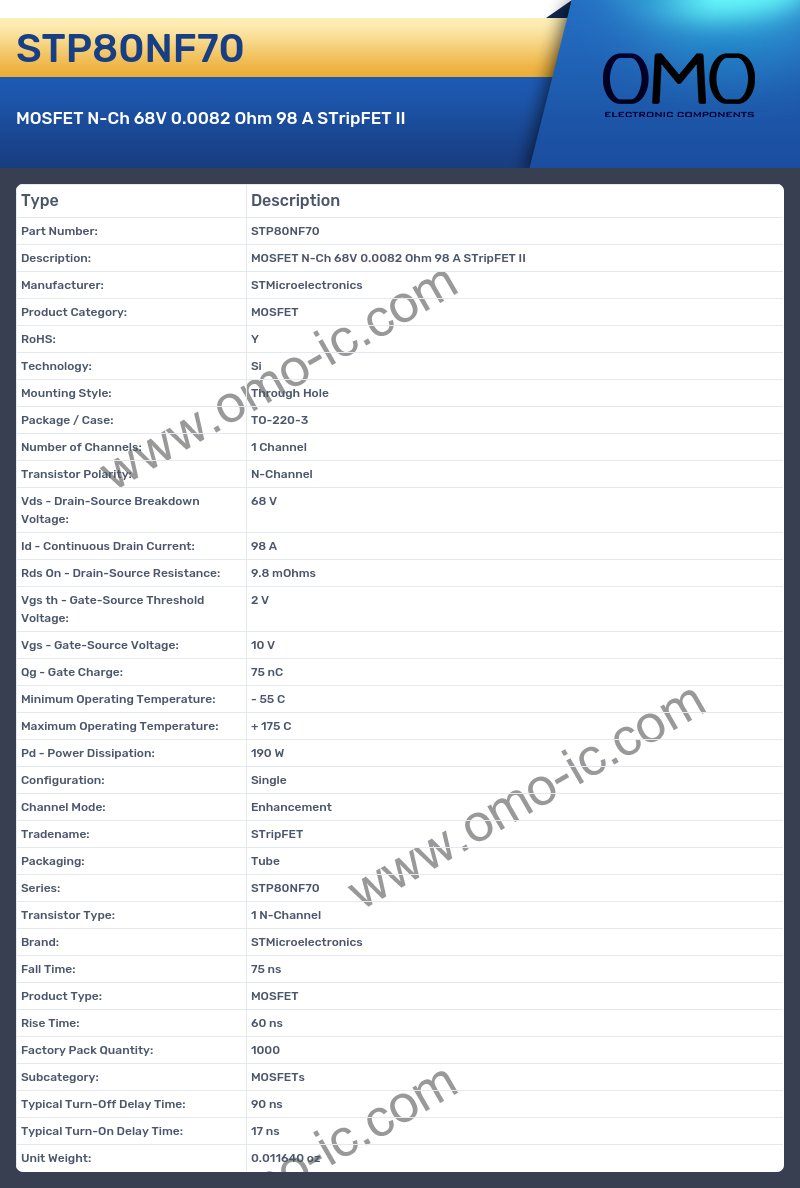

STP80NF70 Image

STP80NF70 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 68 V
• Id - Continuous Drain Current: 98 A
• Rds On - Drain-Source Resistance: 9.8 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 75 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 190 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Tube
• Series: STP80NF70
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 75 ns
• Product Type: MOSFET
• Rise Time: 60 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 90 ns
• Typical Turn-On Delay Time: 17 ns
• Unit Weight: 0.011640 oz
