STW56N60M2-4

STW56N60M2-4 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-247-4 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 52 A continuous drain current Rds On value of 45 mOhms Gate-Source Threshold Voltage Range: 2 V Gate-Source Voltage: 25 V The product can operate at a maximum temperature of + 150 C. 350 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's MDmesh is Blue Gecko. Tube packaging for easy dispensing The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 14 ns fall time MOSFET product type Rise Time is 26.5 ns. 600 of 100 MOSFETs as subcategory Turn-off delay time is 119 ns. The typical turn-on delay time is 18 ns.

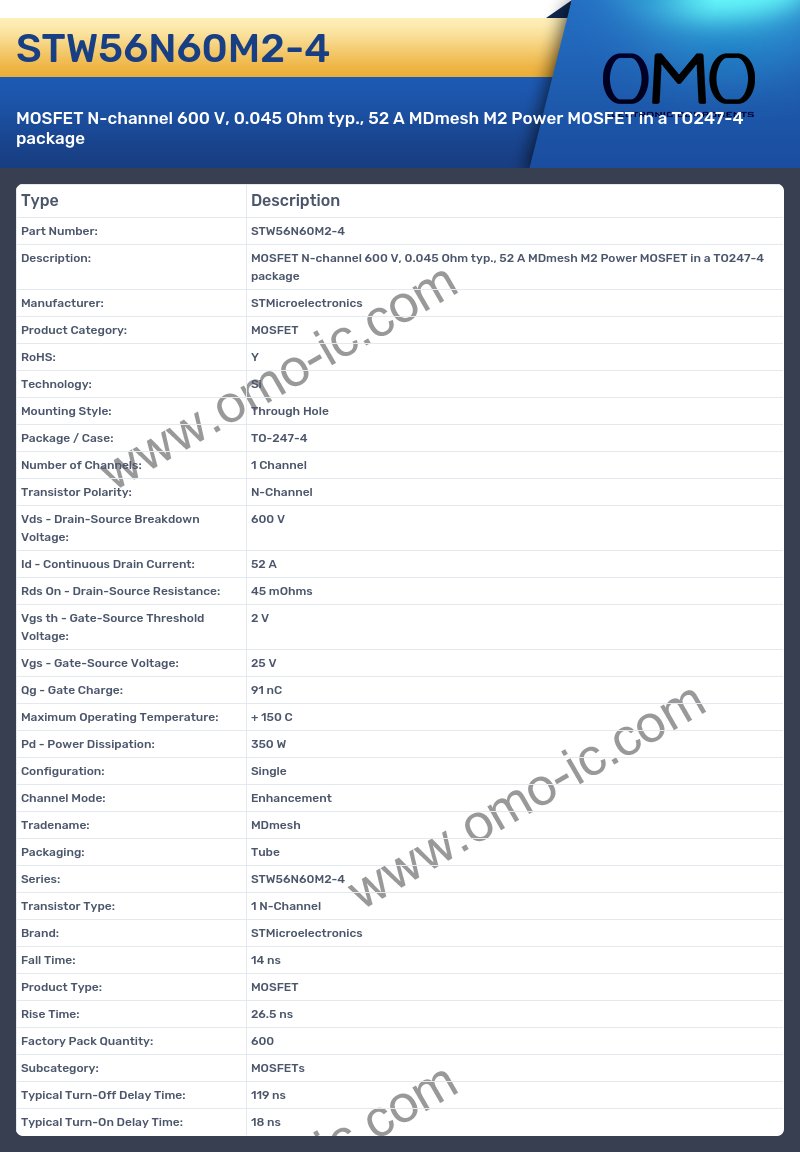

STW56N60M2-4 Image

STW56N60M2-4 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-247-4
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 52 A
• Rds On - Drain-Source Resistance: 45 mOhms
• Vgs th - Gate-Source Threshold Voltage: 2 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 91 nC
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 350 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: MDmesh
• Packaging: Tube
• Series: STW56N60M2-4
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 14 ns
• Product Type: MOSFET
• Rise Time: 26.5 ns
• Factory Pack Quantity: 600
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 119 ns
• Typical Turn-On Delay Time: 18 ns
