TL2842DR

TL2842DR Overview

This product is manufactured by Texas Instruments. Boost, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 500 kHz is 60 kHz. 5.5 V Input Voltage Output Voltage is 30 V Output current: 200 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. Reel packaging for easy dispensing Non-Isolated is the isolation property. Switching Controllers This device belongs to the Current Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 50 ns fall time Yes regarding Moisture Sensitivity 30 V operating supply voltage range Switching Controllers product type Rise Time is 50 ns. 2500 of 100 PMIC - Power Management ICs as subcategory 1. 0.004564 oz of Unit Weight

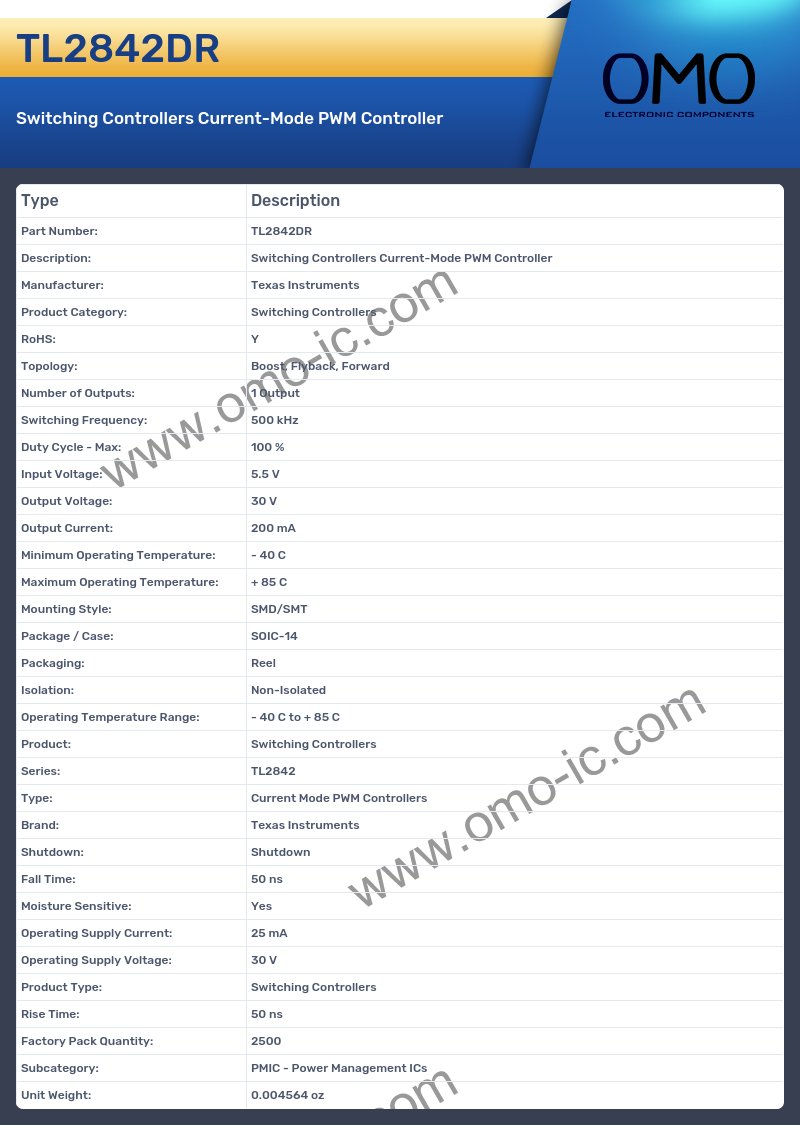

TL2842DR Image

TL2842DR Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 500 kHz
• Duty Cycle - Max: 100 %
• Input Voltage: 5.5 V
• Output Voltage: 30 V
• Output Current: 200 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Packaging: Reel
• Isolation: Non-Isolated
• Operating Temperature Range: - 40 C to + 85 C
• Product: Switching Controllers
• Series: TL2842
• Type: Current Mode PWM Controllers
• Brand: Texas Instruments
• Shutdown: Shutdown
• Fall Time: 50 ns
• Moisture Sensitive: Yes
• Operating Supply Current: 25 mA
• Operating Supply Voltage: 30 V
• Product Type: Switching Controllers
• Rise Time: 50 ns
• Factory Pack Quantity: 2500
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.004564 oz
