TLC070AIPE4

TLC070AIPE4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Supply Voltage - Max: 16 V This product is equipped with 1 Channel for efficient performance. This product has a 80 dB to 95 dB of 50 dB, ensuring reliable signal acquisition. This product has an 50 pA of 5 uA for precise signal processing. Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. This product does not have a Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Wideband Amplifier. The height of the product is 4.57 mm. 9.81 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.0006 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 8 V. +/- 2.25 V minimum dual supply voltage 4.5 V to 16 V, +/- 2.25 V to +/- 8 V operating supply voltage range 1200 mW Op Amps - Operational Amplifiers product type 50 of 100 Amplifier ICs as subcategory 1. 0.015535 oz of Unit Weight

TLC070AIPE4 Image

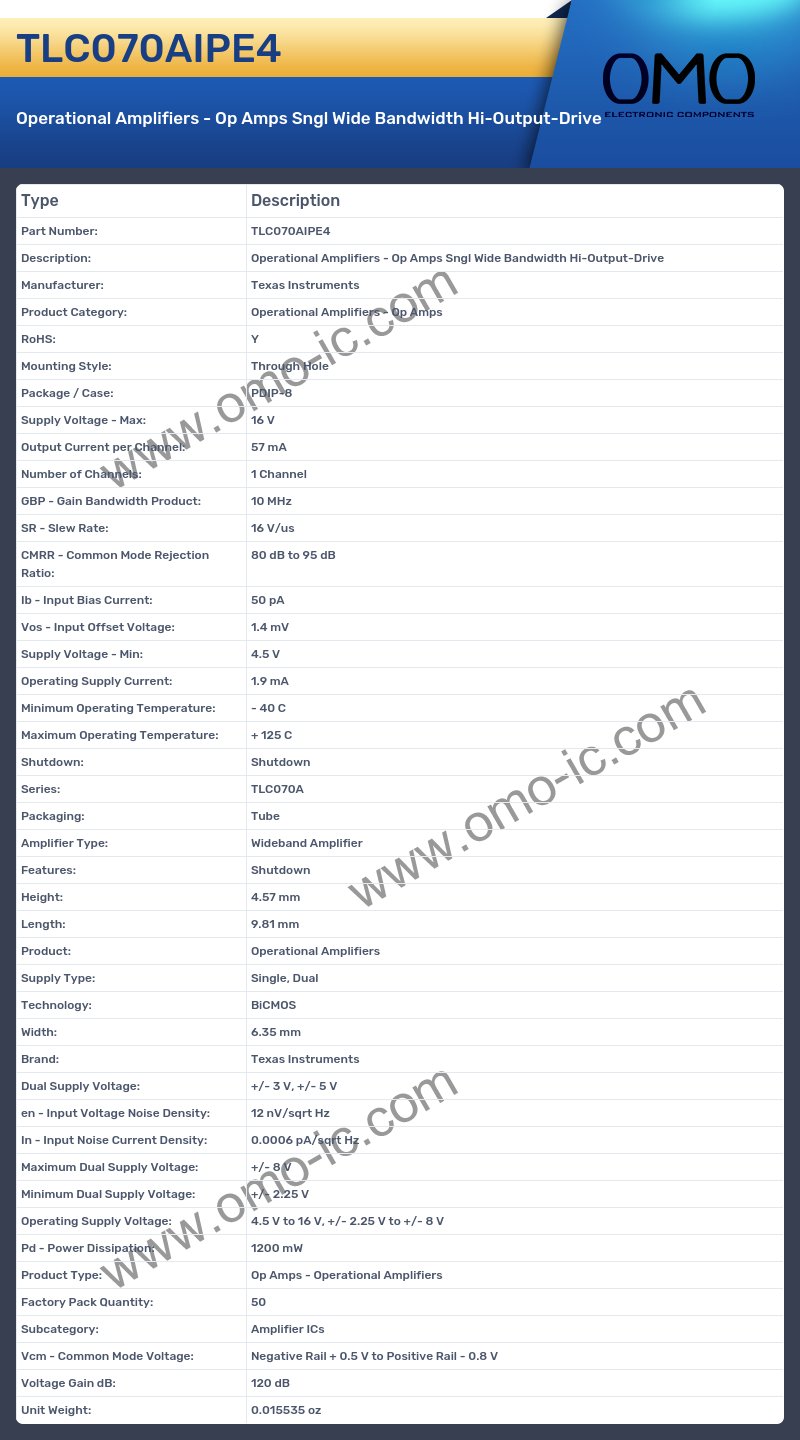

TLC070AIPE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Supply Voltage - Max: 16 V
• Output Current per Channel: 57 mA
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 10 MHz
• SR - Slew Rate: 16 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB to 95 dB
• Ib - Input Bias Current: 50 pA
• Vos - Input Offset Voltage: 1.4 mV
• Supply Voltage - Min: 4.5 V
• Operating Supply Current: 1.9 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Shutdown: Shutdown
• Series: TLC070A
• Packaging: Tube
• Amplifier Type: Wideband Amplifier
• Features: Shutdown
• Height: 4.57 mm
• Length: 9.81 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Technology: BiCMOS
• Width: 6.35 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• en - Input Voltage Noise Density: 12 nV/sqrt Hz
• In - Input Noise Current Density: 0.0006 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 8 V
• Minimum Dual Supply Voltage: +/- 2.25 V
• Operating Supply Voltage: 4.5 V to 16 V, +/- 2.25 V to +/- 8 V
• Pd - Power Dissipation: 1200 mW
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail + 0.5 V to Positive Rail - 0.8 V
• Voltage Gain dB: 120 dB
• Unit Weight: 0.015535 oz
