TLE2301INE

TLE2301INE Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. This product has a 70 dB to 97 dB of 50 dB, ensuring reliable signal acquisition. This product has an 450 nA of 5 uA for precise signal processing. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is Wideband Amplifier. The height of the product is 4.57 mm. 19.8 mm long The output type is Rail-to-Rail. Operational Amplifiers Supply Type: Dual Texas Instruments is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 20 V. +/- 4.5 V minimum dual supply voltage +/- 4.5 V to +/- 20 V operating supply voltage range 2075 mW Op Amps - Operational Amplifiers product type 25 of 100 Amplifier ICs as subcategory 1. 0.033570 oz of Unit Weight

TLE2301INE Image

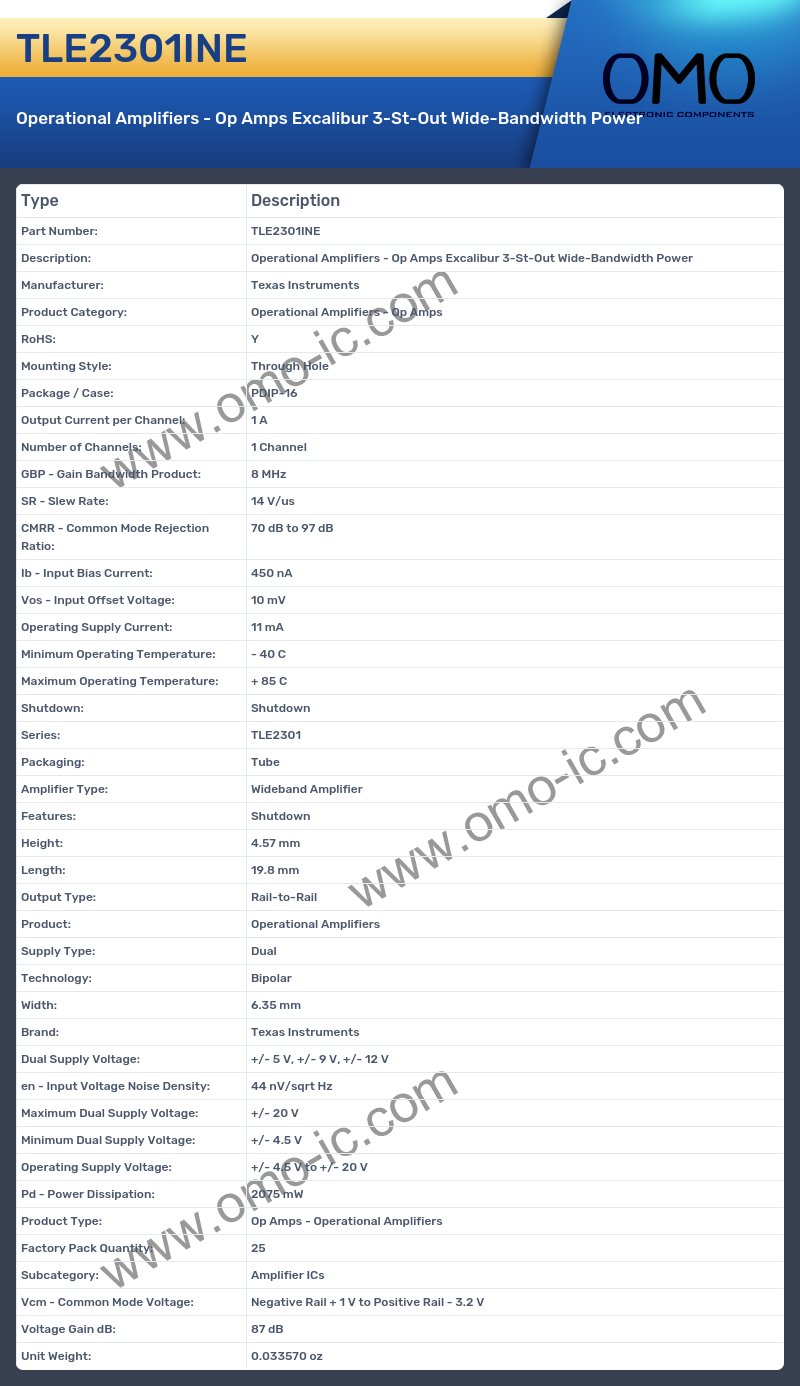

TLE2301INE Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Output Current per Channel: 1 A
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 8 MHz
• SR - Slew Rate: 14 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB to 97 dB
• Ib - Input Bias Current: 450 nA
• Vos - Input Offset Voltage: 10 mV
• Operating Supply Current: 11 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: Shutdown
• Series: TLE2301
• Packaging: Tube
• Amplifier Type: Wideband Amplifier
• Features: Shutdown
• Height: 4.57 mm
• Length: 19.8 mm
• Output Type: Rail-to-Rail
• Product: Operational Amplifiers
• Supply Type: Dual
• Technology: Bipolar
• Width: 6.35 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V
• en - Input Voltage Noise Density: 44 nV/sqrt Hz
• Maximum Dual Supply Voltage: +/- 20 V
• Minimum Dual Supply Voltage: +/- 4.5 V
• Operating Supply Voltage: +/- 4.5 V to +/- 20 V
• Pd - Power Dissipation: 2075 mW
• Product Type: Op Amps - Operational Amplifiers
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: Negative Rail + 1 V to Positive Rail - 3.2 V
• Voltage Gain dB: 87 dB
• Unit Weight: 0.033570 oz
