TLV3704CDG4

TLV3704CDG4 Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-14 package/case type is utilized by this product. The comparator type of this product is General Purpose for versatile use. This product is equipped with 4 Channel for efficient performance. The output type is Push-Pull. This product has an 100 pA of 5 uA for precise signal processing. Supply Voltage - Max: 16 V Supply Voltage - Min: 2.5 V 36 us response time The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. Rail-to-Rail input type 8.65 mm long Analog Comparators Supply Type: Single, Dual This device belongs to the Nano Power Comparator type. Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. This product has a 88 dB of 50 dB, ensuring reliable signal acquisition. 1. The maximum dual supply voltage is +/- 8 V. 1.25 V minimum dual supply voltage 2.5 V to 16 V operating supply voltage range 1022 mW Analog Comparators product type This product has a 105 dB of 50 dB, providing reliable power supply noise rejection. 50 of 100 Amplifier ICs as subcategory 1. 0.004318 oz of Unit Weight

TLV3704CDG4 Image

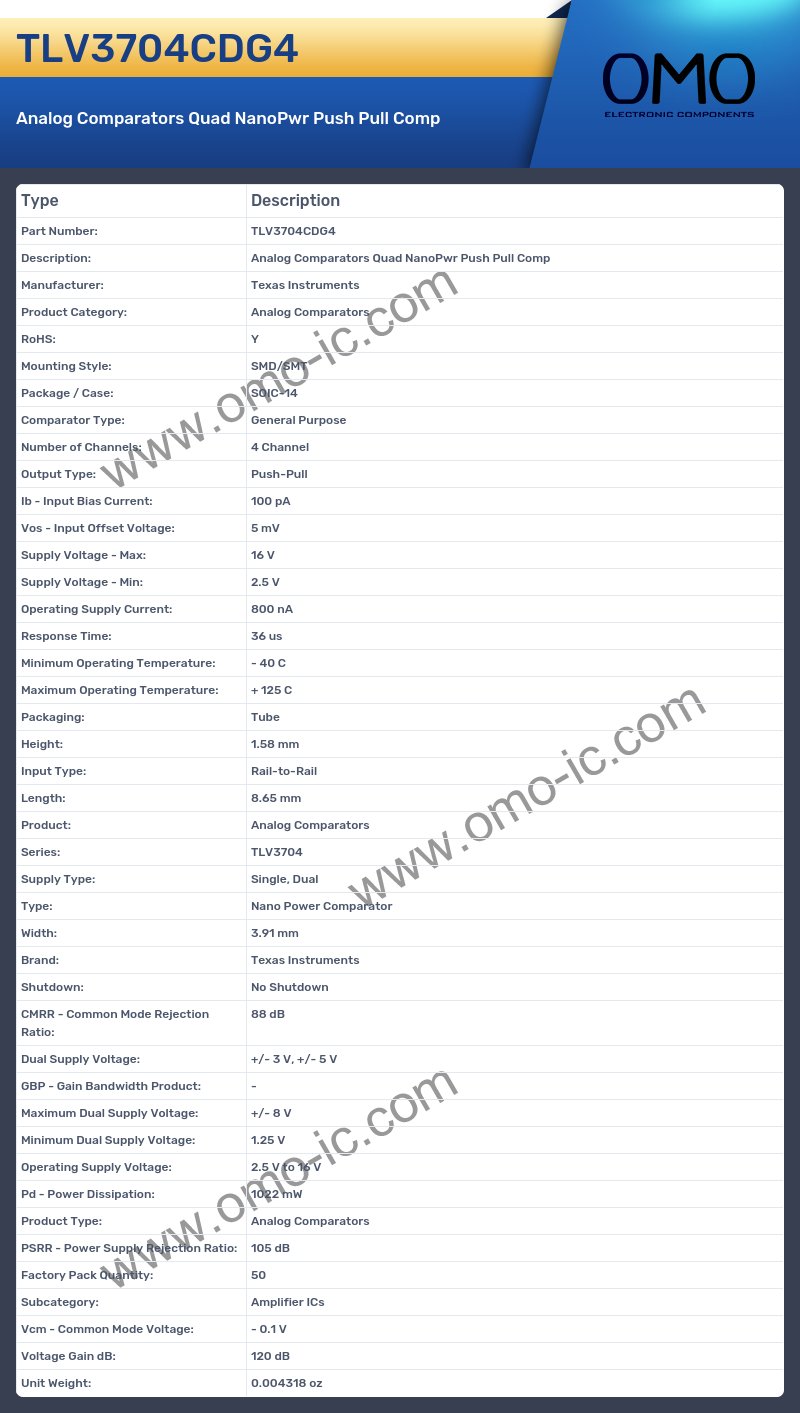

TLV3704CDG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog Comparators
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: SOIC-14
• Comparator Type: General Purpose
• Number of Channels: 4 Channel
• Output Type: Push-Pull
• Ib - Input Bias Current: 100 pA
• Vos - Input Offset Voltage: 5 mV
• Supply Voltage - Max: 16 V
• Supply Voltage - Min: 2.5 V
• Operating Supply Current: 800 nA
• Response Time: 36 us
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 1.58 mm
• Input Type: Rail-to-Rail
• Length: 8.65 mm
• Product: Analog Comparators
• Series: TLV3704
• Supply Type: Single, Dual
• Type: Nano Power Comparator
• Width: 3.91 mm
• Brand: Texas Instruments
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 88 dB
• Dual Supply Voltage: +/- 3 V, +/- 5 V
• GBP - Gain Bandwidth Product: -
• Maximum Dual Supply Voltage: +/- 8 V
• Minimum Dual Supply Voltage: 1.25 V
• Operating Supply Voltage: 2.5 V to 16 V
• Pd - Power Dissipation: 1022 mW
• Product Type: Analog Comparators
• PSRR - Power Supply Rejection Ratio: 105 dB
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: - 0.1 V
• Voltage Gain dB: 120 dB
• Unit Weight: 0.004318 oz
